Inside the Design
This powerful football field sound system delivers exceptional coverage and sound quality for foreground music and clear intelligible vocals for play-by-plays, announcements and paging. This sound system for football fields comes with two 90° x 90° horn loudspeakers, two 90° x 40° horn loudspeakers, two low frequency horn subs, and a 12" three-way horn-loaded coaxial long-throw loudspeaker for directional sound distribution. Also included is a Bluetooth mixer amplifier to play music through any Bluetooth enabled device, a wireless handheld and headworn stadium microphone with a 300' operating range for the field and a wired handheld microphone for the press box. Ideal for applications such as football, soccer, track and field, lacrosse and other stadium school events, this high output press box sound system will cover a crowd of more than 3,000 fans. Gone are the days of incomprehensible speech and wimpy music systems, the spectators and players will truly be impressed with this amazing sounding high-performance football stadium sound system for years to come.
Sound System Features:
- Excellent voice reproduction for clear-cut play-by-plays and announcements

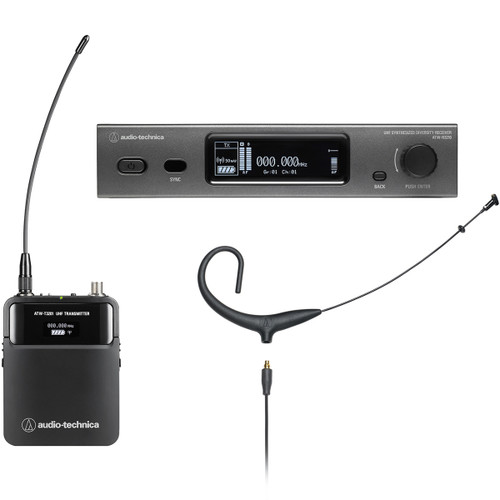

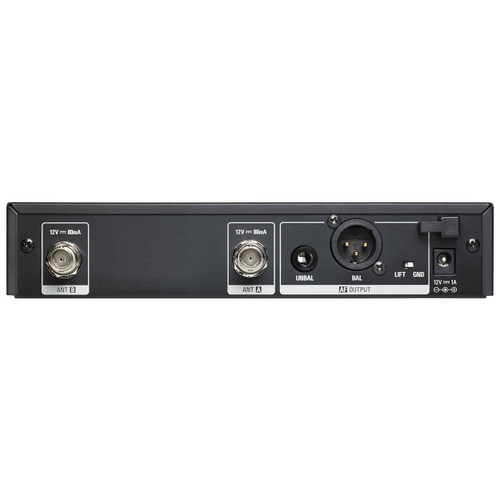

- Handheld and headworn wireless mics with 300' operating range
- Incredible foreground music reproduction with high-SPL of 129 dB
- Durable all-weather AtlasIED and Community loudspeakers with wide coverage
- Bluetooth mixer amplifier to play music from any Bluetooth enabled device

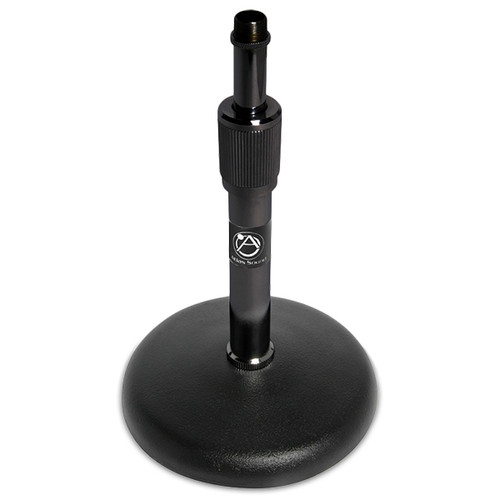

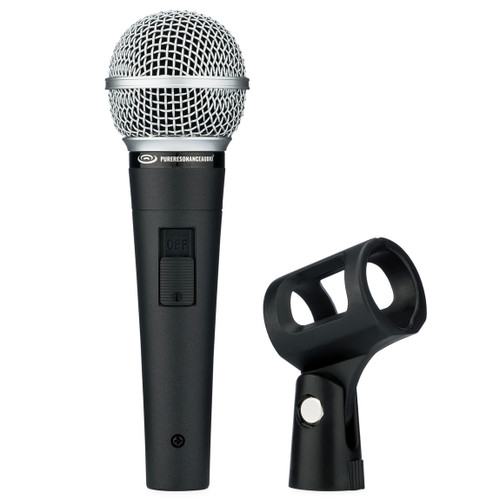

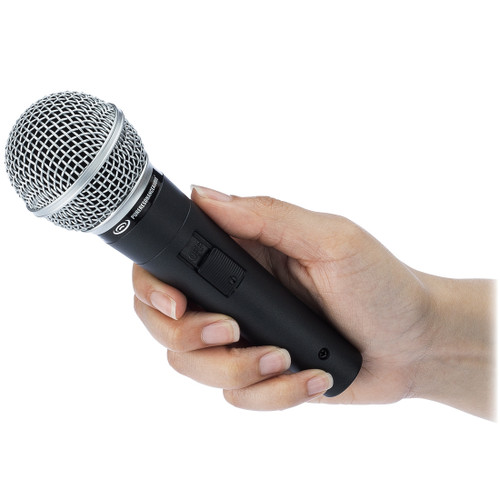

- Ultra Clear handheld announcement mic with a quiet On/Off switch and desktop stand
About the System Components
AtlasIED FS12T 12" All-Weather Horn Loudspeakers
The AtlasIED FS12T two-way, full-range speaker systems are engineered to provide excellent voice and music reproduction in applications requiring weather resistance. Designed to withstand exposure to environmental conditions and provide long-lasting reliability. It incorporates a 12" LF driver and 1" exit HF compression driver concentrically mounted to a high-directivity waveguide. The unit is constructed using molded linear low-density polyethylene (LLDPE), creating an incredibly strong yet lightweight enclosure. The unit includes a stainless steel U-bracket and fly-points allowing for easy mounting. Input is via an integrated 70.7V transformer with low insertion loss and full frequency response with power taps up to 400-watts including an 4½ bypass. The transformer is discretely mounted under the rear cover for weather protection. The finish is neutral "battle ship grey" that is UV resistant and allows for years of durability.
Community R.5HP 12" 3-Way Horn-Loaded Coaxial Loudspeaker
The Community R.5HP is a three-way horn-loaded weather-resistant loudspeaker system engineered to deliver maximum intelligibility from a compact 16" cube enclosure. By packaging Community's well-known M200 midrange compression driver coaxially within the mouth of the 12" LF horn, the R.5HP becomes an exceptionally powerful tool for voice announcement systems, while a 1" exit non-metallic diaphragm UC1 HF driver handles the top end. The result is effortless vocal projection with high-frequency clarity that carries the length of the field, without the "honky" sound of traditional re-entrant paging horns. A tightly focused 60° x 40° pattern with directivity control down to 630 Hz aims sound precisely where it is needed and keeps energy off neighboring properties. The rotomolded LLDPE enclosure, weather-treated drivers and three-layer WeatherStop™ grille carry an IP55W rating, and the system is backed by a five-year product warranty and fifteen-year enclosure warranty.

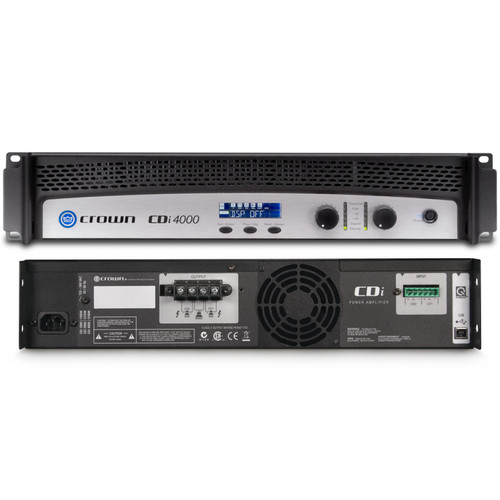

Crown CDi 4000 Power Amplifier
The Crown CDi 4000 Power Amplifiers are professional tools designed and built for installed sound applications. The CDi 4000 power amplifier features an intuitive front-panel LCD screen to guide installers through their configurations. CDi amplifiers also offer onboard DSP for loudspeaker signal processing. Other features include a switch-mode universal power supply, useful function indicators, proportional-speed fan-assisted cooling, removable Phoenix-style inputs, barrier strip outputs for low-Z or 70V/140V loads, short-circuit protection and more.

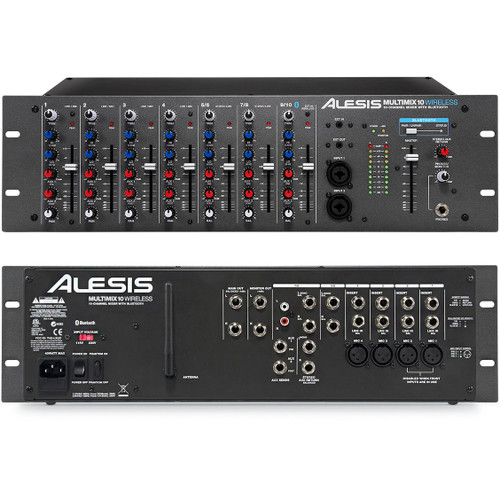

Alesis MultiMix 10 Wireless Bluetooth Mixer
The Alesis MultiMix 10 Wireless rackmount mixer is redefining the rackmount mixer category. Compact and complete, the MultiMix 10 Wireless delivers ten-channel mixing in a neat 3U package that is perfect for smaller clubs and venues, houses of worship, as well as mobile/traveling systems. The MultiMix 10 Wireless benefits from an array of easily accessible front panel jacks that enhance the versatility and usefulness of this generously equipped mixer. Topping off the feature list is a channel dedicated to receiving the stereo playback from any Bluetooth device.
