Inside the Design
This powerful outdoor stadium sound system for soccer fields provides crystal clear music and announcements over a large area. This outdoor PA system for soccer fields comes with four Community 90° x 60° speakers for stadiums designed to withstand long-term exposure to tough, environmental conditions and to provide musical performance normally only associated with indoor loudspeakers. Also included is a Bluetooth mixer amplifier, a wireless handheld, lapel and headworn microphone with a 300' operating range for the field and a wired handheld microphone for the announcer. Ideal for applications such as soccer fields, soccer parks, lacrosse and other multi-sport complexes, this high output sound system will cover a crowd of more than 750. Gone are the days of incomprehensible speech and inadequate music systems, the spectators and players will be impressed with this great sounding high-output sound system for years to come.
Sound System Features:
- Simple to operate and provides excellent musicality and vocal intelligibility
- True Diversity wireless handheld and lapel microphone with 300' operating range
- Long-lasting speakers that can withstand long-term exposure to tough, environmental conditions for years to come
- Each loudspeaker provides wide 90° x 60° coverage and 130 dB SPL to provide audio throughout the field(s)
- High-quality audio for announcements, play-by-plays, paging and music

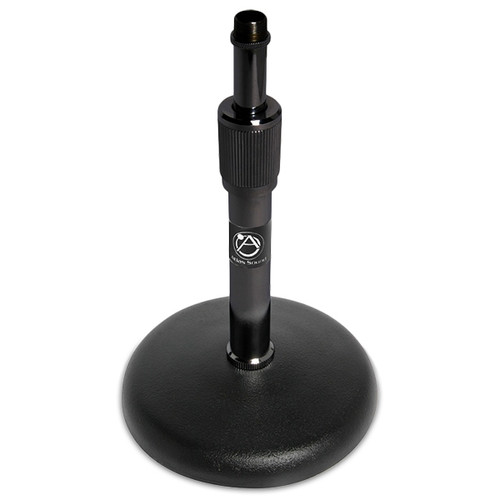

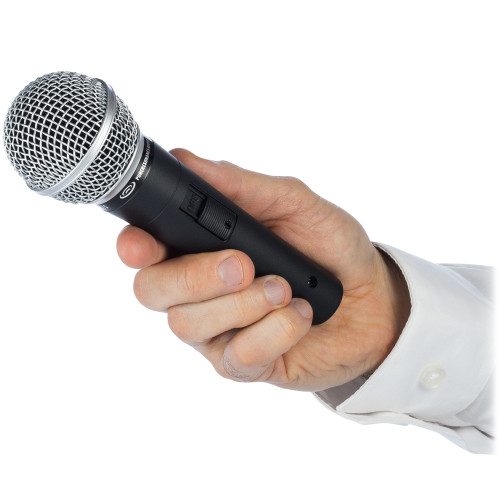

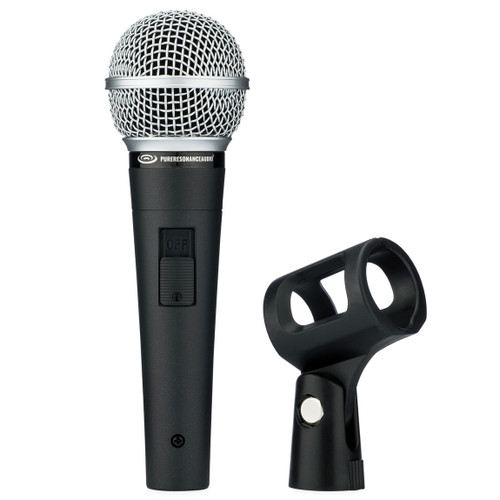

- Ultra Clear handheld announcement mic with a quiet On/Off switch and desktop stand
- Bluetooth mixer amplifier to play music from any Bluetooth enabled device
About the System Components

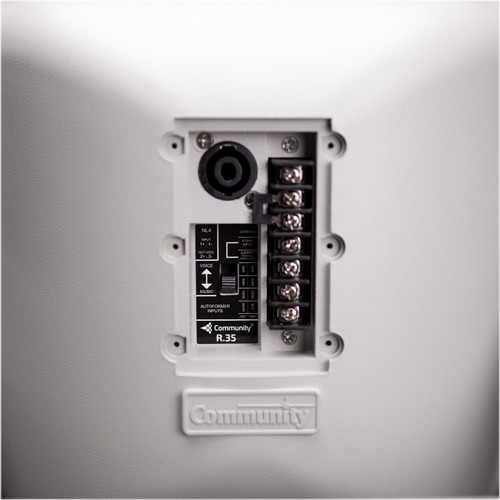

Community R.35-3896 8" Weather Resistant Loudspeaker
The Community R.35-3896 8" three-way horn loaded loudspeaker is housed in the same size enclosure as the 10" R.35COAX. It has a triaxial 8" carbon ring cone loudspeaker featuring Community's exclusive MultiSource Waveguide technology which adeptly integrates the output from dual midrange compression drivers and a 1" exit HF compression driver into a single coherent source. Fully passive, it is voiced for flat musical reproduction without EQ and delivers class-leading SPL levels for a loudspeaker of its size.
Crown CDi 2|600 DriveCore Power Amplifier
The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost. Using technology derived from their flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 2|600 offers streamlined functionality to work in almost any medium sized installation such as cinema, houses of worship, bars, lounges, and more. Designed for ease-of-use in a variety of applications, the 2|600 is a 2-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer.

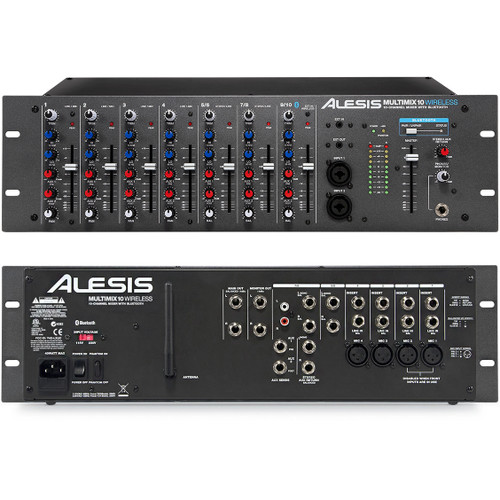

ALESIS MULTIMIX 10 BLUETOOTH RACKMOUNT MIXER
The Alesis MultiMix 10 Wireless rackmount mixer is redefining the rackmount mixer category. Compact and complete, the MultiMix 10 Wireless delivers ten-channel mixing in a neat 3U package that is perfect for smaller clubs and venues, houses of worship, as well as mobile/traveling systems.
Audix AP42 C210 Handheld and Lavalier Wireless System
The Audix AP42 C210 is a dual-channel wireless system combining the OM2 handheld transmitter with the ADX10 cardioid lavalier system. This is a very cost-effective and efficient solution for combining the convenience of a hands-free lavalier with the flexibility of a handheld microphone. The package is ideal for presentations, meetings, or events where the lead speaker remains in control while the handheld microphone is passed around either in the audience or on stage.
