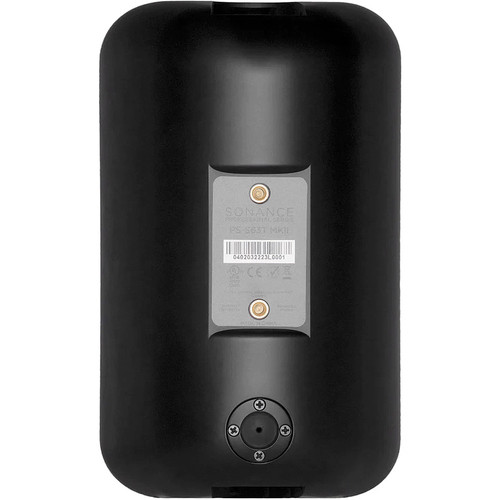

Sonance PS-S63T MKII Professional Series 6.5" 2-Way 120W 70V/100V Surface Mount Loudspeakers - Black Pair

Sonance PS-S63T MKII 6.5-inch Surface Mount Loudspeakers

More Views

Sonance PS-S63T MKII Professional Series 6.5" 2-Way 120W 70V/100V Surface Mount Loudspeakers - Black Pair

Part # PS-S63T-MKII-BL

Model # PS-S63T MKII

The Sonance Professional Series PS‑S63T MKII black pair delivers clear, balanced sound with 6.5" woofers and 1" soft dome tweeters. Designed for commercial spaces, these 120W 70V/100V surface-mount speakers provide consistent professional-grade performance in a sleek black finish.

Availability:

Qty:

Description

Details

Sonance PS-S63T MKII 6.5-Inch Black Surface Mount Loudspeakers

The PS‑S63T MKII is a pair of 6.5" 2-way surface-mount loudspeakers engineered for clear, balanced sound and reliable performance in commercial environments. Each speaker features a high-excursion polypropylene woofer and 1" soft dome tweeter, delivering smooth off-axis response, class-leading sensitivity, and 120W power handling for 8Ω or 70V/100V systems.

Built for durability, the PS‑S63T MKII comes in a sleek black finish that complements any interior. Its IP45-rated ABS enclosure and corrosion-resistant powder-coated aluminum grille ensure long-term reliability. The patented FastMount bracket system allows 180° pivoting for wall or ceiling mounting, and front-mounted connectors and tap selectors enable clean, professional installation.

Ideal for retail, restaurants, galleries, hotels, houses of worship, and educational facilities, this black pair delivers consistent, professional-grade sound with a subtle, unobtrusive appearance. Its uniform voicing ensures reliable performance across multiple installations.

Features

Features

Pair of professional black surface-mount loudspeakers for commercial audio systems
6.5-inch high-excursion polypropylene woofer delivers clear, balanced sound
Chambered 1-inch soft dome tweeter ensures smooth high-frequency response
Sleek, paintable black finish blends into modern interiors
IP45-rated ABS enclosure with corrosion-resistant powder-coated aluminum grille
Patented FastMount bracket system allows 180° pivoting for wall or ceiling mounting
Front-mounted cable connectors and tap selectors for clean, professional installation
Supports 8Ω, 70V, and 100V distributed audio systems
Consistent voicing for uniform performance across multiple installations

Specification

Frequency Range (-10 dB)	49 Hz - 25 kHz
Frequency Range (-3 dB)	65 Hz - 20 kHz
Power Capacity	120 Watts Continuous Program Power 60 Watts Continuous Pink Noise
Nominal Sensitivity	88 dB
Nominal Coverage Angle	90° x 90° coverage
Directivity Factor (Q)	6.5
Directivity (DI)	7.9 dB
Rated Maximum SPL	108 dB @ 1 meter (3.3 feet) average, 116 dB peak
Rated Impedance	8 Ohms nominal, 6 Ohms minimum
Crossover Point	2750 Hz
LF Driver	6.5" (165 mm) Polypropylene Cone, Butyl Rubber Surround
HF Driver	1" (25 mm) Cloth Dome, Ferrofluid cooled
Transformer Taps	70V: 60W, 30W, 15W and 7.5W 100V: 60W, 30W and 15W
Input Connectors	Front-mounted four pin, Euroblock with loop output connections
Certifications	UL 1480, UL 2239, NFPA 70, Mil Spec 810, IEC 529
Mounting Bracket	U-Bracket with Sonance FastMount
Grille	Powder Coated Aluminum Friction Fit
Environmental	Conforms to MIL-STD-810 for humidity, salt spray, temperature, IEC 529
Dimensions (H x W x D)	12.14" (309 mm) x 7.51" (191 mm) x 6.86" (174 mm)
Net Weight	22.86 lbs (10.36 kg)
Shipping Weight	31.26 lbs (14.18 kg)
