Sonance PS-S83WT MKII Professional Series 8" 200W 70V/100V Surface Mount Woofer - White

Description

Details

Sonance PS-S83WT MKII 8-Inch White Surface Mount Woofer

The PS-S83WT MKII is a high-performance 8" surface-mount woofer engineered to extend low-frequency response and deliver exceptional bass clarity in commercial environments. Part of Sonance's acclaimed Professional Series, this white surface-mount woofer combines power, precision, and durability for seamless integration with full-range models. Its ultra-high-excursion 8" polypropylene cone driver ensures rich, detailed bass and consistent low-end performance across 8Ω and 70V/100V systems.

Built to withstand demanding conditions, the PS-S83WT MKII features an IP45-rated enclosure crafted from weather-resistant materials and finished in a clean, paintable white coating to blend easily into any setting. The corrosion-resistant powder-coated aluminum grille and heavy-duty voice coil ensure long-term reliability, even in challenging installations.

Installation is simple and secure with the patented FastMount bracket system, allowing easy positioning and front access to the cable connector and tap selector for a clean, streamlined setup. Ideal for enhancing audio depth in venues such as restaurants, retail spaces, hotels, and educational facilities, the PS-S83WT MKII delivers smooth, powerful bass that complements other Professional Series loudspeakers with consistent voicing and superior sound quality.

Features

Features

Professional 8" surface-mount woofer for commercial audio systems
High-excursion polypropylene woofer delivers deep, controlled bass
Paintable white finish blends with modern architectural designs
IP45-rated enclosure for reliable indoor and outdoor performance
FastMount bracket system enables quick, secure installation
Front-mounted cable connector and transformer tap selector
Corrosion-resistant powder-coated aluminum grille for durability
Supports 70V/100V distributed audio and 8Ω low-impedance systems
UL1480 and UL2239 certified for commercial safety compliance
Consistent voicing ensures seamless integration with Sonance Professional Series speakers

Specification

Frequency Range (-10 dB)	32 Hz - 300 Hz
Frequency Range (-3 dB)	50 Hz - 150 Hz
Power Capacity	200 Watts Continuous Program Power 125 Watts Continuous Pink Noise
Nominal Sensitivity	88 dB
Nominal Coverage Angle	180° x 180° coverage
Rated Maximum SPL	110 dB @ 1 meter (3.3 feet) average, 116 dB peak
Rated Impedance	8 Ohms nominal, 6 Ohms minimum
Crossover Point	150 Hz

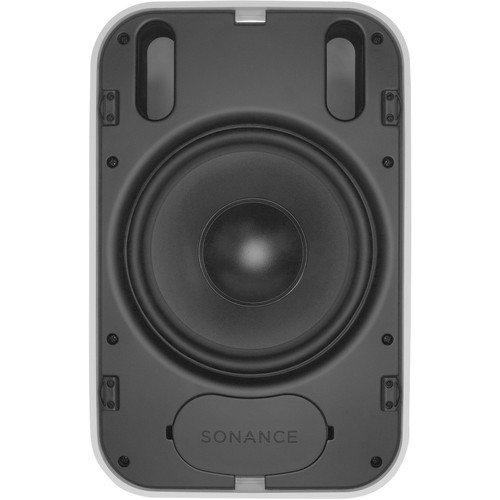

LF Driver	8" (203 mm) Polypropylene Cone, Butyl Rubber Surround
Transformer Taps	70V: 120W, 60W, 30W and 15W 100V: 120W, 60W and 30W
Input Connectors	Front-mounted four pin, Euroblock with loop output connections
Certifications	UL 1480, UL 2239, NFPA 70, Mil Spec 810, IEC 529
Mounting Bracket	U-Bracket with Sonance FastMount
Grille	Powder Coated Aluminum Friction Fit
Environmental	Conforms to MIL-STD-810 for humidity, salt spray, temperature, IEC 529
Dimensions (H x W x D)	14.02" (356 mm) x 9.01" (229 mm) x 8.58" (218 mm)
Net Weight	16.08 lbs (7.62 kg)
Shipping Weight	21.49 lbs (9.75 kg)
