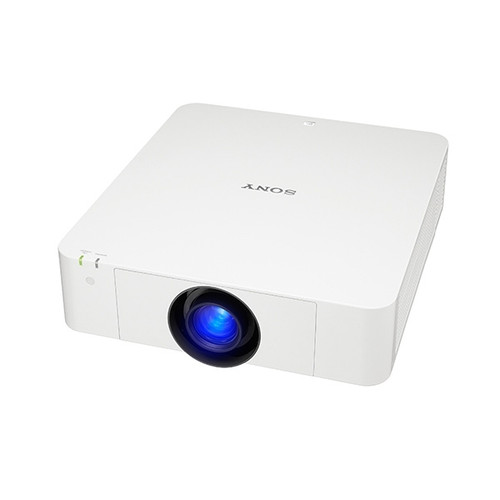

SONY VPL-FHZ66 6100 Lumens WUXGA Laser Light Source Projector (Discontinued)
Usually arrives in 5-9 business days.
Bright, beautiful images with low running costs, minimal maintenance and flexible installation
The VPL-FHZ61 laser projector is ideal for a wide range of business, education and entertainment applications. The powerful Z-Phosphor laser light source is teamed with Sony's advanced BrightEra 3LCD projection engine to deliver extremely bright, detail-packed WUXGA resolution images with generous 5100 lumens brightness and rich, stable colors. Constant Bright maintains the same brightness throughout the 20,000 hours recommended life span.
The laser light source allows up to 20,000 hours* of virtually zero-maintenance operation without the worry of sudden lamp failures. A new automated filter system cuts the hassle of regular dust cleaning. Near-zero maintenance needs are complemented by a range of energy-saving features, significantly driving down total lifetime ownership costs.
Offering a stylish new blend-in design, tidy cable management and low fan noise, the VPL-FHZ61 fits smoothly into almost any environment – from academic institutions, corporate, medical training and public sector organizations to visitor attractions and retail spaces. Seamlessly blend images from multiple projectors to create super-sized displays, or accurately project proportioned images onto angled or curved surfaces. Mount the projector at any angle, even on its side or upside down. Setup is easier than ever with a friendly new installation menu.
*Actual hours may vary depending on usage environment.
| Screen Size | 40'' to 600'' (1.02 m to 15.24 m) (measured diagonally) |
|---|---|
| Light Output | Mode: Standard - 5100 lm Mode: Middle - 3500 lm |
| Color Light Output | Mode: Standard - 5100 lm Mode: Middle - 3500 lm |
| Projection Lens | Focus: Powered Zoom - Powered/Manual: Powered Zoom - Ratio: Approx. x 1.6 Throw Ratio: 1.39:1 to 2.23:1 Lens shift - Powered/Manual: Powered Lens shift - Range Vertical: -5%, +60% Lens shift - Range Horizontal: +/- 32% |
| Display Resolution | Computer signal input: Maximum display resolution: 1920 x 1200 dots *4 Video signal input: NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i The following items are available for digital signal (HDMI input) only; 1080/60P, 1080/50p, 1080/24p |
| Input (Computer/Video/Control) | INPUT A: RGB / Y PB PR input: Mini D-sub 15 pin F, Audio input: Stereo mini jack INPUT B: DVI input: DVI-D 24-pin, HDCP support, Audio input: Shared with input A INPUT C: HDMI input: HDMI 19-pin, HDCP support, Audio input: HDMI audio support INPUT D: HDBaseT interface: RJ45, 4 play (Video, Audio, LAN, Control) Video input connector: BNC, Audio input: Shared with input A |
| Output (Computer/Video/Control) | OUTPUT A: Monitor output for Input A Connector: Mini D-sub 15-pin F, Audio output: Stereo mini jack OUTPUT B: Monitor output for Input B Connector: DVI-D 24-pin (single link), HDCP not supported, Audio output, Monitor out: Stereo mini jack REMOTE: D-sub 9-pin (male) / RS232C LAN: RJ45, 10BASE-T/100BASE-TX IR (Control S): Stereo mini jack, Plug in power DC5V |
| Power Requirements | AC 100 V to 240 V, 4.5 A to 1.9 A, 50 Hz / 60 Hz |
| Supplied Accessories | Remote commander: RM-PJ27 |
| Optional Accessories | Projection Lens: VPLL-3003 / 3007 / Z3009 / Z3010 / Z3024 / Z3032 |
| Dimensions (H x W x D) (without protrusions) | 6.65" (169 mm) x 18.11" (460 mm) x 20.28" (515 mm) |
| Weight | 34 lbs (16 kg) |
