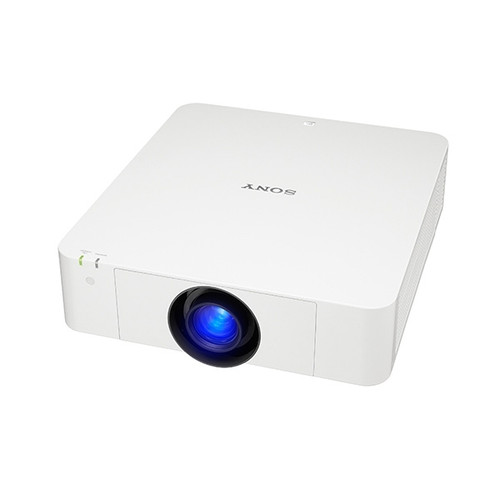

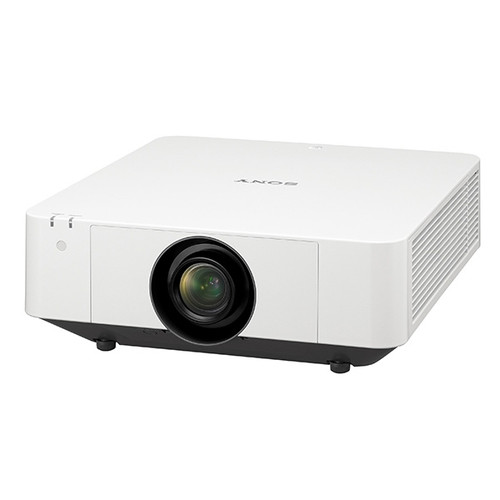

SONY VPL-FHZ66 6100 Lumens WUXGA Laser Light Source Projector (Discontinued)

Part #:
VPLFHZ66/W
Model #:
VPL-FHZ66
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The SONY VPL-FHZ66 laser projector creates bright, beautiful images with low running costs, minimal maintenance and flexible installation, ideal for a wide range of business, education and entertainment applications.

Description

Bright, beautiful images with low running costs, minimal maintenance and flexible installation

The VPL-FHZ66 laser projector is ideal for a wide range of business, education and entertainment applications. The powerful Z-Phosphor laser light source is teamed with Sony's advanced BrightEra 3LCD projection engine to deliver extremely bright, detail-packed WUXGA resolution images with generous 6100 lumens brightness and rich, stable colors. Constant Bright maintains the same brightness throughout the 20,000 hours recommended life span.

The laser light source allows up to 20,000 hours* of virtually zero maintenance operation without the worry of sudden lamp failures. A new automated filter system cuts the hassle of regular dust cleaning. Near-zero maintenance needs are complemented by a range of energy-saving feature, significantly driving down total lifetime ownership costs.

Offering a stylish new blend-in design, tidy cable management, and low fan noise, the VPL-FHZ66 fits smoothly into almost any environment – from academic institutions, corporate, medical training and public sector organizations to visitor attractions and retail spaces. Seamlessly blend images from multiple projectors to create super-sized displays, or project accurately proportioned images onto angled or curved surfaces. Mount the projector at any angle, even on its side or upside down. Set-up's easier than ever with a friendly new installation menu.

*Actual hours may vary depending on usage environment.

Features

  • Very high image quality with Sony's advanced BrightEra 3LCD projection engine and Z-Phosphor laser light source
  • Crisp, detail-packed WUXGA resolution images
  • Up to 20,000 hours* operation with virtually no maintenance
    • *Actual hours may vary depending on usage environment
  • Save time with every presentation - Quick power On/Off dramatically cuts warm-up time after switch-on before you can start presenting at full brightness
  • Powered Wide Lens Shift
  • Supports HDBaseT
  • Project onto non-flat surfaces with Image Warping
  • Slim, attractive new blend-in design
  • Built-in Auto Calibration
  • Project Side by Side
  • Constant Bright maintains the same brightness throughout the 20,000 hours recommended life span
  • Advanced picture refinement technologies
  • Hassle-free automatic filter cleaning
  • Energy saving features - Reduce running costs even further with convenient energy-saving features: Picture Mute and Auto Dimming
  • 360° free-angle installation capability
  • Included powered standard zoom lens plus wide choice of lens options
  • Create super-size displays with Edge Blending
  • Quiet operation - Low fan noise ensures discreet, unobtrusive operation in quiet environments from museums and galleries to lecture theaters
  • Picture Mode ensures great-looking pictures in any presentation conditions
  • Simple set-up with friendly new Installation menu

Specifications

Screen Size 40'' to 600'' (1.02 m to 15.24 m) (measured diagonally)
Light Output Mode: Standard - 6100 lm
Mode: Middle - 4000 lm
Color Light Output Mode: Standard - 6100 lm
Mode: Middle - 4000 lm
Projection Lens Focus: Powered
Zoom - Powered/Manual: Powered
Zoom - Ratio: Approx. x 1.6
Throw Ratio: 1.39:1 to 2.23:1
Lens shift - Powered/Manual: Powered
Lens shift - Range Vertical: -5%, +60%
Lens shift - Range Horizontal: +/- 32%
Display Resolution Computer signal input: Maximum display resolution: 1920 x 1200 dots *4
Video signal input: NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i
The following items are available for digital signal (HDMI input) only; 1080/60P, 1080/50p, 1080/24p
Input (Computer/Video/Control) INPUT A: RGB / Y PB PR input connector:Mini D-sub 15 pin (female), Audio input connector: Stereo mini jack
INPUT B: DVI input connector: DVI-D 24-pin (single link), HDCP support, Audio input connector: Shared with INPUT A
INPUT C: HDMI input connector: HDMI 19-pin, HDCP support, Audio input connector: HDMI audio support
INPUT D: HDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN, Control)
VIDEO IN: Video input connector: BNC, Audio input connector: Shared with input A
Output (Computer/Video/Control) OUTPUT A: Monitor output for Input A Connector: Mini D-sub 15-pin (female), Audio output connector: Stereo mini jack
OUTPUT B: Monitor output for Input B Connector: DVI-D 24-pin (single link), HDCP not supported, Audio output, Monitor out connector: Stereo mini jack
REMOTE: D-sub 9-pin (male) / RS232C
LAN: RJ45, 10BASE-T/100BASE-TX
IR (Control S): Stereo mini jack, Plug in power DC5V
Power Requirements AC 100 V to 240 V, 5.5 A to 2.3 A, 50 Hz / 60 Hz
Supplied Accessories Remote commander: RM-PJ27
Optional Accessories Projection Lens: VPLL-3003 / 3007 / Z3009 / Z3010 / Z3024 / Z3032
Dimensions (H x W x D) (without protrusions) 6.65" (169 mm) x 18.11" (460 mm) x 20.28" (515 mm)
Weight 34 lbs (16 kg)
