By AtlasIED

Sound Masking System with AtlasIED Pendant Mount Speakers and White Noise Generator for up to 7000SF

Part #:
SMSS-20M1000RASPMG2240
Model #:
SMSS-20M1000RASPMG2240
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

This two-zone open architecture sound masking solution with indirect plenum rated hanging speakers not only reduces distractions but protects sensitive information in open ceiling offices of up to 7,000 sf.

Description

Inside the Design

The demand for sound masking has increased due to the growing need to secure customers' sensitive information. This speech privacy system will help reduce noise distractions and protect confidential customer and employee information by adding a low level, unobtrusive background sound to the environment making speech less intelligible. This system is perfect for high ceiling and open office floor plans in contemporary open office environments, corporate businesses offices, and more.

Sound System Features:

  • Up to 2 zones with approximately 7,000 sq ft of coverage
  • Pendant hanging sound masking speakers
  • Analog white and pink noise generators
  • Illuminated privacy sign controller available
  • Suitable for open ceilings or above plenum ceilings (approved UL1480 & UL2043) for use in air handling
  • Sleek appearance designed for open ceiling areas where speakers may be visible

Open Ceiling Design Sound Masking System for up to 7,000 SF

This Pro Acoustics designed 2-zone commercial sound masking system includes 20 Atlas Sound M1000R hanging indirect field sound masking speakers, a 2-zone compact sound masking controller amplifier with onboard DSP, speaker chains and 1000ft plenum-rated speaker wire necessary for installation. This system includes everything you need to make your workplace more acoustically comfortable and secure.

Features

Atlas Sound M1000R 8" Sound Masking Speakers:

  • Sleek, round appearance designed for mounting in open plenum areas where speakers may be visible
  • Balanced enclosure design to ensure level orientation when suspended (78" (2m) suspension chain included)
  • Fully assembled package includes 8" transducer with high-quality line matching transformer
  • .25 to 4 watt (@70.7V) power selection (plus OFF) via external switch
  • 382in3 (6.26L) enclosure volume for accurate low-frequency masking spectrum reproduction
  • Strain relief to facilitate input termination
  • Tested and approved to UL2043 standard for use in air handling (plenum) spaces
  • black finish to blend in with darker ceilings
  • Safety Listed to UL 1480 & UL 2043

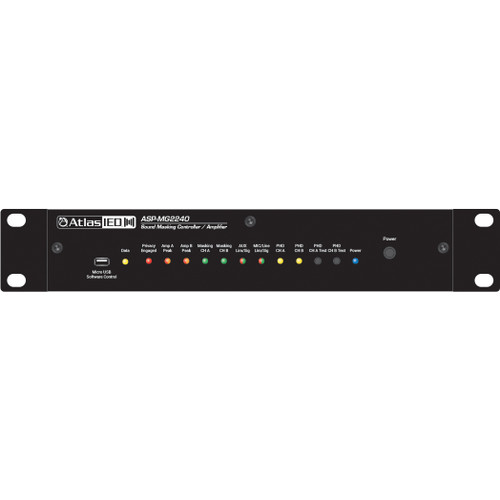

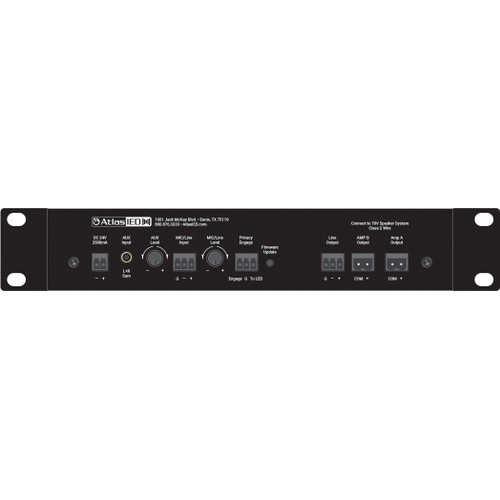

Atlas Sound ASP-MG2240 Two-Zone Compact Sound Masking Controller Amplifier with Onboard DSP:

  • Two-channels of internal amplification (20-watts per channel @ 70.7V)
  • Two separate analog masking generators
  • Analog white & pink noise generators
  • Auxiliary input for BGM with EQ & limiter
  • Mic/line input for paging with EQ & limiter
  • Speech-enhanced privacy mode (adjustable +/- 12db)
  • Assignable balanced line output
  • Internal DSP parameters EQ, HI & LO pass filters, limiter with intuitive software control
  • Push here diagnostic (PHD) automatic diagnostic system test
  • Single zone sound masking coverage up to 7000 sq ft

System Includes

  • (20) Atlas Sound M1000R 8" Sound Masking Speaker with 4W 70V Transformer and Round Enclosure
  • (1) Atlas Sound ASP-MG2240 Two-Zone Compact Sound Masking Controller Amplifier with Onboard DSP
  • (20) Atlas Sound MCHAIN72 72" Hanging Chains for M1000 Speakers
  • (1000') West Penn 25225B 16/2 Plenum Rated Speaker Wire
