Sound Masking System with Dynasound Pendant Mount Speakers and Multi-Zone Generator for up to 10000SF (Discontinued)

Inside the Design

This Dynasound commercial sound masking system protects speech privacy and reduces noise distractions in large, multi-zone, open ceiling applications by emitting ambient background sound. Designed to hang from open plenum ceilings, this pendant mount sound masking system blends in perfectly with its surroundings and goes virtually unnoticed by employees and customers. Ideal for large commercial offices, healthcare facilities, banks and financial organizations, technology companies, grocery stores, and retail applications, this speech privacy system is a cost-effective solution to create a more acoustically comfortable environment while also meeting required HIPAA compliance and legal standards.

Sound System Features:

• Up to 4 zones with approximately 10,000 sq ft of coverage
• 70V commercial speaker system
• Background music and paging capabilities
• Provides uniform dispersion
• Speakers offer a clean appearance with no exposed controls or wiring from below
• Single point suspension for easy installation

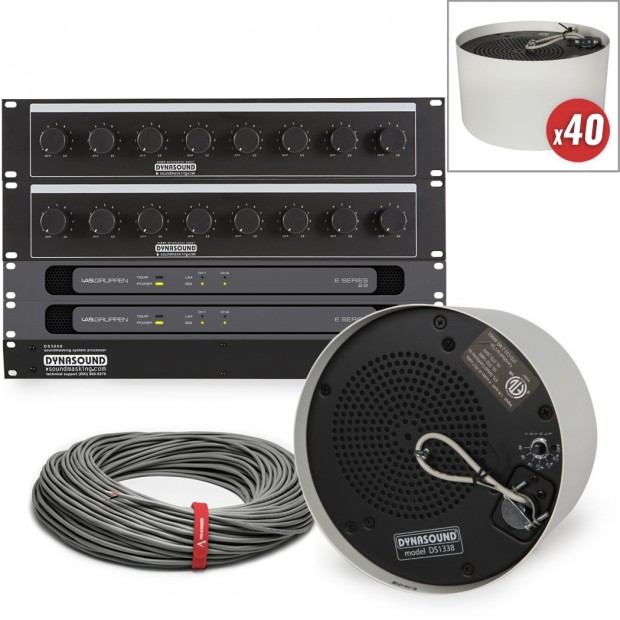

Multi-Zone Commercial Sound Masking System with Dynasound Speakers for up to 10,000 SF

This Pro Acoustics designed commercial sound masking system includes 40 Dynasound DS1338 speakers, 2 DSLG22 sound masking amplifiers, an 8-channel multi-zone DSP sound masking processor, and 2 DSRMP-8 rack mount zone volume control panels. This system includes everything you need to create a more acoustically comfortable and secure commercial environment. Also included with this system is 5,000ft of plenum-rated speaker wire for installation.

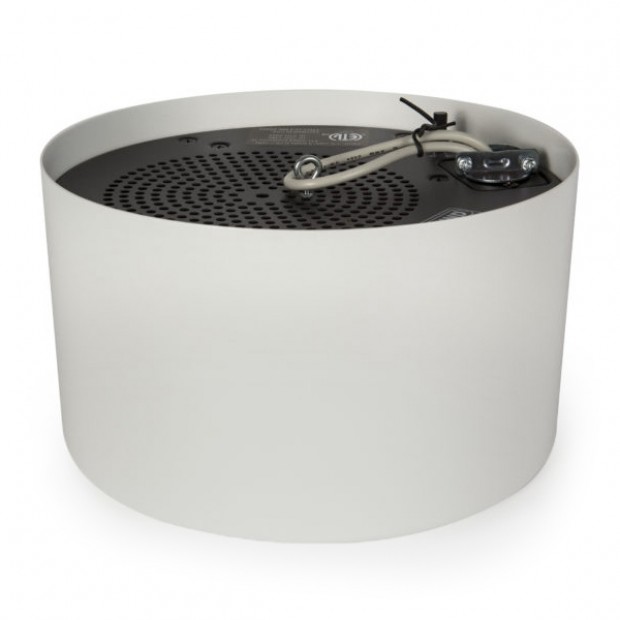

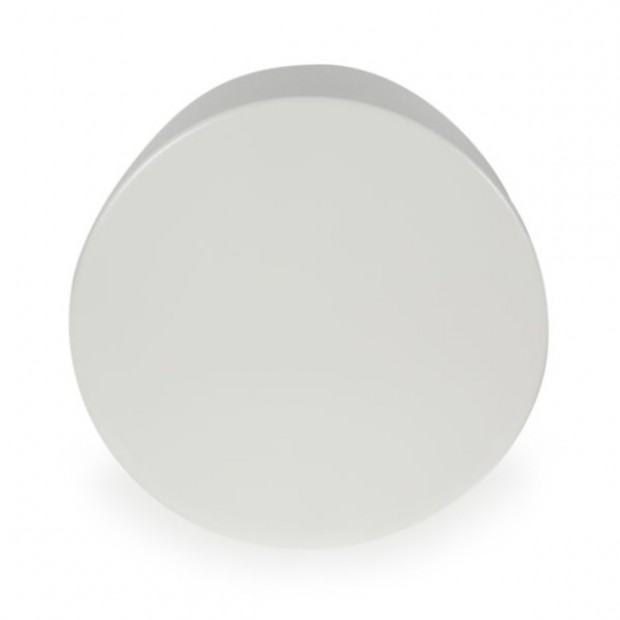

Dynasound DS1338W 6" Sound Masking Speakers:

• Clean, streamlined appearance for use in open structure facilities and in ceiling plenums
• Internal 70.7 volt transformer with rotary volume control
• Single point suspension for easy installation
• ETL listed to conform to UL1480 and UL2043 CSA C22.2 60065



Dynasound DSLG22 Sound Masking Amplifiers:

• Compact, cost-efficient power – 2 x 100 W in 1U
• Certified Energy Star compliant
• Flexible – IntelliDrive delivers comparable power per channel at 70 V or Low-Z (4, 8 and 16 ohms)
• Asymmetric loading – Allows "mixing and matching" of loads with different impedances to maximize system efficiency and inventory utilization
• IDEEA™ output state based on patented Class D variant
• Exceptionally low lifetime operating costs
• High efficiency – Extremely low power consumption and heat output
• Auto-standby function – Power consumption < 1 W in standby mode
• RSL Switch – Innovative circuit senses rail voltage and optimizes output for instantaneous load conditions
• Efficient cooling – Dual temperature-controlled fans
• Comprehensive circuit protection and fault indication

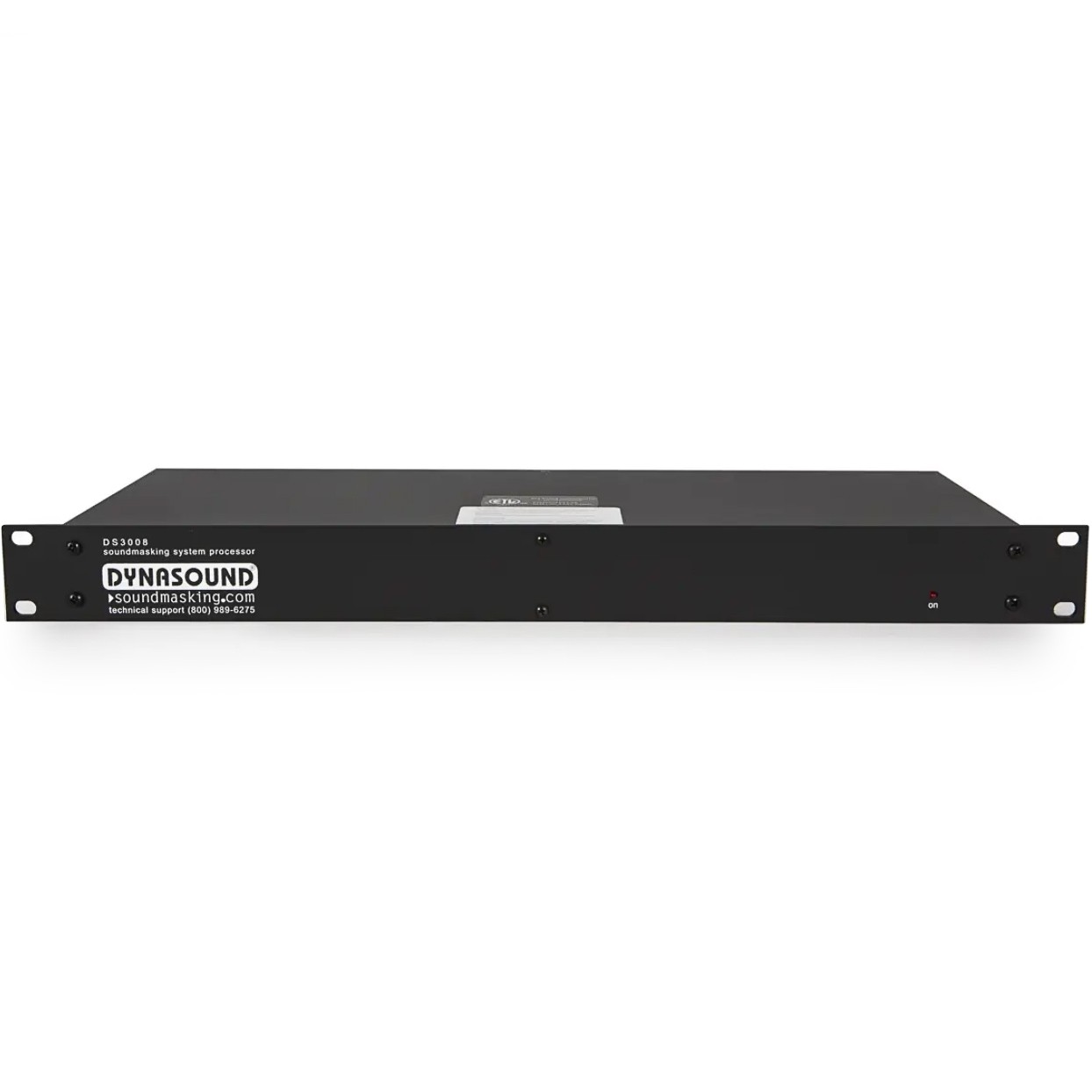

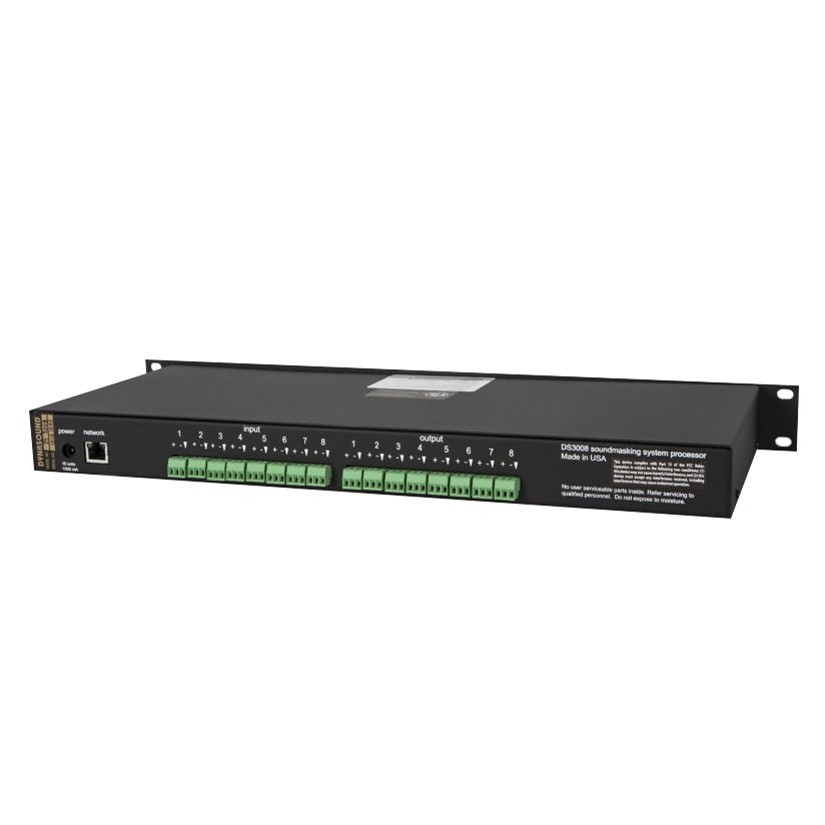

Dynasound DS3008 8-Channel DSP Sound Masking Processor:

• Four sound masking generators with 1/3 octave band EQ, high, and low pass filters
• Eight balanced inputs with level controls, equalizers, and compressors
• Eight balanced outputs with level control
• CobraNet ™ digital audio network ready on all inputs and outputs
• Matrix mixer allows any combination of inputs and sound masking to be routed to any
• ETL listed UL 60065

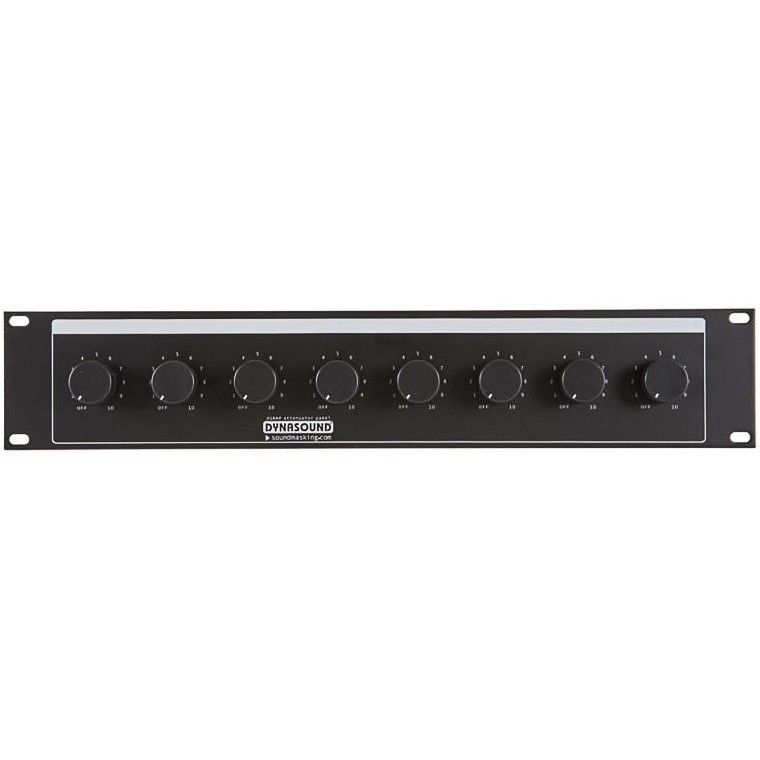

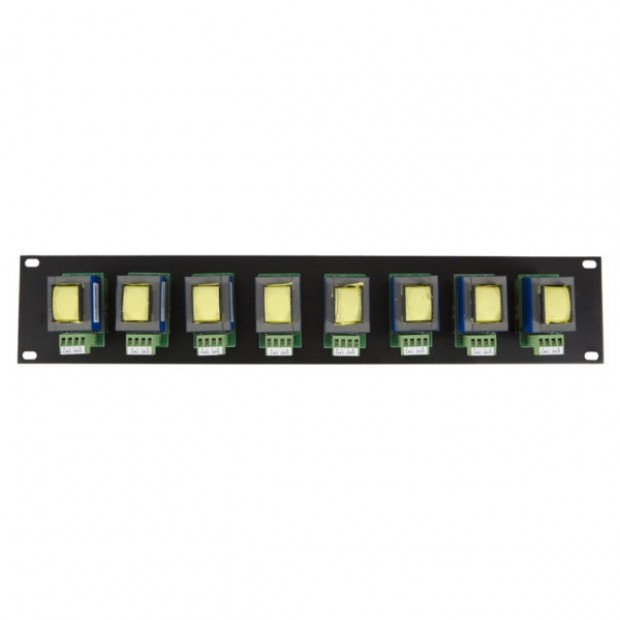

Dynasound DSRMP-8 Rack Mount Zone Volume Control Panels:

• Standard 19" rack mount face plate, 4" deep, 3" high (Standard 2 RU space), available in 2U rack space height (3.5")
• Eleven-stage detent attenuation control (from 0 to 10) in 1.5 dBA increments
• Each attenuator rated at 100 watts
• Available with one to eight attenuators per rackmount panel

• (40) Dynasound DS1338W 6" 70V Sound Masking Speakers
• (2) Dynasound DSLG22 Sound Masking Amplifiers
• (1) Dynasound DS3008 8-Channel DSP Sound Masking Processor
• (2) Dynasound DSRMP-8 Rack Mount Zone Volume Control Panels

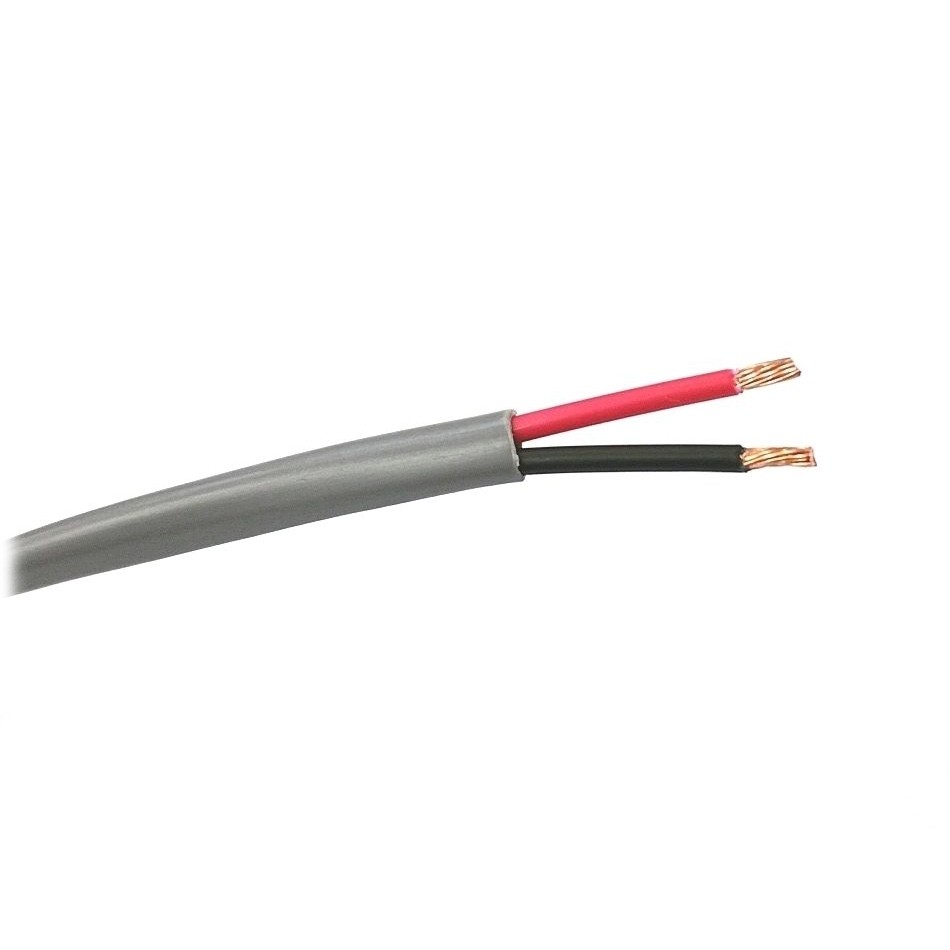

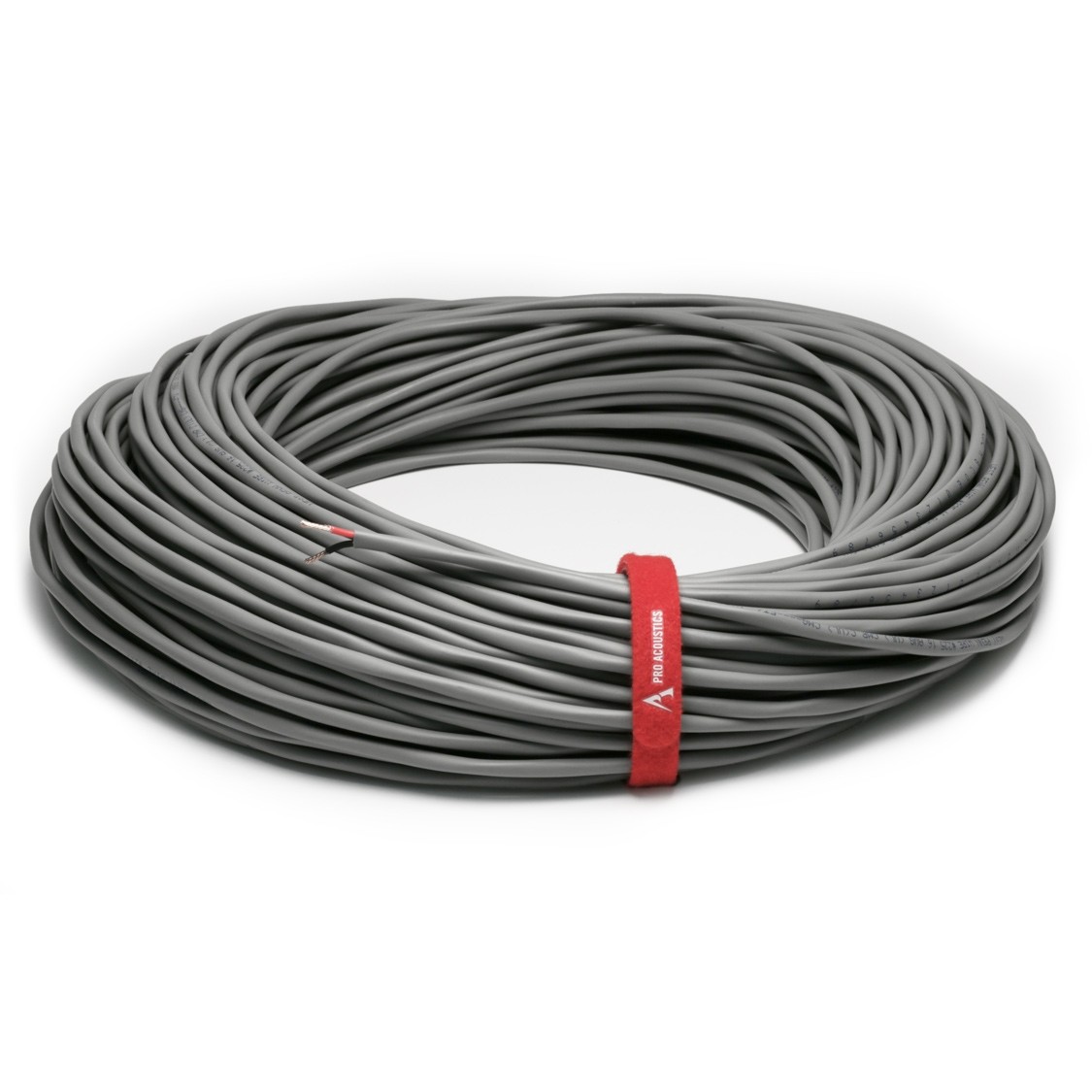

• (5,000') West Penn 25225B 16/2 Plenum Speaker Wire
