SoundTube CM52s-BGM-II 5.25" In-Ceiling Speaker
Back of SoundTube CM52s-BGM-II 5.25" In-Ceiling Speaker

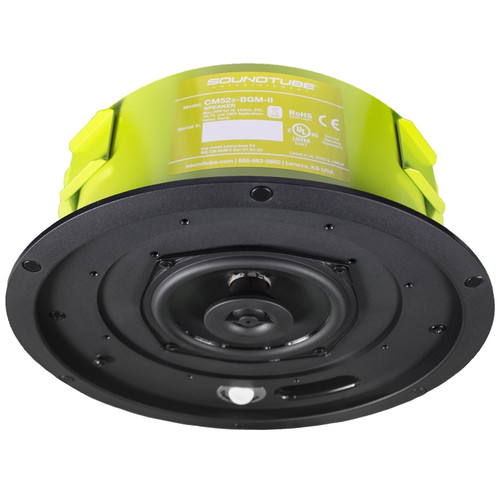

SoundTube CM52s-BGM-II 5.25" In-Ceiling Speaker Grille Off

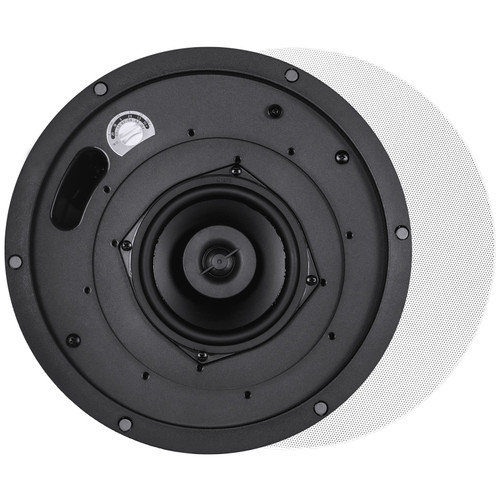

SoundTube CM52s-BGM-II 5.25" In-Ceiling Speaker with Grille
By SoundTube

SoundTube CM52s-BGM-II 5.25" Coaxial In-Ceiling Speaker with Short Can and Seamless Magnetic Grille - White

Write a Review
Part #:
CM52s-BGM-II-WH
Model #:
CM52s-BGM-II
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The SoundTube CM52-BGM-II is a 5.25" coaxial two-way blind-mount in-ceiling speaker which delivers high efficiency and performance across the operating bandwidth.

Description

SoundTube CM52s-BGM-II 5.25" In-Ceiling Speaker with Short Can and Seamless Magnetic White Grille

The CM52-BGM-II is a 5.25" coaxial two-way blind-mount in-ceiling speaker which delivers high efficiency and performance across the operating bandwidth. By incorporating a 5.25" polypropylene driver with a rubber surround and a .75" silk dome tweeter in a drawn steel backcan (with a tuned port), this speaker delivers maximum frequency response (56 Hz - 22 kHz, ±10 dB) in an integrated enclosure design.

Mounting hardware is included and features a constant-tension fixed-wing mounting system with a 21-gauge steel tile bridge ensuring rapid and secure installation in any sheetrock or drop-tile application. For easy ordering, stocking and installation, this series includes a color-coded (green) tile bridge and optional color-coded (green) pre-construction bracket, as well as a six-position tap switch for 25, 70.7 and 100 V applications with a transformer bypass position.

Features
  • One 5.25" (130 mm) polypropylene woofer with rubber surround and one .75" (19 mm) silk dome tweeter
  • BroadBeam Ring™ technology for mid-range clarity and ultra wide off axis performance
  • Easy-access six-position tap switch for 25/70.7/100 V and transformer bypass settings allows for easy ordering, stocking and installation
  • Tuned port on baffle for improved bass response down to 56 Hz (±10 dB)
  • Reduced amplification costs and maximum efficiency of 83.5 dB sensitivity, 16 Ω impedance
  • Incorporates a steel plated and powder coated flangeless magnetic grille for lasting durability and seamless aesthetic (White grille included, but also available in Black)
  • Adaptable to material thicknesses ranging from 0.035" (0.9 mm) to 1.6" (40.6 mm)
  • UL 1480 and 2043 approved
  • High-quality black or white painted finish.
  • Included accessories: tile bridge, UL listed 0.5 inch conduit clamp
  • Optional accessories: Color-coded (green) pre-construction bracket (AC-CMEZ-6/8-PCB) Black Grill (GRL-CM-BGM-II-BK)

Specifications
Impedance (Nominal) 16 ohm
Sensitivity dB @ 2.83 V/1 m 79.1 dB
Sensitivity dB @ 1 W/1 m 82 dB
Frequency Response (- 3 dB) 67 Hz - 20 kHz
Frequency Response (-10 dB) 56 Hz - 22 kHz
Max. Program Power 40W
Max. Continuous Power RMS 20W
Power for Max SPL 40 W
Coverage Angle (-6 dB @ 2 kHz) 170°
Tweeter Driver 1" Silk Dome w/ BroadBeam Ring®
Woofer Driver 5.25" Polypropylene Cone w/ Butyl Rubber Surround
Directivity Factor (Q) 3.2 and 2.1
Directivity Index (DI) 5 dB and 3.3 dB
Tap Selector Rotary Switch
Crossover Frequency 5.0 kHz
Network Type: High Pass 12 dB per octave 2nd order
Enclosure Properties ABS Glass Fiber Reinforced, Injection Molded, Ported
Grille Friction-Fit, Magnetic, Micro-Flange, White, Paintable, Painted, Steel
Inputs 4 Pin Ceramic Terminal
Color White
Included Accessories Conduit Clamp, Cover Plate, Grille, Paint Mask, Tile Bridge
Backcan Diameter 9.67" (245.6 mm)
Backcan Height 3.75" (95.3 mm)
Visible Diameter 11.75" (298.5 mm)
Visible Height 0.34" (8.6 mm)
Cutout Width/Diameter 10.5" (266.7 mm)
Min - Max Ceiling Thickness 0.04" (0.9 mm) - 1.6" (40.6 mm)
Shipping Weight 8.6 lbs (3.9 kg)
