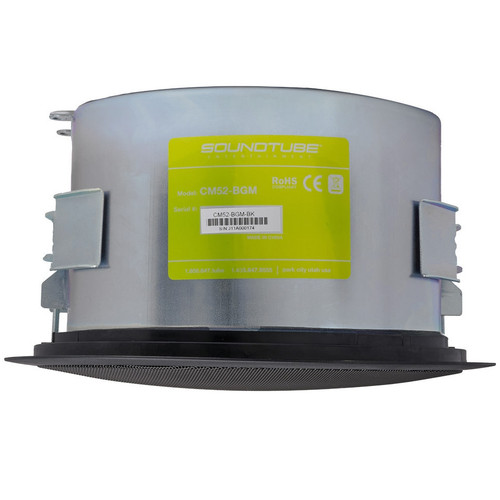

SoundTube CM52-BGM 5.25" Coaxial In-Ceiling Background Music Speaker - Black
SoundTube CM52-BGM 5.25" Coaxial In-Ceiling Background Music Speaker - Black
SoundTube CM52-BGM 5.25" Coaxial In-Ceiling Background Music Speaker - Black
SoundTube CM52-BGM 5.25" Coaxial In-Ceiling Background Music Speaker - Black
By SoundTube

SoundTube CM52-BGM 5.25" Coaxial In-Ceiling Background Music Speaker - Black

Write a Review
Part #:
CM52-BGM-BK
Model #:
CM52-BGM
Availability: This model has been replaced. View new model
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The SoundTube IP4-CM52-BGM master speaker has output terminals that will power up to 3 additional IP-CM52-BGM speakers from a CAT5 or 6 run.

Description

The SoundTube CM52-BGM has one 5.25 inch (134 mm) polypropylene woofer with rubber surround and one 0.75 inch (19 mm) silk dome tweeter. This speaker features BroadBeam Ring™ technology for mid-range clarity and smooth off-axis performance. Includes an easy-access six-position tap switch for 25/70.7/100-volt and transformer bypass settings allows for easy ordering, stocking and installation. Tuned port on baffle for added musicality and bass response down to 65 Hz (-10 dB). Reduced amplification costs and maximum efficiency of 84.5 dB sensitivity, 16 ohm impedance. Incorporates a painted steel grille for lasting durability. Adaptable to material thicknesses ranging from 0.035 in. (0.9 mm) to 1.6 in. (40.6 mm). UL 1480 and 2043 listed. Included accessories: Color-coded (orange) tile bridge, UL listed conduit clamp, paint shield.

Features
  • One 5.25" (134 mm) polypropylene woofer with rubber surround and one 0.75" (19 mm) silk dome tweeter
  • BroadBeam Ring™ technology for midrange clarity and ultra wide off-axis performance
  • Easy-access six-position tap switch for 25/70.7/100-volt and transformer bypass settings allows for easy ordering, stocking and installation
  • Tuned port on baffle for added musicality and bass response down to 65 Hz (-10 dB)
  • Reduced amplification costs and maximum efficiency of 87.5 dB sensitivity, 16 ohm impedance
  • Incorporates a painted steel grille for lasting durability
  • Adaptable to material thicknesses ranging from 0.035 in. (0.9 mm) to 1.6 in. (40.6 mm)
  • UL 1480 and 2043 approved
  • High-quality black or white painted finish - Custom colors available
  • Included accessories: Color-coded (green) tile bridge, UL listed conduit clamp, paint shield
  • Optional accessories: Color-coded (green) pre-construction bracket (AC-CM6/8-PCB)

Specifications
Frequency Response (- 3 dB) 90 Hz - 20 kHz
Frequency Response (-10 dB) 65 Hz - 22 kHz
Sensitivity 89 dB
Total Bi-Amp Power 40W
Max. Continuous Power RMS 20W
Max SPL dB @ 1 M 100.5 dB
Transducer - High-Frequency Driver 19 mm (0.75 in.) Silk dome tweeter
Inputs Ceramic terminal connector
Regulatory - UL UL 1480 and 2043
Included accessories Tile bridge, UL-listed flex conduit clamp, paint shield, hole template, wire nuts
Optional Accessory Pre-construction bracket (AC-CMEZ-6/8-PCB)
Colors Black or white
Packaging One per box
Backcan Diameter 9.67" (245.6 mm)
Backcan Height 5.75" (146.1 mm)
Visible Diameter 11.75" (298.5 mm)
Visible Height 0.34" (8.6 mm)
Mounting Hole Diameter 10.5" (266.7 mm)
Weight 8 lbs (3.6 kg)
Shipping Weight 9 lbs (4.1 kg)
