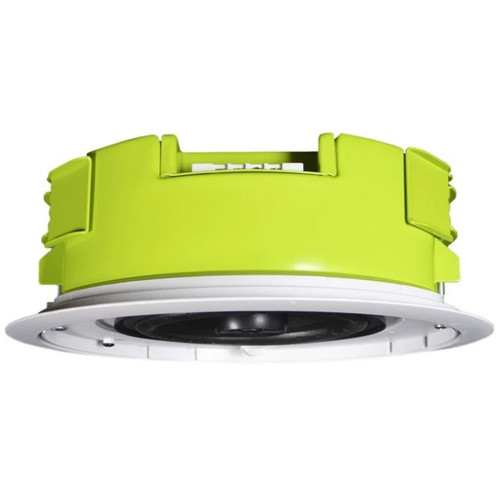

The next generation version of the CM62-EZs with improved and additional features. Engineered for applications with limited plenum space, incorporating a SoundTube-specific shallow backcan with an installed depth of only 3.5 inches. One 6.50 in (165.0 mm) treated fiber woofer with cloth surround and one 1.00 in (25.4 mm) silk dome tweeter. Easy-access six-position tap switch for 25/70.7/100-volt and 16 ohm transformer bypass position allows for easy ordering, stocking and installation. Reduced amplification costs with maximum efficiency including 90.5 dB sensitivity and 16 ohm impedance. Superior voice intelligibility with a 10 kHz coverage angle of 80 (independently verified).
Cost-effective 16 ohm settings allows for the use of multiples of two, four, or six speakers in a system using a standard amplifier without a trans former. Incorporates a painted steel grille for lasting durability. Ceramic input terminal accepts up to 10 gauge plenum rated signal wire and includes thermal fuse. Suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. EN54-24 listed. Adaptable to material thicknesses ranging from 0.04 inch (0.9 mm) 1.60 inch (40.6 mm). UL 1480 (UEAY) and 2043, cUL, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved. IP-Rating: IPX3.
Included accessories: Choose between a tile bridge or a pre-construction bracket, UL-listed 0.5-inch flex conduit clamp, paint shield and two wire nuts.
| System Type | 6.5" coaxial, in-ceiling, sealed (32W transformer for 25/70.7/100V or transformer bypass) |
|---|---|
| Sensitivity dB @ 2.83V/1 m | 87.5 dB |
| Sensitivity dB @ 1W/1 m | 90.5 dB |
| Sensitivity dB @ 1W/4 m | 73.8 |
| Frequency Response (-3 dB) | 135 Hz - 22 kHz |
| Frequency Response (-10 dB) | 75 Hz - 22 kHz |
| Max. Program Power | 100W |
| Max. Continuous Power RMS | 50W |
| Max. Power SPL @ 1 m | 107.5 dB |
| Coverage Angle Horizontal @ -6 dB | 500 Hz: 179º 1 khz: 161º 2 khz: 110º 4 khz: 76º |
| Coverage Angle Vertical @ -6 dB | 500 Hz: 180º 1 khz: 162º 2 khz: 122º 4 khz: 80º |
| Coverage Angle (averaged 2 - 10 kHz) | 80º |
| Directivity Factor (Q) | 5.1 (averaged 100 Hz - 10 kHz) ; 5.2 (2 kHz) |
| Directivity Index (DI) dB | 6.2 dB (averaged 100 Hz - 10 kHz) ; 7.2 dB (2 kHz) |
| Tap Selector | Six-position rotary switch with transformer bypass position |
| Transducer - Low-Frequency Driver | 6.50" (165 mm) Treated fiber cone, cloth surround |
| Transducer - High-Frequency Driver | 1" (25.4 mm) Silk dome tweeter |
| Low-Frequency Voice Coil | 1" (25.4 mm) |
| Crossover Frequency | 4.0 kHz |
| Network Type: Low Pass | 12 dB per octave, 2nd order |
| Network Type: High Pass | 6 dB per octave, 1st order |
| Enclosure Alignment | Sealed |
| Enclosure Material | Drawn steel backcan with ABS baffle |
| Grille | Painted Steel (paintable) |
| Inputs | 4 position ceramic terminal strip |
| Backcan Dimensions (H x Dia) | 3.75" (95.3 mm) x 9.67" (245.6 mm) |
| Visible Dimensions (H x Dia) | 0.34" (8.6 mm) x 11.75" (298.5 mm) |
| Weight | 7 lbs (3.2 kg) |
| Shipping Weight | 9.15 lbs (4.15 kg) |
