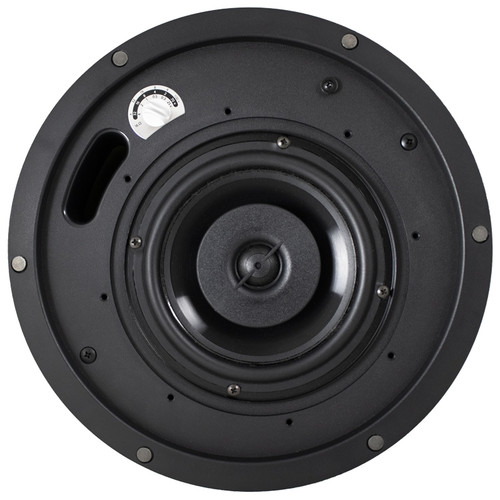

Features one 6.5 inch (165 mm) polypropylene woofer with rubber surround and one 1.0 inch (25.4 mm) silk dome tweeter. BroadBeam Ring™ technology for mid-range clarity and smooth off axis performance. Easy-access six-position tap switch for 25/70.7/100-volt and transformer bypass settings allows for easy ordering, stocking and installation. Tuned port on baffle for added musicality and bass response down to 64 Hz (-10 dB). Reduced amplification costs and maximum efficiency of 85.0 dB sensitivity, 16 ohm impedance. Incorporates a painted steel magnetic seamless grille for lasting durability and refined aesthetics. Adaptable to material thicknesses ranging from 0.035 inch (0.9 mm) to 1.6 inch (40.6 mm). UL 1480, UL 2043 and EN54-24 listed.
| Frequency Response (- 3 dB) | 54 Hz - 20 kHz |
|---|---|
| Frequency Response (-10 dB) | 50 Hz - 22 kHz |
| Sensitivity | 84.5 dB @ 1W/1M 81.4 dB @ 2.83V/1M |
| Max. Continuous Power RMS | 50W |
| Max. Program Power | 100W |
| Woofer Driver | 6.5" Polypropylene Cone w/ Butyl Rubber Surround |
| Tweeter Driver | 1" Silk Dome w/BroadBeam Ring® |
| Certifications | CE, RoHS, UL1480, UL2043 |
| Included Accessories | Conduit Clamp, Cover Plate, Grille, Paint Mask |
| Optional Accessories | White Grille (GRL-CM6/8EZ-II-WH) | Tile Bridge (AC-CMEZ6/8-TB) | Pre-Construction Bracket (AC-CMEZ6/8-PCB)|Junction Box (AC-CM-EZ-JBOX) |
| Packaging | One per box |
| Backcan Diameter | 9.67" (245.6 mm) |
| Backcan Height | 5.75" (146.1 mm) |
| Visible Diameter | 11.75" (298.5 mm) |
| Visible Height | 0.34" (8.6 mm) |
| Cutout Width/Diameter | 10.5" (266.7 mm) |
| Shipping Weight | 10.4 lbs (4.72 kg) |
