The SoundTube CM82-BGM-II features an 8" polypropylene woofer with butyl rubber surround and a 1" silk dome tweeter. BroadBeam Ring™ technology for mid-range clarity and smooth off axis performance. Easy-access six-position tap switch for 25/70.7/100-volt and transformer bypass settings allows for easy ordering, stocking and installation.

Description

SoundTube CM82-BGM-II 8" In-Ceiling Background Music Speaker with White Seamless Magnetic Grille

One 8.0 inch (203 mm) polypropylene woofer with butyl rubber surround and one 1.0 inch (25 mm) silk dome tweeter. BroadBeam Ring™ technology for mid-range clarity and smooth off axis performance. Easy-access six-position tap switch for 25/70.7/100-volt and transformer bypass settings allows for easy ordering, stocking and installation. Tuned port on baffle for added musicality and bass response down to 55 Hz (-10 dB). Reduced amplification costs and maximum efficiency of 86.0 dB sensitivity, 16 ohm impedance. Incorporates a painted steel magnetic seamless grille for lasting durability and refined aesthetics. Adaptable to material thicknesses ranging from 0.035 inch (0.9 mm) to 1.6 inch (40.6 mm). UL 1480 and 2043 listed.

Included accessories: Tile bridge, UL listed 0.5-inch conduit clamp, paint shield.

Features
  • One 8" (203 mm) polypropylene woofer with butyl rubber surround and one 1" (25 mm) silk dome tweeter
  • BeamRing™ technology for mid-range clarity and smooth off axis performance
  • Easy-access six-position tap switch for 25/70.7/100V and transformer bypass settings allows for easy ordering, stocking and installation
  • Tuned port on baffle for added musicality and bass response down to 55 Hz (-10 dB)
  • Reduced amplification costs and maximum efficiency of 86.0 dB sensitivity, 16 ohm impedance
  • Incorporates a painted steel magnetic seamless grille for lasting durability and refined aesthetics
  • Adaptable to material thicknesses ranging from 0.035" (0.9 mm) to 1.6" (40.6 mm)
  • UL 1480 and 2043 pending
  • Included accessories: Tile bridge, UL listed 0.5-inch conduit clamp, paint shield

Specifications
Impedance (Nominal) 16 ohm
Sensitivity dB @ 2.83 V/1 m 81.4 dB
Sensitivity dB @ 1 W/1 m 84.5 dB
Frequency Response (-3 dB) 56 Hz - 20 kHz
Frequency Response (-10 dB) 45 Hz - 22kHz
Max. Program Power 128W
Max. Continuous Power RMS 64W
Coverage Angle (-6 dB @ 2kHz) 105°
Directivity Factor (Q) 7.6 and 8.2 (Averaged 100Hz - 10kHz, @ 2kHz)
Directivity Index (DI) 6.9 dB and 6.6 dB (Averaged 100Hz - 10kHz, @ 2kHz)
Tap Selector 8W / 64W / 64W
Transducer - Low-Frequency Driver 8" (203 mm) Polypropylene cone, butyl rubber surround
Transducer - High-Frequency Driver 1" (25 mm) Silk dome tweeter
Low-Frequency Voice Coil 1" (25.4 mm)
Crossover Frequency 3.0 kHz
Network Type: High Pass 12 dB per octave, 2nd order
Enclosure Properties ABS Glass Fiber Reinforced, Injection Molded, Ported
Grille Properties Friction-Fit, Magnetic, Micro-Flange, White, Paintable, Painted, Steel

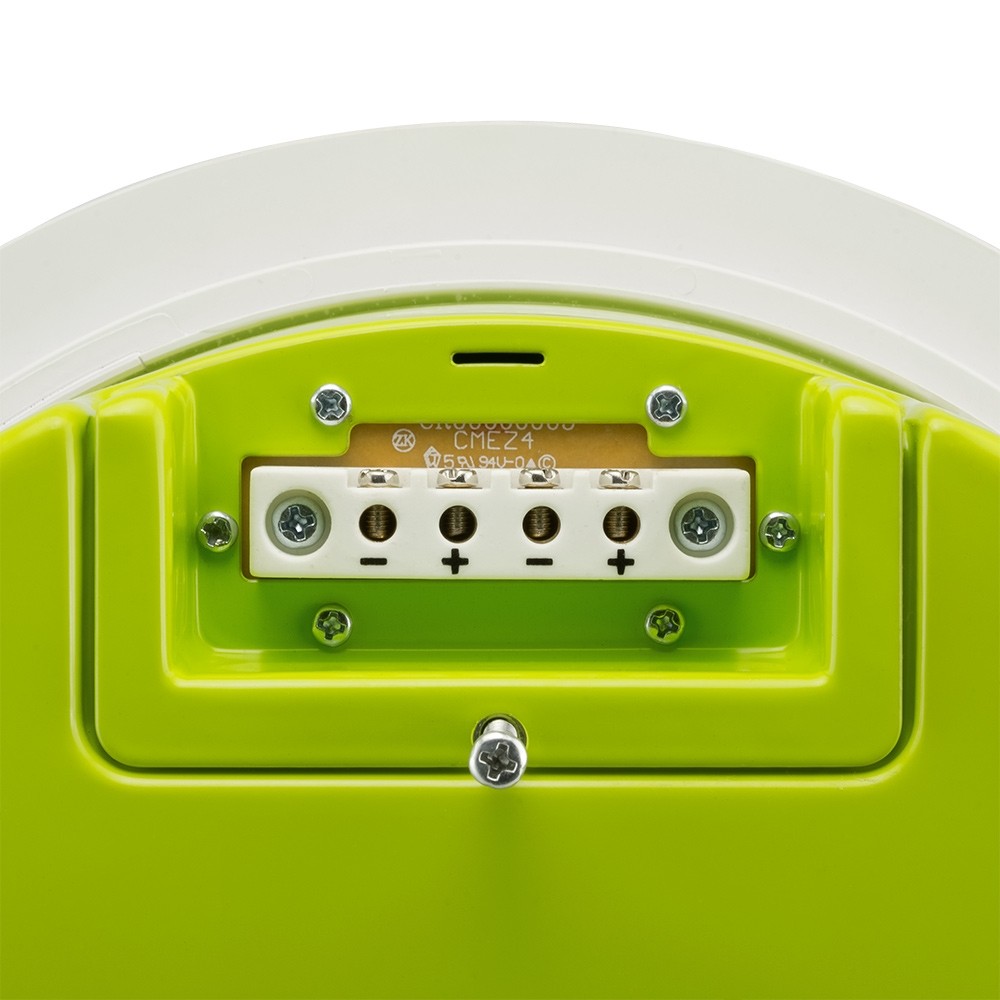

Source Inputs 4 Pin Ceramic Terminal
Backcan Diameter 9.67" (245.6 mm)
Backcan Height 8" (203.2 mm)
Visible Diameter 11.75" (298.5 mm)
Visible Height 0.34" (8.6 mm)
Cutout Width/Diameter 10.5" (266.7 mm)
Min – Max Ceiling Thickness 0.04" (0.9 mm) – 1.6" (40.6 mm)
Shipping Weight 14.5 lbs (6.58 kg)
