SoundTube CM82-BGM-II 8-Inch In-Ceiling Speaker

The CM82-BGM-II is an 8" coaxial two-way blind-mount in-ceiling speaker that delivers exceptional sound performance and installation flexibility. Featuring an 8" polypropylene woofer with a butyl rubber surround and a 1" silk dome tweeter housed in a drawn steel backcan with a tuned port, this speaker achieves a wide frequency response of 45 Hz - 22 kHz (±10 dB). BroadBeam Ring technology ensures mid-range clarity and smooth off-axis coverage for consistent, full-bodied sound in any environment.

Engineered for quick and secure installation, the CM82-BGM-II includes a constant-tension fixed-wing mounting system and a 21-gauge steel tile bridge, ideal for drop-tile and sheetrock ceilings. A six-position tap switch allows easy selection for 25, 70.7, or 100V systems, or transformer bypass, making setup straightforward for a variety of audio configurations. With 85 dB sensitivity and 16Ω impedance, it offers excellent efficiency and reduced amplification costs.

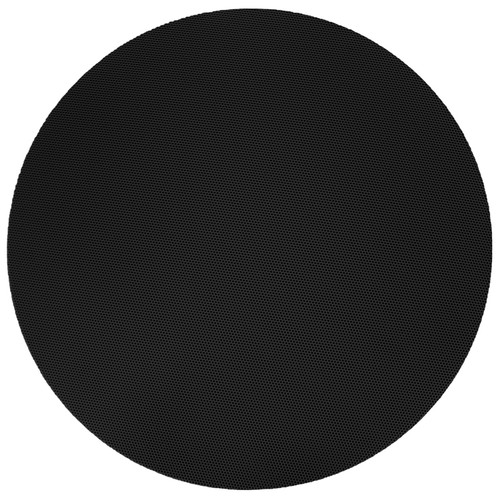

The CM82-BGM-II is shipped in white with a black magnetic grille included, giving installers the freedom to match either light or dark interior aesthetics. The powder-coated steel grille provides long-lasting durability and a seamless, professional look. UL1480 and UL2043 certifications ensure safety and reliability, making this model ideal for commercial, hospitality, and residential applications requiring both premium sound and versatile design options.

Features

Features

Shipped in white with an included black magnetic grille for aesthetic flexibility
8" polypropylene woofer + 1" silk dome tweeter for rich, full-range sound
BroadBeam Ring technology for smooth off-axis coverage and mid-range clarity
Tuned port on baffle enhances bass response down to 45 Hz (±10 dB)
Six-position tap switch for 25, 70.7, 100V, and transformer bypass settings
Constant-tension fixed-wing mounting system with 21-gauge steel tile bridge for secure installation
Powder-coated, flange-less magnetic grille for a seamless and durable finish
UL1480 and UL2043 approved for commercial safety and reliability
Included accessories: black magnetic grille, tile bridge, UL-listed 0.5" conduit clamp, and paint shield

Specification

Impedance (Nominal)	16 ohm
Sensitivity dB @ 2.83 V/1 m	81.4 dB
Sensitivity dB @ 1 W/1 m	84.5 dB
Frequency Response (- 3 dB)	56 Hz - 20 kHz
Frequency Response (-10 dB)	45 Hz - 22kHz
Max. Program Power	128W
Max. Continuous Power RMS	64W
Coverage Angle (-6dB @ 2kHz)	105°
Directivity Factor (Q)	7.6 and 8.2
Directivity Index (DI)	6.9dB and 6.6dB
Tap Selector	8W/64W/64W
Transducer - Low-Frequency Driver	8" (203 mm) Polypropylene cone, butyl rubber surround
Transducer - High-Frequency Driver	1" (25 mm) Silk dome tweeter
Low-Frequency Voice Coil	1" (25.4 mm)
Crossover Frequency	3.0 kHz
Network Type: High Pass	12 dB per octave, 2nd order
Enclosure Properties	ABS Glass Fiber Reinforced, Injection Molded, Ported
Grille Properties	Friction-Fit, Magnetic, Micro-Flange, White, Paintable, Painted, Steel
Included Accessories	Black Magnetic Grille, Conduit Clamp, Cover Plate, Paint Mask, Tile Bridge
Source Inputs	4 Pin Ceramic Terminal
Backcan Diameter	9.67" (245.6 mm)
Backcan Height	8" (203.2 mm)
Visible Diameter	11.75" (298.5 mm)
Visible Height	0.34" (8.6 mm)
Cutout Width/Diameter	10.5" (266.7 mm)
Min – Max Ceiling Thickness	0.04" (0.9 mm) – 1.6" (40.6 mm)
Shipping Weight	16 lbs (7.26 kg)
