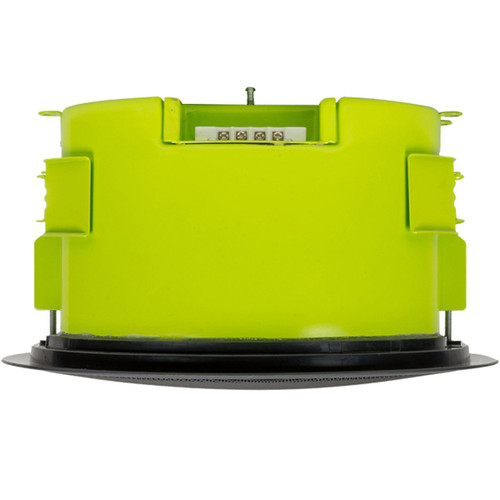

The CM82-EZ-II delivers professional-grade in-ceiling audio with a high-efficiency 8" coaxial, two-way design. Its polypropylene woofer with butyl rubber surround and 1" silk dome tweeter provides clear, dynamic sound across a wide frequency range of 65 Hz - 22 kHz (±10 dB). Housed in a sealed steel back can, this speaker ensures maximum performance while maintaining superior voice intelligibility, with an average coverage angle of 95° in the 2-10 kHz range.
Installation is fast and secure with a constant-tension fixed-wing mounting system and 21-gauge "full-metal" steel tile bridge. The included color-coded (green) tile bridge and optional pre-construction bracket simplify stocking, ordering, and installation for both sheetrock and drop-tile ceilings. A six-position tap switch supports 25V, 70.7V, 100V, and 16Ω transformer bypass settings, allowing flexible system design and reduced amplifier costs.
Durable black painted grille with rust inhibitor ensures a lasting aesthetic, while included accessories such as the tile bridge, UL-listed 0.5" flex conduit clamp, paint shield, and wire nuts make installation complete. The CM82-EZ-II meets UL1480A, UL2043, cUL, and CE standards, making it a reliable solution for commercial or residential installations. Optional accessories include a color-coded pre-construction bracket (AC-CMEZ-6/8-PCB) and junction box (AC-CM-EZ-JBOX) for further customization.
| Speaker Type | Coaxial, 2-Way In-Ceiling |
|---|---|
| Woofer Driver | 8" Polypropylene with Butyl Rubber Surround |
| Tweeter Driver | 1" Silk Dome |
| Frequency Response (±10 dB) | 65 Hz - 22 kHz |
| Frequency Response (±3 dB) | 92 Hz - 18 kHz |
| Sensitivity @ 1W/1M | 89 dB |
| Sensitivity @ 2.83V/1M | 86 dB |
| Nominal Impedance | 16Ω |
| Minimum Impedance | 17.2Ω |
| Coverage Angle | 95° (2 - 10 kHz) |
| Mounting | Fixed-Wing Tile Bridge, Blind-Mount Backcan |
| Tap Switch | Six-position: 25V, 70.7V, 100V, 16Ω Bypass |
| Ceiling Thickness | 0.04" (0.9 mm) - 1.6" (40.6 mm) |
| Finish | Black Painted Steel Grille |
| Certifications | UL1480A, UL2043, cUL, CE |
| Included Accessories | Tile bridge, paint shield, flex conduit clamp, wire nuts |
| Optional Accessories | Pre-construction bracket (AC-CMEZ-6/8-PCB), junction box (AC-CM-EZ-JBOX) |
| Backcan Dimensions (H x Dia) | 5.75" (146.1 mm) x 9.67" (245.6 mm) |
| Carton Dimensions (H x W x D) | 8.25" (209.55 mm) x 13" (330.2 mm) x 13" (330.2 mm) |
| Shipping Weight | 10.65 lbs (4.83 kg) |
