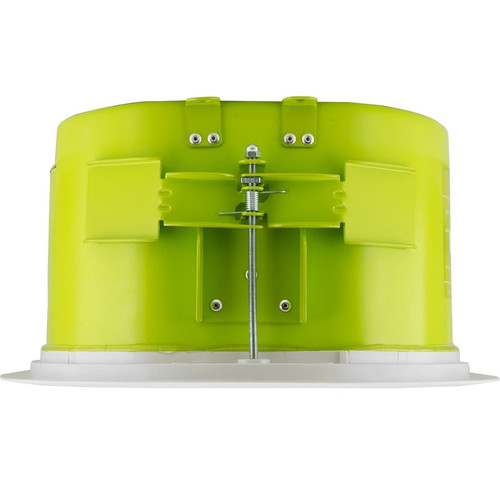

The SoundTube CM82-EZ-II 8-inch In-Ceiling Speaker is the next generation version of the CM82-EZ with improved and additional features. It has one 8.0-inch (203 mm) polypropylene woofer with butyl rubber surround and one 1.0-inch (25.4 mm) silk dome tweeter. Easy-access six-position tap switch for 25/70.7/100-volt and 16-ohm transformer bypass settings allows for easy ordering, stocking, and installation. Reduced amplification costs and maximum efficiency, 89.0 dB sensitivity, 16 ohm impedance, and a sealed enclosure. Superior voice intelligibility with an average coverage angle of 95° (2 - 10 kHz, independently verified). Cost-effective 16 ohm settings allow for the use of multiples of two, four, or six speakers in a system using a standard amplifier without a transformer. Incorporates a painted steel grille with a rust inhibitor for lasting durability. Ceramic input terminal accepts up to 10-gauge plenum-rated signal wire and includes thermal fuse. Suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. Adaptable to ceiling thicknesses ranging from 0.04 inch (0.9 mm) to 1.60 inch (40.6 mm). UL 1480 (UEAY) and 2043, cUL, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved.
| Enclosure Properties | ABS Glass Fiber Reinforced, Injection Molded, Sealed |
|---|---|
| Enclosure Volume | 350 cu in / 5735.47 cu cm |
| Included Accessories | Conduit Clamp, Cover Plate, Grille, Paint Mask |
| Source Inputs | 4 Pin Ceramic Terminal |
| Coverage Angle (-6dB @ 2kHz) | 40° |
| Crossover Frequency | 3.0 kHz |
| Cutout Width/Diameter | 10.5" (266.7 mm) |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 5.4 and 7.2 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.5dB and 8.6dB |
| Frequency Response (± 10 dB) | 65 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 92 Hz - 18 kHz |
| Low Frequency Voice Coil | 1" (25.4 mm) |
| Low Pass Crossover | 6dB per octave 1st order |
| Max. Ceiling Thickness | 1.6" (40.6 mm) |
| Max. Continuous Power RMS | 64W |
| Max. Program Power | 128W |
| Minimum Impedance (Ω Ohms) | 17.2Ω |
| Minimum Ceiling Thickness | 0.04" (0.9 mm) |
| Network Type (High Pass) | 6 dB per octave 1st order |
| Nominal Impedance (Ω Ohms) | 16Ω |
| Tweeter Driver | 1" Silk Dome |
| Woofer Driver | 6.5" Treated Fiber Cone w/ Cloth Surround |
| Sensitivity dB @ 1W/1M | 89dB |
| Sensitivity dB @ 2.83V/1M | 86dB |
| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 16 Ohm direct |
| Transformer Taps (25V/70.0V/100V) | 8W/64W/64W |
| Visible Dimensions (H x Dia) | 0.34" (8.6 mm) x 11.75" (298.5 mm) |
| Backcan Dimensions (H x Dia) | 5.75" (146.1 mm) x 9.67" (245.6 mm) |
| Carton Dimensions (H x W x D) | 8.25" (209.55 mm) x 13" (330.2 mm) x 13" (330.2 mm) |
| Shipping Weight | 10.65 lbs (4.83 kg) |
