SoundTube CM82-EZs-FS 8" Coaxial In-Ceiling Shallow Backcan Fire Signaling Speaker- White (Discontinued)

Description

Details

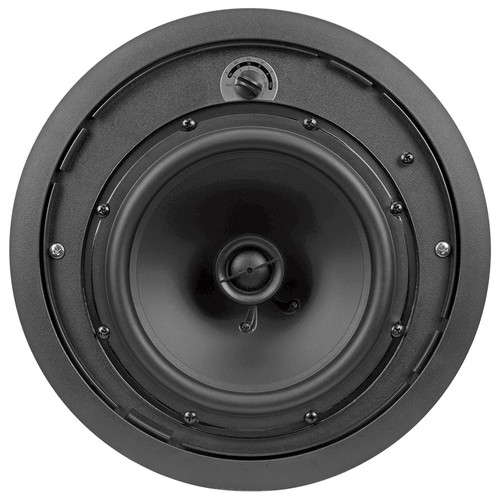

The SoundTube CM82-EZs-FS 8" Coaxial In-Ceiling Fire Signaling Shallow Backcan Speaker incorporates an 8-inch polypropylene driver with a butyl rubber surround in a sealed drawn steel backcan, which allows this speaker to deliver maximum frequency response (82 Hz – 22 kHz, - 10 dB) in an integrated enclosure design.

Mounting hardware is included for the CM82-EZs-FS Speaker, which features a constant-tension fixed-wing mounting system with a 21-gauge “full-metal” steel tile bridge ensuring rapid and secure installation in any sheet rock or drop-tile application. For easy installation, this series includes a color-coded (green) tile bridge and optional pre-construction bracket, five-position tap switch for 25-, 70.7- and 100-volt applications.

Features

Features

Engineered for applications with limited plenum space incorporating a SoundTube-specific shallow backcan with an installed depth of 3.5"
One 8" polypropylene woofer with butyl rubber surround and one 1.0" silk dome tweeter
Easy-access five-position tap switch for 25/70.7/100-volt settings allows for easy installation
Reduced amplification costs and maximum efficiency of 88 dB sensitivity, 16 ohm impedance and a sealed enclosure
Superior voice intelligibility with an average coverage angle of 105° (2–10 kHz, independently verified)

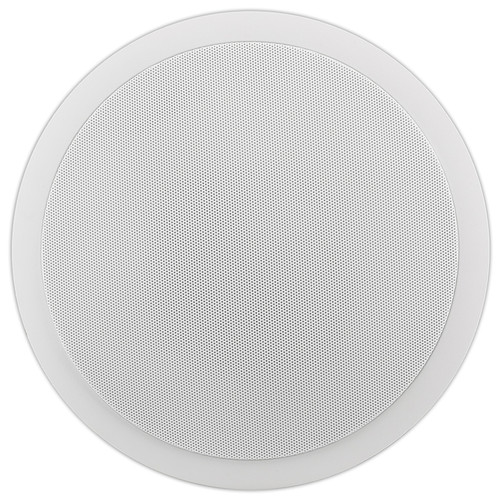

Incorporates a painted steel grille with rust inhibitor for lasting durability
Adaptable to ceiling thicknesses ranging from 0.04" to 1.60"
10 μF capacitor provided on input circuit for use with DC supervision circuits
UL 1480 (UUMW) and 2043, cUL, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved
High-quality black or white painted finish
Included Accessories: Tile bridge, UL-listed 0.5" conduit clamp, and paint shield

Specification

Product Type	Fire Rated Ceiling Speaker
Impedance (Nominal)	16 ohm
Sensitivity dB @ 2.83 V/1 m	85 dB
Sensitivity dB @ 1 W/1 m	88 dB
Frequency Response (- 3 dB)	109 Hz - 18 kHz
Frequency Response (-10 dB)	82 Hz - 22 kHz
Maximum Program Power	128 Watts
Maximum Continuous Power RMS	64 Watts
Maximum Power SPL @ 1 m	99 dB
Coverage Angle (-6 dB @ 2 kHz)	105º
Coverage Angle (-6 dB @ 10 kHz)	35º
Coverage Angle (averaged 2-10 kHz)	105º
Directivity Factor (Q)	5.2 (Averaged 100 Hz - 10 kHz) ; 6.8 (2 kHz)
Directivity Index (DI)	5.5 dB (Averaged 100 Hz - 10 kHz) ; 8.3 dB (2 kHz)
Tap Selector	Five-Position Rotary Switch
Transducer - Low-Frequency Driver	8" Polypropylene Cone, Butyl Rubber Surround
Transducer - High-Frequency Driver	1.0" Silk Dome Tweeter
Low-Frequency Voice Coil	1.0"
Crossover Frequency	3.0 kHz
Network Type: Low Pass	6 dB Per Octave, 1st Order
Network Type: High Pass	6 dB Per Octave, 1st Order
Enclosure Material	Drawn Steel Backcan With ABS Baffle
Grille	Painted Steel
Inputs	Ceramic Terminal Strip
Packaging	One Speaker Per Box
Included Accessories	Tile Bridge, UL-Listed Flex Conduit Clamp, Paint Shield
Colors	Black or White
Backcan Dimensions (H x Dia)	3.75" (95 mm) x 9.67" (246 mm)
Visible Dimensions (H x Dia)	0.34" (8.6 mm) x 11.75" (299 mm)
Mounting Hole Diameter	10.5" (267 mm)
Minimum – Maximum Ceiling Thickness	0.04" - 1.60" (0.9 mm - 40.6 mm)
Weight	7 lbs (3.2 kg)
Shipping Weight	9 lbs (4.1 kg)
