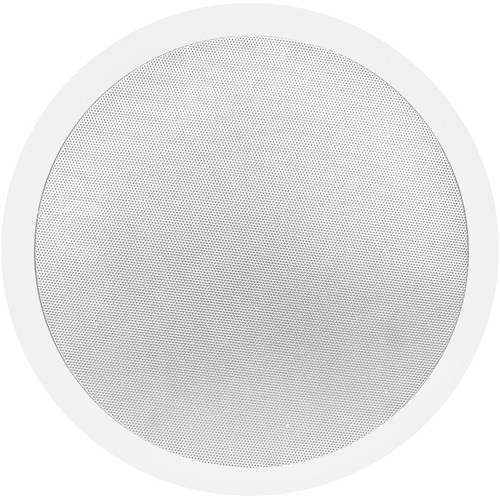

SoundTube CM82-EZs-II 8" Coaxial Ceiling Shallow Can Speaker - White (B-Stock)

Part #:
CM82-EZs-II-WH
Model #:
CM82-EZs-II
Was $233.00
Now: $151.99
You save $81.01
Availability: In Stock & Shipping Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The SoundTube CM82-EZs-II is an 8", coaxial, two-way, blind-mount, in-ceiling speaker that delivers true high efficiency and performance across the operating bandwidth.

Description

B-Stock. Authorized SoundTube Dealer. Factory-renewed performance and value. Returns are thoroughly inspected and tested to meet strict factory standards. Documentation and Packaging as new product.

SoundTube CM82-EZs-II 8" Coaxial In-Ceiling Shallow Can Speaker

The CM82-EZs-II is an 8-inch, coaxial, two-way, blind-mount, in-ceiling speaker that delivers true high efficiency and performance across the operating bandwidth. By incorporating an 8-inch polypropylene driver with a butyl rubber surround in a sealed drawn steel backcan, this speaker delivers maximum frequency response (82 Hz – 22 kHz, - 10 dB) in an integrated enclosure design.

Mounting hardware is included and features a constant-tension fixed-wing mounting system with a 21-gauge "fullmetal" steel tile bridge ensuring rapid and secure installation in any sheetrock or drop-tile application. For easy ordering stocking and installation, this series includes a color-coded (green) tile bridge and optional pre-construction bracket, six-position tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position.

Features

  • Engineered for applications with limited plenum space incorporating a SoundTube-specific shallow backcan with an install depth of 3.5"
  • One 8" (203 mm) polypropylene woofer with butyl rubber surround and one 1.0" (25.4 mm) silk dome tweeter
  • Easy-access six-position tap switch for 25/70.7/100-volt and 16 ohm transformer bypass settings allows for easy ordering, stocking and installation
  • Reduced amplification costs and maximum efficiency of 88.0 dB sensitivity, 16 ohm impedance and a sealed enclosure
  • Superior voice intelligibility with an average coverage angle of 105° (2–10 kHz, independently verified)
  • Cost-effective 16 ohm settings allows for the use of multiples of two, four, or six speakers in a system using a standard amplifier without a transformer
  • Incorporates a painted steel grille with rust inhibitor for lasting durability
  • Adaptable to ceiling thicknesses ranging from 0.04" (0.9 mm) to 1.60" (40.6 mm)
  • UL 1480 (UEAY) and 2043, cUL, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved
  • High-quality black or white painted finish. Custom colors available
  • Included accessories: tile bridge, UL-listed 0.5" conduit clamp, paint shield and two wire nuts
  • Optional accessories: color-coded (green) pre-construction bracket (AC-CMEZ6/8-PCB) and junction box (AC-CM-EZ-JBOX)

Specifications

Enclosure Properties ABS Glass Fiber Reinforced, Injection Molded, Sealed
Enclosure Volume 350 cu in / 5735.47 cu cm
Included Accessories Conduit Clamp, Cover Plate, Grille, Paint Mask
Source Inputs 4 Pin Ceramic Terminal
Coverage Angle (-6 dB @ 2kHz) 40°
Crossover Frequency 3.0 kHz
Cutout Width/Diameter 10.5" (266.7 mm)
Directivity Factor (Q) 5.4 dB and 7.2 dB (Averaged 100Hz - 10kHz, @ 2kHz)
Directivity Index (DI) 5.5 dB and 8.6 dB (Averaged 100Hz - 10kHz, @ 2kHz)
Frequency Response (± 10 dB) 65 Hz - 22 kHz
Frequency Response (± 3 dB) 92 Hz - 18 kHz
Low Frequency Voice Coil 1" (25.4 mm)
Low Pass Crossover 6 dB per octave 1st order
Max. Ceiling Thickness 1.6" (40.6 mm)
Max. Continuous Power RMS 64W
Max. Program Power 128W
Minimum Impedance (Ω Ohms) 17.2Ω
Minimum Ceiling Thickness 0.04" (0.9 mm)
Network Type (High Pass) 6 dB per octave 1st order
Nominal Impedance (Ω Ohms) 16Ω
Tweeter Driver 1" Silk Dome
Woofer Driver 8" Treated Fiber Cone w/Cloth Surround
Sensitivity dB @ 1W/1M 89 dB
Sensitivity dB @ 2.83V/1M 86 dB
Tap Selector Rotary Switch
Transformer Options 25 / 70.7 / 100V, 16 Ohm direct
Transformer Taps (25V/70.0V/100V) 8W / 64W / 64W
Visible Dimension (H x Dia) 0.34" (8.6 mm) x 11.75" (298.5 mm)
Backcan (H x Dia) 5.75" (146.1 mm) x 9.67" (245.6 mm)
Carton Dimensions (H x W x D) 6.25" (158.75 mm) x 13.25" (336.55 mm) x 13.25" (336.55 mm)
Shipping Weight 9.35 lbs (4.24 kg)
