The SoundTube IPD-SM52-EZ-WX is a Dante-enabled, weather-resistant surface-mount speaker with a built-in 40W PoE amplifier. It features a 5.25" woofer, 1" tweeter, IP65 rating, and is UL 60065 approved. Ideal for indoor/outdoor audio over IP networks.

Description

SoundTube IPD-SM52-EZ-WX 5.25" IP-Addressable Dante-Enabled Speaker - Black

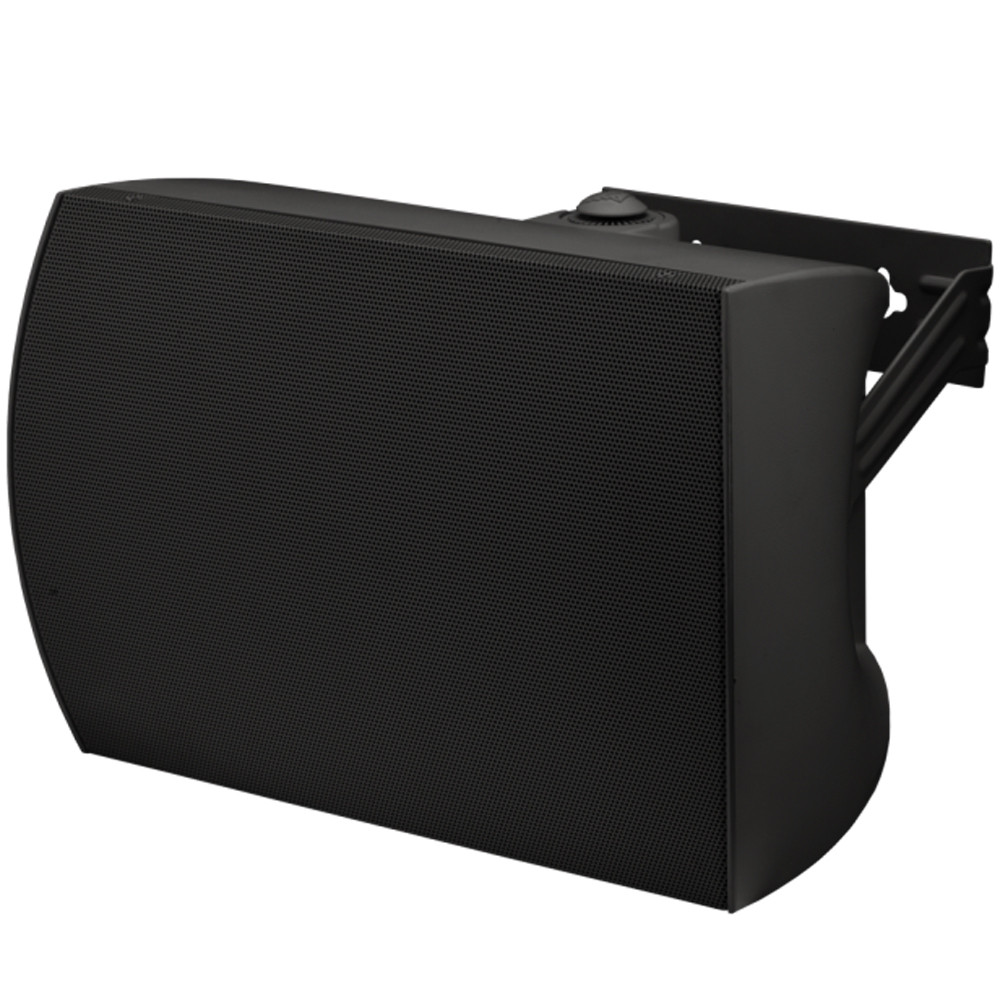

The IPD-SM52-EZ-WX is a Dante-enabled, weather resistant, digital end-point solution in a surface-mount loud speaker. This speaker includes a 40W PoE amplifier for simplified installation and set up. Driver components consists of one 5.25 inch polypropylene woofer and one 1.0 inch soft dome tweeter in a ported enclosure. The included pre-mountable surface-mount bracket allows for quick and easy installation and the powder-coated aluminum grille keep the speaker looking good in most environments. The system is UL 60065 approved. IP-Rating: IP65. Included accessories: Safety cable, wall mount bracket, conduit connector and port plug. If used outdoors, port plugs must be installed to ensure protection from moisture.

*Note: If used indoors, remove the grille and take the plug out of the port for greater bass output. Port must remain plugged to maintain IP65 rating in outdoor use. Also: SoundTube IPD speakers are NOT compatible with PoE++. 30W PoE maximum (or 40W maximum with STNet Switch II)

Features

  • STNet IP-addressable, self-powered (PoE) speaker
  • Dante™ and AES67 I/O for interconnectivity with Dante and AES67-enabled audio systems
  • BroadBeam Ring™ delivers a consistent dispersion pattern up to 10 kHz for maximum coverage area per speaker
  • One 5.25” (133 mm) polypropylene woofer and one 1” (25.4 mm) soft dome tweeter
  • Fast connection of power, audio, and control functions via one CAT5 or CAT6 cable
  • 40 W PoE provided by SoundTube STNet Switch; also works with standard PoE+ and PoE switches
  • Provides report-back on any problems via SoundTube software
  • Aluminum grille with powder-coat finish
  • Vertical and horizontal mounting offer precision aiming for indoor and outdoor applications
  • Included accessories: safety cable, wall-mount bracket, port plug, Allen wrench, and watertight strain-relief bushing

Specifications

Frequency Response (-3 dB) 65 Hz - 20 kHz | Sealed: 80 Hz - 20 kHz
Low Frequency (-10 dB) 55 Hz - 20 kHz | Sealed: 62 Hz - 20 kHz
Max. SPL dB @ 1 M RMS 97 dB
Low-Frequency Driver 1 x 5.25" (133 mm) polypropylene cone, butyl rubber surround
High-Frequency Driver 1" (25 mm) soft dome tweeter
Network Type: Low-Pass 12 dB per octave, 2nd order
Network Type: High-Pass 12 dB per octave, 2nd order
Enclosure Material High Impact Poly Styrene (HIPS)
Grille Aluminum with powder-coat finish
Dimensions (H x W x D) 11.88" (301.63 mm) x 7.5" (190.5 mm) x 6.63" (168.28 mm)
Weight 7.74 lbs (3.35 kg)
