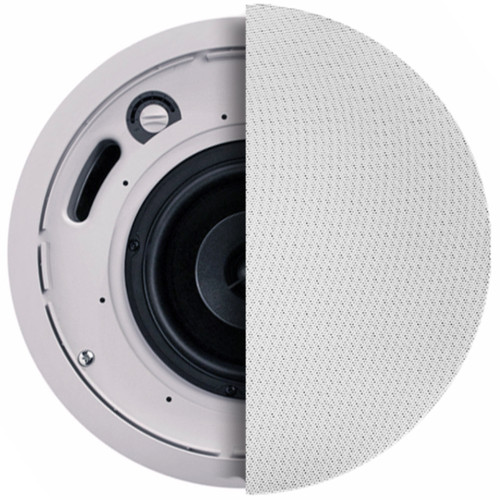

SoundTube IPD4-CM62-BGM-II 6" IP-Addressable 4-Channel In-Ceiling Speaker - White
Offering an economical option for expansion of audio coverage in a digital speaker system, this Dante®-enabled coaxial in-ceiling speaker has output terminals for connection and power of up to three additional standard CM62-BGM speakers. The speaker incorporates one 6.5" (165 mm) polypropylene woofer with rubber surround and one 1.0" (25.4 mm) silk dome tweeter. BroadBeam Ring™ technology and a tuned port on the baffle provide smooth off-axis performance, mid-range clarity and bass response to 60 Hz (-10 dB). Low latency digital audio, power, and control are delivered to the speaker via standard category cable; connection is made on the other end to the STNet-Switch or other PoE / PoE+ switch. May also be powered via a 24V DC barrel connector for non-PoE installations. Configuration and zoning of the speaker are accomplished via software. When combined with standard speakers, the four-speaker cluster can be split and configured to handle two separate channels of audio. Mounting hardware is included and features SoundTube®'s SpeedWing™ constant-tension fixed-wing mounting system, which accommodates material thicknesses ranging from 0.035" (0.9 mm) to 2.38" (60.4mm). UL 60065 and 2043 listed. Color-coded (green) tile bridge, UL listed conduit clamp and paint shield are included.
Note: SoundTube IPD speakers are NOT compatible with PoE++. 30W PoE maximum (or 40W maximum with STNet Switch II)
- Features
Features
- IP-addressable in-ceiling speaker
- Dante®-enabled for audio, power, and control over a single cable
- Powers up to 3 additional CM62-BGM speakers
- 6.5" woofer and 1" silk dome tweeter for clear, full-range sound
- BroadBeam Ring™ technology for wide, even coverage
- Bass response down to 60 Hz
- Can be powered by PoE/PoE+ or 24V DC
- Software-controlled zoning and setup
- Supports two audio channels with connected speakers
- Seamless magnetic grille for a clean look
- Easy mounting with SpeedWing™ system
- Includes tile bridge, conduit clamp, and paint shield
- UL 60065 and 2043 listed for safety
- Specification
Frequency Response (-3 dB) 60 Hz - 20 kHz Frequency Response (-10 dB) 55 Hz - 20 kHz Max SPL @ 1M 95 dB Source Inputs 6 Pin 5.08 mm Euroblock, RJ45 Ethernet Port Directivity Factor (Q) 5.9 and 8.0 (Averaged 100 Hz - 10 kHz, @ 2 kHz) Directivity Index (DI) 4.9 dB and 6.3 dB (Averaged 100 Hz - 10 kHz, @ 2 kHz) Low Frequency Voice Coil 1.0" (25.4 mm) Crossover Frequency 4.0 kHz Network Type: High Pass 12 dB per octave, 2nd order Enclosure Material Drawn steel backcan with ABS baffle Grille Properties Standard-Flange, Friction-Fit, White, Paintable, Painted, Steel Certifications CE, UL2043, UL60065, ETL-C/US Included Accessories Conduit Clamp, Grille, Tile Bridge Optional Accessories Tile Bridge (AC-CMEZ6/8-TB) | Black Grille (GRL-CM-BGM-II-BK) Cutout Width/Diameter 10.5" (266.7 mm) Minimum-Maximum Ceiling Thickness 0.035" (0.9 mm) - 2.5" (63.5 mm) Backcan Dimensions (H x Dia) 5.75" (146.1 mm) x 9.67" (245.6 mm) Visible Dimensions (H x Dia) 0.34" (8.6 mm) x 11.75" (298.5 mm) Weight 8 lbs (3.6 kg) Shipping Weight 11.25 lbs (5.10 kg) - Documents
