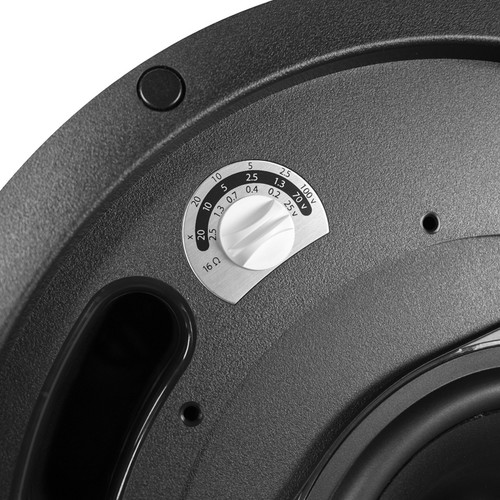

SoundTube IPD4-CM62-KIT 6.5-Inch Dante PoE In-Ceiling Speaker System
Complete Networked Audio Solution
The SoundTube IPD4-CM62-KIT is a fully integrated in-ceiling audio solution designed for modern networked audio systems. Perfectly compatible with Dante and AES67 protocols, this kit provides scalable, high-quality audio for commercial installations such as offices, retail spaces, and hospitality environments. Its PoE (Power over Ethernet) support ensures easy deployment without the need for separate power cabling.
SoundTube IPD4-CM62-BGM-II Self-Powered (PoE) Master Speaker
At the heart of the kit is the IPD4-CM62-BGM-II master speaker. This 6.5" 2-way in-ceiling speaker is IP-addressable and designed to deliver precise, clear sound across a wide listening area. With Dante/AES67 network compatibility, the master unit serves as the control hub for the satellite speakers, ensuring synchronized audio distribution throughout your space.
SoundTube CM62-BGM-II-WH Passive Satellite Speakers
The kit includes three CM62-BGM-II-WH passive satellite speakers. These high-performance in-ceiling units connect seamlessly to the master speaker, allowing for a flexible and expandable audio setup. The satellite speakers maintain consistent tonal quality and coverage, providing a cohesive sound experience across multiple zones.
Scalable and Reliable Installation
Designed with installers in mind, the IPD4-CM62-KIT offers a streamlined setup process and versatile deployment options. Its networked design allows for easy expansion, making it simple to scale your audio system to larger spaces without compromising sound quality. The kit combines convenience, reliability, and professional-grade audio performance, making it an ideal choice for distributed commercial audio systems.
- Features
Features
Overall Kit Features
- Complete Dante/AES67-enabled in-ceiling audio solution
- 1 Master IPD4-CM62-BGM-II + 3 CM62-BGM-II-WH passive satellites
- Ideal for distributed audio in offices, retail, hospitality, and public spaces
- Supports scalable installation with networked convenience
- PoE-powered for simplified cabling and deployment
IPD4-CM62-BGM-II Master Speaker
- 6.5" 2-way in-ceiling speaker with IP-addressable control
- Dante and AES67 network compatible
- Powered via PoE (Power over Ethernet)
- Serves as the master unit controlling passive satellites
- High-quality sound for distributed audio systems
- Easy network integration and setup
CM62-BGM-II-WH Passive Satellite Speakers
- High-performance 6.5" in-ceiling passive speakers
- Connects directly to the IPD4-CM62 master for audio distribution
- Provides consistent tonal quality across multiple zones
- Scalable solution for expanding networked audio coverage
- White finish for seamless ceiling integration
- Designed for commercial and professional installations
- Specification
IPD4-CM62-BGM-II Speaker Type 2-way in-ceiling, IP-addressable Woofer 6.5" low-frequency driver Tweeter 1" high-frequency driver Network Compatibility Dante / AES67 Power PoE (Power over Ethernet) IP Control Yes, acts as master unit for satellites Frequency Response 60 Hz - 20 kHz Mounting In-ceiling, flush mount Visible Dimensions (H x Dia) 0.34" (8.6 mm) x 11.75" (298.5 mm) Weight 8 lbs (3.6 kg) CM62-BGM-II-WH Speaker Type 2-way in-ceiling passive speaker Woofer 6.5" low-frequency driver Tweeter 0.75" high-frequency driver Connectivity Wired to IPD4-CM62 master Power Handling Matches master unit output Frequency Response 70 Hz - 20 kHz Mounting In-ceiling, flush mount Finish White (WH), paintable for ceiling integration Visible Dimensions (H x Dia) 0.34" (8.6 mm) x 11.75" (298.5 mm) Weight 10.4 lbs (4.72 kg) - Documents
- In The Box
In The Box
- (1) IPD4-CM62-BGM-II White Master Speaker (PoE-Powered)
- (3) CM62-BGM-II-WH Passive Satellite Speakers
- (4) Tile Bridges
- (4) Conduit Clamps
- (4) Paintable Steel Grilles (White)
