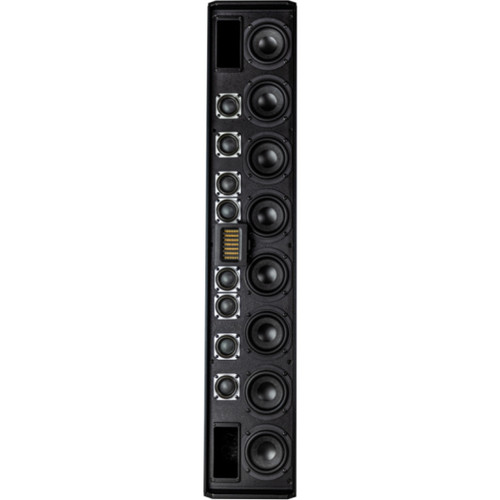

SoundTube LA880i-II 3-Way Line Array Point Source Loudspeaker - Black

Part #:
LA880i-II-BK
Model #:
LA880i-II
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The SoundTube LA880i-II line array speaker in black features a 3-way LAPS design with 8 woofers, 8 midrange drivers, and a ribbon tweeter. Provides short near-field and robust far-field coverage for commercial installations.

Description

SoundTube LA880i-II 3-Way Black Line Array Speaker

The LA880i-II line array speaker in black is an advanced 3-way LAPS (Line Array-Point Source) loudspeaker engineered for both near-field clarity and extended far-field coverage. Unlike typical column line arrays, the LA880i-II employs frequency tapering of low and mid frequency bands to maintain a consistent ratio of array height to radiated wavelength. This ensures a stable vertical beamwidth that outperforms many single-box line arrays in professional audio environments.

Featuring eight 4.5-inch woofers, eight 2-inch midrange drivers, and a 2.5-inch planar magnet (ribbon) high-frequency driver, the LA880i-II delivers smooth, detailed high frequencies and exceptional coverage. Its passive, fixed-length column design makes it ideal for scalable commercial audio installations in retail, hospitality, education, and other venues where a sleek black finish is preferred for unobtrusive integration.

The enclosure is constructed from durable MDF and aluminum with a powder-coated, paintable steel grille, allowing the black finish to blend seamlessly into any interior. Flexible mounting options include surface, pole, ceiling, or flown installations (mounting accessories sold separately). Connection is fast and easy using Euroblock and SpeakON (Neutrik NL4) connectors. Included accessories are a safety cable mounting plate, mounting bolts, Euroblock connector, and safety cable.

Features

  • Passive 3-way LAPS (Line Array-Point Source) design for short near-field and robust far-field performance
  • 8 x 4.5-inch woofers, 8 x 2-inch neodymium-motor midrange drivers, 1 x 2.5-inch planar magnet (ribbon) tweeter
  • Frequency tapering maintains a consistent vertical beamwidth
  • Paintable MDF and aluminum enclosure with powder-coated steel grille in black finish
  • Flexible mounting options: surface, pole, ceiling, or flown (mounting accessories sold separately)
  • Euroblock and SpeakOn connectors for fast connections and daisy chaining
  • Included accessories: safety cable mounting plate, mounting bolts, Euroblock connector, safety cable
  • Mounting brackets not included

Specifications

System Type 3-way full range line array, ported
Impedance (Rated)
Sensitivity dB @ 2.83V / 1M 91 dB
Sensitivity dB @ 1W / 1M 88 dB
Frequency Response (±3 dB) 71 Hz - 22 kHz
Frequency Response (±10 dB) 58 Hz - 22 kHz
Max. Program Power 500W
Max. Continuous Power 300W
Max. SPL dB @ 1M 113 dB
Coverage Angle (±6 dB @ 2 kHz) 104° Horizontal | 30° Vertical
Coverage Angle (±6 dB @ 10 kHz) 77° Horizontal | 51° Vertical
Coverage Angle (Avg. 2-10 kHz) 91° Horizontal | 52° Vertical (200-10K)
Directivity Factor (Q) 6.9
Directivity Index (DI) 9.2 dB
Low-Frequency Driver 8 - 102 mm (4.5") woofers, paper with rubber surround
Mid-Frequency Driver 8 - 51 mm (2") midrange, paper with foam surround
High-Frequency Driver 63.5 mm (2.5") planar magnetic ribbon tweeter
Low-Frequency Voice Coil 1" (25.4 mm)
Crossover Frequency 1.1 kHz and 2.5 kHz
Network Type: Low Pass and High Pass 12 dB/Oct
Enclosure Material Painted MDF and aluminum
Grille Powder-coated black steel
Inputs 4-pin, 5.08 mm Euroblock or SpeakOn for individual or daisy chain connection
Included Accessories Safety bracket, safety cable, euroblock connector
Certifications CE, RoHS
Dimensions (H x W x D) 41" (1041.4 mm) x 7.56" (192.1 mm) x 10.75" (273.1 mm)
Net Weight 55 lbs (24.95 kg)
Shipping Weight 80 lbs (36.29 kg)

DOCUMENTS

In The Box

  • (1) LA880i-II Line Array Speaker and Grille (Black Finish)
  • (1) AC-LA8-BACK Back Plate
  • (1) 4-Pin Euroblock Connector
  • (1) 10' Safety Cable
  • (9) Mounting Bolts
  • (2) Translucent Zip Ties
