- Description
Details

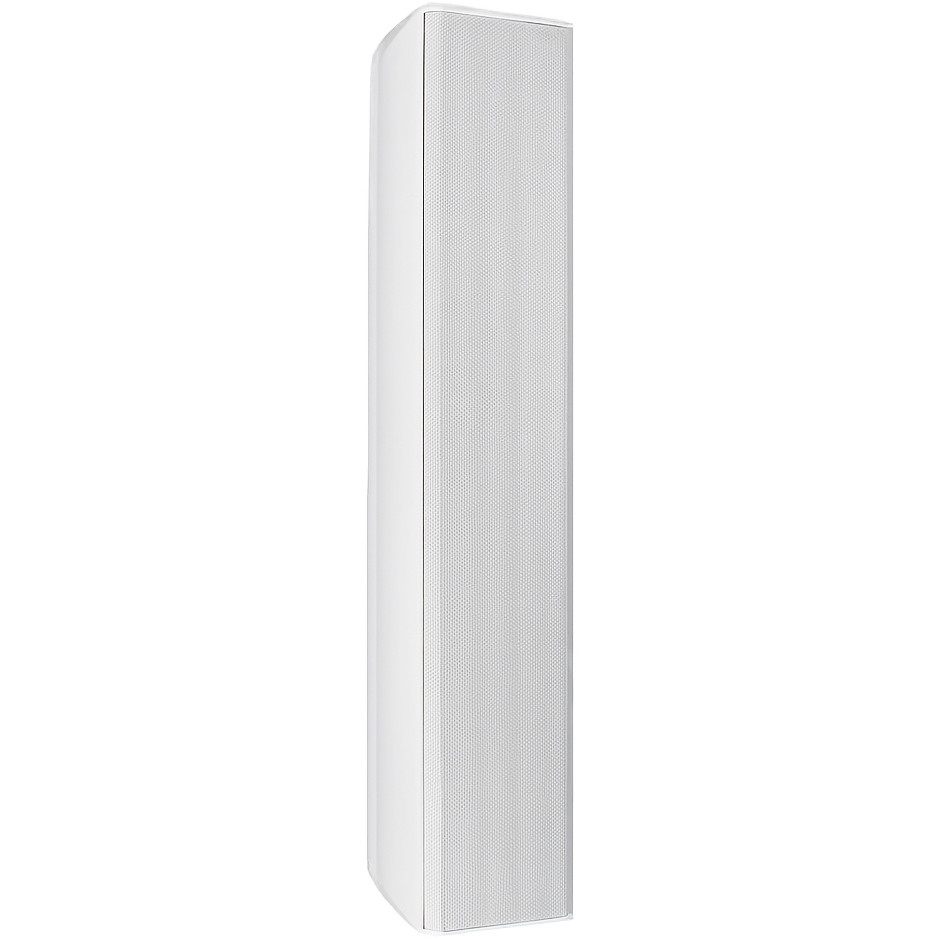

SoundTube LA880i-II 3-Way White Line Array Speaker
The LA880i-II line array speaker in white is an advanced 3-way LAPS (Line Array-Point Source) loudspeaker engineered for both near-field clarity and extended far-field coverage. Unlike typical column line arrays, the LA880i-II employs frequency tapering of low and mid frequency bands to maintain a consistent ratio of array height to radiated wavelength. This ensures a stable vertical beamwidth that outperforms many single-box line arrays in commercial audio environments.
Featuring eight 4.5-inch woofers, eight 2-inch midrange drivers, and a 2.5-inch planar magnet (ribbon) high-frequency driver, the white LA880i-II delivers smooth, detailed high frequencies and exceptional coverage. Its passive, fixed-length column design makes it ideal for scalable commercial audio installations in retail, hospitality, education, and other professional venues where a clean, unobtrusive white finish is preferred.
The enclosure is constructed from durable MDF and aluminum with a powder-coated, paintable steel grille, allowing the white finish to seamlessly blend into any interior. Flexible mounting options include surface, pole, ceiling, or flown installations (mounting accessories sold separately). Connection is fast and easy using Euroblock and SpeakOn connectors.
- Features
Features
- Passive 3-way LAPS (Line Array-Point Source) design for short near-field and robust far-field performance

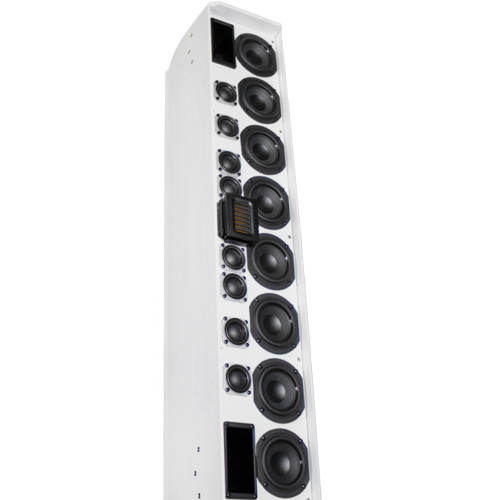

- 8 x 4.5-inch woofers, 8 x 2-inch neodymium-motor midrange drivers, 1 x 2.5-inch planar magnet (ribbon) tweeter
- Frequency tapering maintains a consistent vertical beamwidth
- Paintable MDF and aluminum enclosure with powder-coated steel grille in white finish
- Flexible mounting options: surface, pole, ceiling, or flown (mounting accessories sold separately)
- Euroblock and SpeakOn connectors for fast connections and daisy chaining
- Included accessories: safety cable mounting plate, mounting bolts, Euroblock connector, safety cable
- Mounting brackets not included
- Specification
System Type 3-way full range line array, ported Impedance (Rated) 4Ω Sensitivity dB @ 2.83V / 1M 91 dB Sensitivity dB @ 1W / 1M 88 dB Frequency Response (±3 dB) 71 Hz - 22 kHz Frequency Response (±10 dB) 58 Hz - 22 kHz Max. Program Power 500W Max. Continuous Power 300W Max. SPL dB @ 1M 113 dB Coverage Angle (±6 dB @ 2 kHz) 104° Horizontal | 30° Vertical Coverage Angle (±6 dB @ 10 kHz) 77° Horizontal | 51° Vertical Coverage Angle (Avg. 2-10 kHz) 91° Horizontal | 52° Vertical (200-10K) Directivity Factor (Q) 6.9 Directivity Index (DI) 9.2 dB Low-Frequency Driver 8 - 102 mm (4.5") woofers, paper with rubber surround Mid-Frequency Driver 8 - 51 mm (2") midrange, paper with foam surround High-Frequency Driver 63.5 mm (2.5") planar magnetic ribbon tweeter Low-Frequency Voice Coil 1" (25.4 mm) Crossover Frequency 1.1 kHz and 2.5 kHz Network Type: Low Pass and High Pass 12 dB/Oct Enclosure Material Painted MDF and aluminum Grille Powder-coated white steel Inputs 4-pin, 5.08 mm Euroblock or SpeakOn for individual or daisy chain connection Included Accessories Safety bracket, safety cable, euroblock connector Certifications CE, RoHS Dimensions (H x W x D) 41" (1041.4 mm) x 7.56" (192.1 mm) x 10.75" (273.1 mm) Net Weight 55 lbs (24.95 kg) Shipping Weight 80 lbs (36.29 kg) - Documents
Documents
- In The Box
In The Box
- (1) LA880i-II Line Array Speaker and Grille (White Finish)
- (1) AC-LA8-BACK Back Plate
- (1) 4-Pin Euroblock Connector
- (1) 10' Safety Cable
- (9) Mounting Bolts
- (2) Translucent Zip Ties
