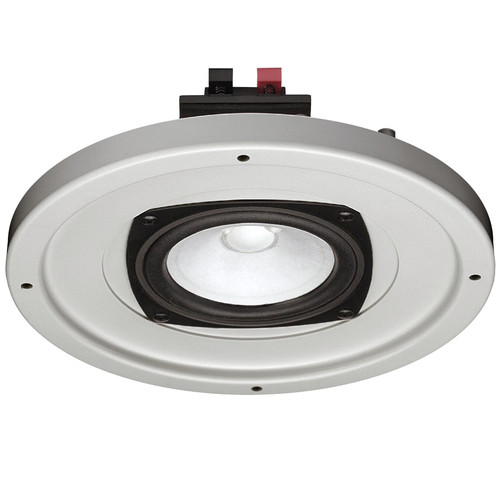

SoundTube RF-41-20-SG 4" Full Range Blind-Mount Ceiling Speaker with Grille (Discontinued)

SoundTube RF-41-20-SG 4" Full Range Blind-Mount Ceiling Speaker with Grille (Discontinued)

Name: SoundTube RF-41-20-SG 4" Full Range Blind-Mount Ceiling Speaker with Grille (Discontinued)
Brand: SoundTube
SKU: SOUNDT-RF-41-20-SG-WH
Price: 103 USD
Availability: OutOfStock

Write a Review

Part #:

RF-41-20-SG-WH

Model #:

RF-41-20-SG

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The SoundTube RF41-20 is a 4-inch, full-range, blindmount, in-ceiling speaker which delivers true high-efficiency and performance across the operating bandwidth. Developed specifically to retrofit into a standard 8-inch backcan, the RF41-20 is ideal for retrofits in hotels, retail stores, restaurants, airports, churches (under eaves) or boardrooms.

Description

SoundTube RF-41-20-SG 4" Blind-Mount Ceiling Speaker with Grille

The RF41-20 is a 4-inch, full range, blind-mount, in-ceiling speaker which delivers true high efficiency and performance across the operating bandwidth. The full-range drive design delivers maximum frequency response (71 HZ - 22 kHz, - 10 dB) in a compact design. Mounting hardware is included and features fast and easy retrofit connections. For easy ordering, stocking, and installation, the RF41-20 includes a five-position tap switch for 25-, 70.7-, and 100-volt applications with a transformer bypass position.

Features

One full-range 4" (102 mm) treated fiber woofer with cloth surround
Easy-access five-position tap switch for 25/70.7/100V and transformer bypass position plus spring terminals allow for rapid ordering, stocking and installation
Engineered for installations with limited plenum space or retrofit applications
Reduced amplification costs and maximum efficiency with 88.5 dB sensitivity and 8 ohm impedance
Superior voice intelligibility with an average coverage angle of 110° (2 – 10 kHz, independently verified).
Fits standard 8" backcans for retrofits
High-quality white paint finish grille
Optional accessories: White metal grille (AC-GRL-RF41) sold only in packs of 4

Specifications

System Type	4" Full range, in-ceiling, raw frame (20W transformer for 25/70.7/100V or 8 Ohm direct)
Impedance (nominal)	8 ohm
Sensitivity dB @ 2.83V/1M	88.5 dB
Sensitivity dB @ 1W/1M	88.5 dB
Frequency Response (- 3 dB)	155 Hz - 22 kHz
Frequency Response (-10 dB)	71 Hz - 22 kHz
Max. Program Power	40W
Max. Continuous Power RMS	20W
Max. Power SPL @ 1 M	101.5 dB
Coverage Angle (-6 dB @ 2 kHz)	145°
Coverage Angle (-6 dB @ 10 kHz)	55°
Coverage Angle (Avg. from 2 - 10 kHZ)	110°
Directivity Factor (Q)	4.9 (averaged 100 Hz - 10 kHz); 4.6 (2 kHz)
Directivity Index (DI) dB	5.7 dB (averaged 100 Hz - 10 kHz); 6.6 dB (2 kHz)
Tap Selector	Five-position rotary switch with transformer bypass position
Transducer - Full-Range Driver	4" (102 mm) treated paper cone, cloth surround
Low Frequency Voice Coil	0.79" (20.0 mm)
Enclosure Material	Injection molded ABS baffle, separate back can
Grille	White metal grille (AC-GRL-RF41)
Overall Dimenstions (H x Dia.)	2.71" (68.83 mm) x 8.26" (209.8 mm)
Visible Dimensions (H x Dia.)	0.25" (6.4 mm) x 12.60" (320 mm)
Mounting Hole Diameter	7.56" (192 mm)
Weight	3.5 lbs (1.6 kg)
Shipping Weight	4 lbs (1.8 kg)
