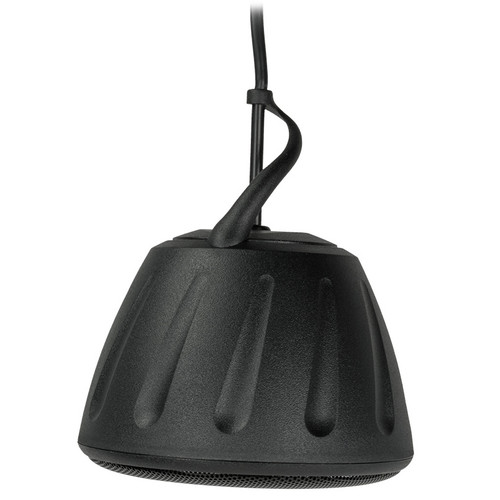

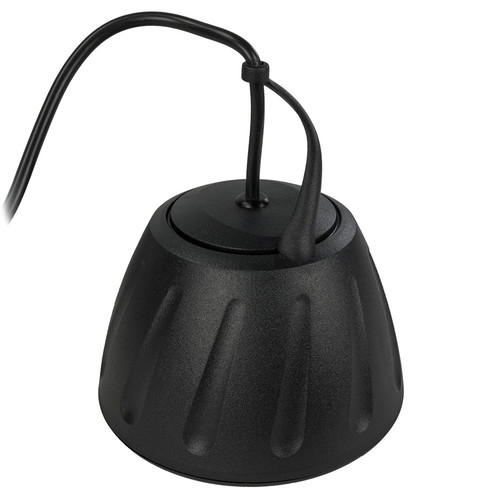

SoundTube RS31-EZ 3" Pendant-Mount Weather-Resistant Hanging Speaker
The SoundTube RS31-EZ is a premium full-range 3" pendant-mount speaker, with overall dimensions smaller than a 4" sphere. The RS31-EZ incorporates a 10ft length of speaker signal/hanging cable for on-ceiling applications. Components have been weatherized for indoor/outdoor applications.

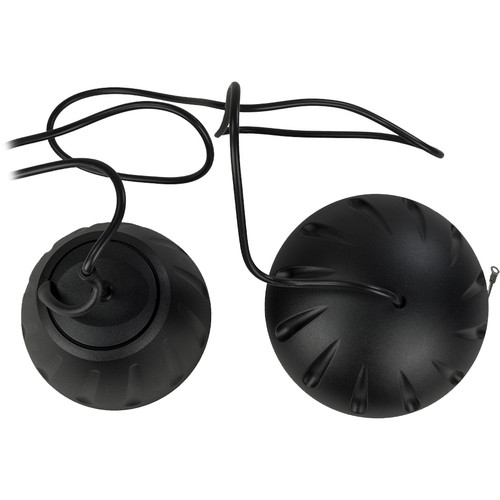

The RS31-EZis an 8 Ohm speaker without a transformer. The speaker utilizes the all-in-one ceiling mount system designed to retrofit in most j-boxes. The cover plate is included to hide mounting element and hold excess signal/hanging cable.
Engineered for rapid installation and low profile mounting for smaller venues, the RS31-EZis ideal for nished ceiling applications in retail, restaurants, conference rooms, patio areas, educational facilities or any setting where full-range intelligibility, unobtrusive design, and installation ease are paramount.
- Features
Features
- 3" (76.1 mm) polypropylene driver with butyl rubber surround
- Weatherized components for indoor/outdoor applications
- Ultra-low profile ZeroReflection™ ABS enclosure (4.35" diameter by 4.35" height without stabilizing arm)
- Corrosion-resistant, powder-coated aluminum grille
- UL 1480 (UEAY) planned
- High quality black or white paint finish
- Specification
Color Black Certifications CCC, CE, RoHS, UL1480A Enclosure Properties ABS Glass Fiber Reinforced, Injection Molded, Sealed Enclosure Volume 60 cu in (983.22 cu cm) Included Accessories Cover Plate, Hanging Hardware, Wire Nuts Optional Accessories Black Grille (GRL-RS31-BK)|Black Split Loom Tubing (AC-SLT-10-BK)|Transformer (AC-RS31-XFMR) Source Inputs Terminal Strip Coverage Angle (-6dB @ 2kHz) 45° Directivity Factor (Q) 4.9 and 7.1 (Averaged 100Hz - 10kHz, @ 2kHz) Directivity Index (DI) dB 5.1dB and 8.5dB (Averaged 100Hz - 10kHz, @ 2kHz) Frequency Response (± 10 dB) 120 Hz - 22 kHz Frequency Response (± 3 dB) 170 Hz - 14 kHz Grille Properties Aluminum, Powder-Coated Low Frequency Voice Coil 0.75" (19 mm) Magnetically Boosted No Max. Continuous Power RMS 20W Max. Program Power 40W Mounting Depth 3.81" (96.8 mm) Nominal Impedance (Ω Ohms) 8 Ω Fullrange Driver 3" Polypropylene driver with butyl rubber surround Sensitivity dB @ 1W/1M 85 dB Sensitivity dB @ 2.83V/1M 85 dB Tap Selector Terminal Block Transformer Options 25 / 70.7 / 100 V Shipping Weight 2.4 lbs (1.08 kg) - Documents
