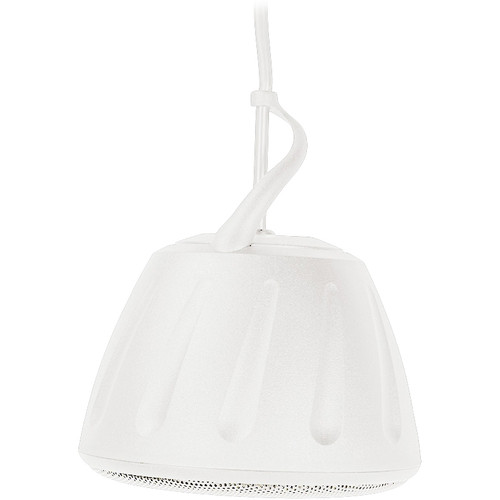

SoundTube RS31-EZ 3" Pendant Mount Weather-Resistant Hanging Speaker - White (Discontinued)

SoundTube RS31-EZ 3" Pendant Mount Weather-Resistant Hanging Speaker - White (Discontinued)

Name: SoundTube RS31-EZ 3" Pendant Mount Weather-Resistant Hanging Speaker - White (Discontinued)
Brand: SoundTube
SKU: SOUNDT-RS31-EZ-WH
Price: 88 USD
Availability: OutOfStock

Write a Review

Part #:

RS31-EZ-WH

Model #:

RS31-EZ

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The SoundTube RS31-EZ is a premium full-range 3" pendant mount weather-resistant speaker, with overall dimensions smaller than a 4" sphere. It incorporates a 10ft length of speaker signal/hanging cable for on-ceiling applications. Components have been weatherized for indoor/outdoor applications.

Description

SoundTube RS31-EZ 3-inch Pendant Mount Weather-Resistant Hanging Speaker

The SoundTube RS31-EZ is a premium full-range 3" pendant mount speaker, with overall dimensions smaller than a 4" sphere. The RS31-EZincorporates a 10ft length of speaker signal/hanging cable for on-ceiling applications. Components have been weatherized for indoor/outdoor applications.

The RS31-EZ is an 8 Ohm speaker without a transformer. The speaker utilizes the all-in-one ceiling mount system designed to retrofit in most j-boxes. The cover plate is included to hide mounting element and hold excess signal/hanging cable.

Engineered for rapid installation and low profile mounting for smaller venues, the RS31-EZ is ideal for finished ceiling applications in retail, restaurants, conference rooms, patio areas, educational facilities or any setting where full-range intelligibility, unobtrusive design, and installation ease are paramount.

Features

3" (76.1 mm) polypropylene driver with butyl rubber surround
Weatherized components for indoor/outdoor applications
Ultra-low profile ZeroReflection™ ABS enclosure (4.35" diameter by 4.35" height without stabilizing arm)
Corrosion-resistant, powder-coated aluminum grille
UL 1480 (UEAY) planned
High quality black or white paint finish

Specifications

Color	White
Certifications	CCC, CE, RoHS, UL1480A
Enclosure Properties	ABS Glass Fiber Reinforced, Injection Molded, Sealed
Enclosure Volume	60 cu in (983.22 cu cm)
Included Accessories	Cover Plate, Hanging Hardware, Wire Nuts
Optional Accessories	White Grille (GRL-RS31-WH) \| White Split Loom Tubing (AC-SLT-10-WH) \| Transformer (AC-RS31-XFMR)
Source Inputs	Terminal Strip
Coverage Angle (-6dB @ 2kHz)	45°
Directivity Factor (Q)	4.9 and 7.1 (Averaged 100Hz - 10kHz, @ 2kHz)
Directivity Index (DI) dB	5.1dB and 8.5dB (Averaged 100Hz - 10kHz, @ 2kHz)
Frequency Response (± 10 dB)	120 Hz - 22 kHz
Frequency Response (± 3 dB)	170 Hz - 14 kHz
Grille Properties	Aluminum, Powder-Coated
Low Frequency Voice Coil	0.75" (19 mm)
Magnetically Boosted	No
Max. Continuous Power RMS	20W
Max. Program Power	40W
Mounting Depth	3.81" (96.8 mm)
Nominal Impedance (Ω Ohms)	8 Ω
Fullrange Driver	3" Polypropylene driver with butyl rubber surround
Sensitivity dB @ 1W/1M	85 dB
Sensitivity dB @ 2.83V/1M	85 dB
Tap Selector	Terminal Block
Transformer Options	25 / 70.7 / 100 V
Shipping Weight	2.4 lbs (1.08 kg)
