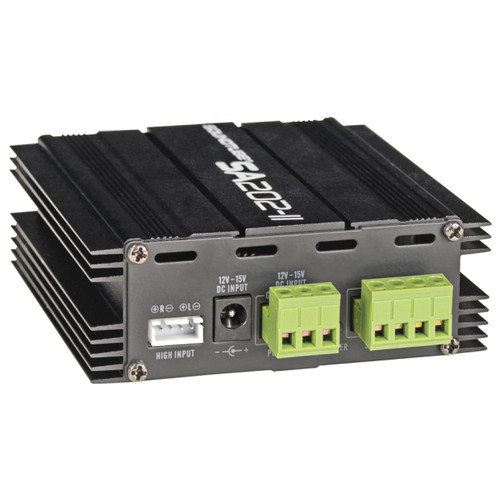

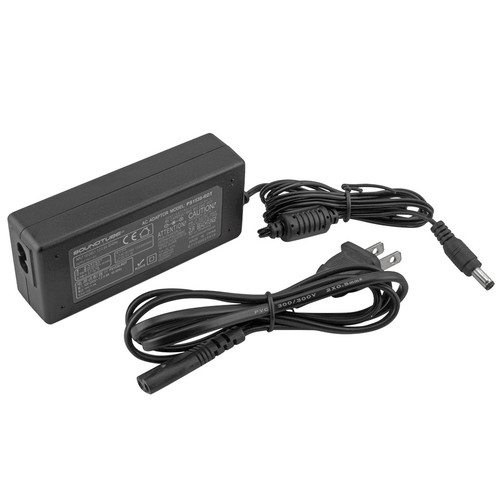

The SA202-II-RDT amplifier is an ultra-compact, 2-channel amplifier with extra heat sink surfaces for extended duty at full power. Rated at 20 watts per channel output at 4 Ohms with max gain of 35 dB. Dual RCA, stereo mini jack, and high-level inputs. Power inputs include either three-pin Euroblock or barrel connector. 12-volt trigger for automatic on/off functions when source power is detected. Signal to noise ration is 92dB (100Hz, 12dB/octave, 4 Ohm, A-Weighted). Inputs: Stereo mini unbalanced, high level, RCA stereo, 12V trigger. Mounting hardware included and adapts to pole, surface or security attachment installations. Includes a 15-volt, 3-amp power supply.
| Frequency Response (-3 dB) | 20 Hz - 20 kHz (+/- 0.1 dB) |
|---|---|
| Power Per Channel | 20 watts (4 ohm stereo),10 watts (8 ohm stereo) |
| Signal to Noise | 92 dB (100 Hz, 12 dB peroctave, 4 ohm, A-weighted) |
| Input Impedance | 6k ohms |
| Max Gain | 35 dB |
| Filters | 120 Hz, 12 dB per octave |
| Packaging | 1 per box – includes mounting hardware and power supply (SA202- RDT only) |
| Optional Accessory | Rack Mount Adapter (AC-SA202-RMA) | Power Supply (PS1530-RDT) | UK Power Cord (AC-PSCORD-UK) | EU Power Cord (AC-PSCORD-EU) | China Power Cord (AC-PSCORD-CHINA) |
| Dimensions (H x W x D) | 1.43" (36.2 mm) x 3.98" (101.1 mm) x 4.86" (123.6 mm) |
| Weight (Amp Only) | 0.55 lbs (0.25 kg) |
