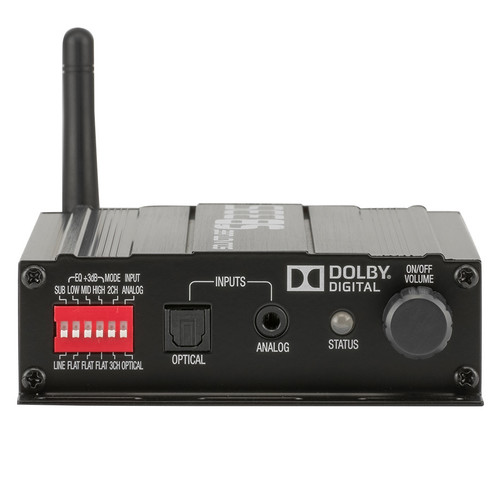

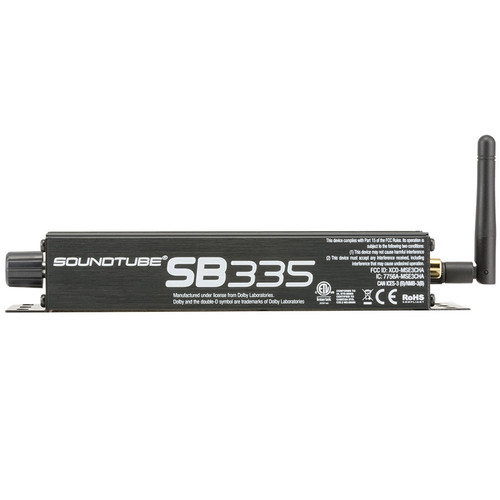

The SB335 is a versatile, small, class D amplifier engineered for use in localized audio applications. Designed for use with SoundTube speakers, other high-fidelity speakers and passive soundbars, the SB335 provides 50 watts per channel into 8 ohms (2 channel operation) or 35 watts per channel into 8 ohms (3 channel operation). Digital and analog inputs are provided, enabling direct connection from most TVs or monitors. Bluetooth® streaming functionality is also featured as a signal option. In addition to the speaker outputs, the SB335 includes a line level subwoofer output. Dolby Digital® decoding is also provided. The SB335 may be controlled via RS232 and will learn IR codes for volume control.
| Amplifier Output Power | 2 Channel – 50 watts @ 8 ohms, 55 watts @ 4 ohms, 3 Channel – 35 watts @ 8 ohms, 40 watts @ 4 ohms |
|---|---|
| Crossover Frequency | High Pass/Low Pass 120 Hz @ 12 dB/octave |
| Gain | 34 dB (8 ohms) |
| Frequency EQ | +3 dB Switchable at 120 Hz, 2kHz, 8 kHz |
| THD+ Noise | >.1% below rated output powers |
| S/N | Better than 84 dB unweighted |
| Inputs | 10K unbalanced line input stereo analog, optical digital 2 or 3 channel, RS232 control, Bluetooth, External IR |
| Protection Features | Amplifier-Soft Clipping, Short Circuit/Overload, Thermal overload protection. Power Supply- Thermal protection, Over current protection, Shout circuit protection |
| Front Panel Indicators | Power/Standby/Mode/Status |
| Dimensions (H x W x D) | 1.25" (32 mm) x 3.9" (100 mm) x 7.25" (184 mm) |
| Net Weight | 0.93 lbs (0.422 kg) |
