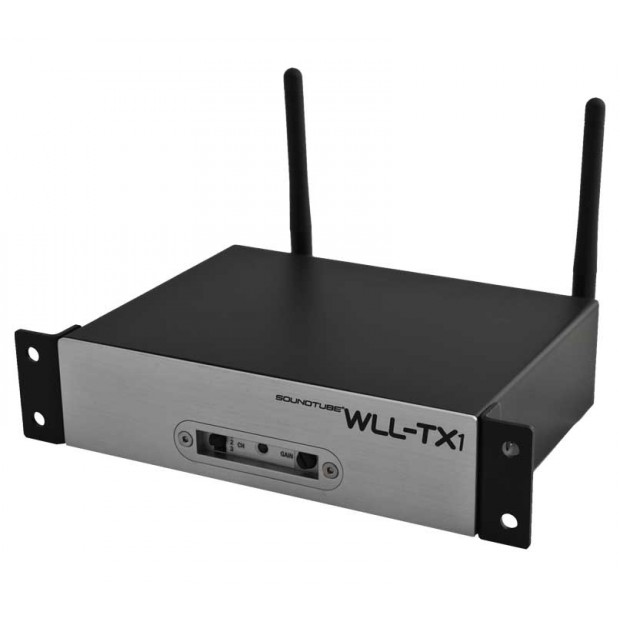

SoundTube WLL-TX1 Wireless Speaker Transmitter and Receiver System (Discontinued)

Part #:
WLL-TX1
Model #:
WLL-TX1
Availability: No Longer Available
Contact us for comparable solutions.

Shipping Notice:  We are moving! Shipping will be temporarily paused from October 15 to 19 and will resume on October 20.

Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The SoundTube WLL-TX1 Wireless Speaker Transmitter and Receiver System transmits uncompressed stereo audio wirelessly for maximum fidelity. An additional 9 receivers (for a total of 10) may be ordered to accompany the included single transmitter.

Description

The SoundTube WLL-TX1 Wireless Speaker Transmitter and Receiver System transmits uncompressed stereo audio wirelessly for maximum fidelity. An additional 9 receivers (for a total of 10) may be ordered to accompany the included single transmitter. Two additional transmitters can be used with separate frequencies with a total of up to 30 receiver units. Each transmitter/receiver contains 3 RF channels to minimize interference from other devices. Each channel contains 3 bands, alternating between them to preemptively counteract interference, keeping the signal clear and latency less than 20ms. Audio input options for the transmitter unit include USB, stereo mini or 1/4″ balanced input connections at the transmitter. Each channel contains 3 bands, alternating between them to preemptively counteract interference, keeping the signal clear and latency less than 20ms. A High/Low power selector switch on transmitter limits RF range where needed.

Features

  • 3 RF channels to minimize interference from other devices
  • Uncompressed stereo audio for maximum fidelity
  • Multiple receiver/amplifier units may be used with a single transmitter
  • USB, stereo mini or 1/4" balanced input connections at the transmitter
  • Phoenix or 1/4" connections speaker level outputs at the receiver
  • Local Audio source at the receiver via stereo mini (mutes the wireless signal when connected)
  • High/Low power selector switch on transmitter limits RF range where needed

Specifications

RF Band 2.4 GHz
Operating Range (Full Power) 150 ft indoors / 210 ft line of sight
Operating Range (Low Power) 50 ft indoors / 70 ft line of sight
Audio Frequency Response 20 Hz - 20 kHz
Modulation Digital
Dynamic Range 90 dB
Antenna Impedance 50 ohm
Power Supply/Requirements 5V, 1.2 A
Housing Material Powder coated metal
Dimensions (H x W x D) 1.75" (44.45 mm) x 6.19" (157.16 mm) x 6.5" (165.1 mm)
Weight 1.85 lbs (0.84 kg)
