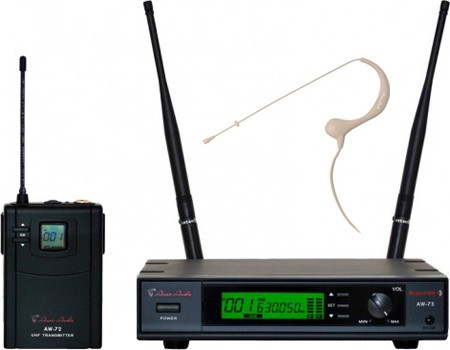

Special Projects AW-7572-17T Wireless Headworn Microphone System (Discontinued)

Part #:
AW-7572-17T
Model #:
AW-7572-17T
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The 700 FCC-safe channels, preset groups, auto or manual channel selection make the Scan700 perfect for any application.

Description

The Special Projects Audio AW-7572 is AutoScan wireless line marches forward with Scan700 Professional Wireless. The 700 FCC-safe UHF frequencies span six television channels (D1, 25-30 or  D2, 40-45) to provide the installer and user maximum flexibility of operation. AutoScan channel selection lets this system easily fit in to any install environment. Available in bodypack package.

Unlike other single ear head worn microphones which tend to have difficulty staying in place, the AM-17 incorporates a soft moldable plastic earpiece which is flexible and can be formed to fit every ear. The superior design of the AM-17 has the boom coming over the ear as compared to other mics in which the boom comes under the ear and lays against the cheek bone. This improved design provides a counterbalance which keeps the mic in place better than other single ear mics. Even wearing eyeglasses or during rigorous movement this mic stays firmly in place. For fit, comfort, price, and quality of sound the AM-17 is the best single ear microphone on the market today.

Features

  • 700 FCC-safe UHF frequencies.
  • AutoScan or Manual channel selection.
  • RF and Audio metering.
  • Front panel volume control.
  • XLR and ¼ inch outputs.
  • Mic/line output switch.
  • Rear panel squelch.

Specifications

Operating Frequency Range (D1) 540-570 MHz or (D2) 630 - 660 MHz
Oscillator PLL synthesized
Reception Switching diversity
Frequency Stability +/- 0.005%
Dynamic Range >96 dB
Signal to Noise >94 dB
THD
Outputs XLR balanced, 1/4 in. unbalanced
Batteries (2) 1.5V AA - recharging or alkaline
Transmitters 10mW
Dimensions (HxWxD) 1.73 x 8.3 x 7.08 in (half rack)
Microphone Generating Element Miniature Electret Condenser
Polar Pattern Omnidirectional
Sensitivity (1kHz) -43dB re 1V/Pascal (7mV/Pa)
Signal to Noise 62 dB @ 94 dB SPL
Included Accessories Windscreen, Mic cap, clothing clip
Dynamic Range 93 dB
Frequency Response 50 Hz - 20 kHz
Maximum Input SPL 125 dB
Bias Voltage 2.0 - 9.0 V
Cable Length 1.4m
