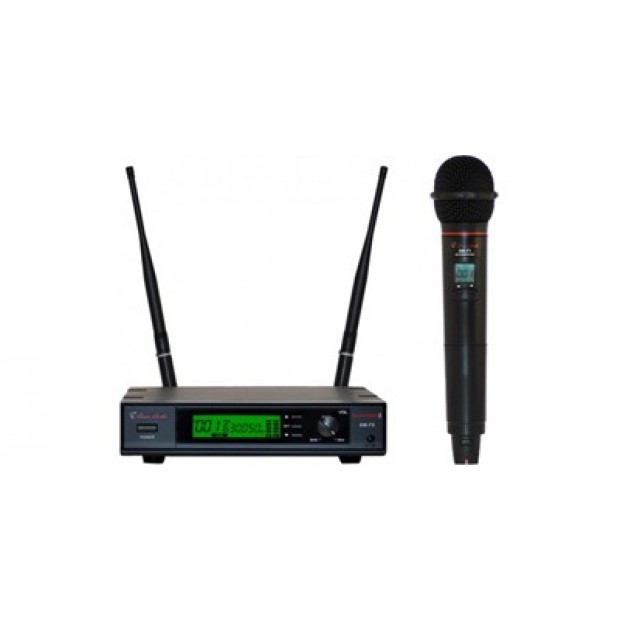

Special Projects Audio AW-7571 Wireless Handheld System (Discontinued)

By Special Projects Audio

Special Projects Audio AW-7571 Wireless Handheld System (Discontinued)

Write a Review

Part #:

AW-7571

Model #:

AW-7571

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Special Projects Audio AW-7571 marches forward with Scan700 Professional Wireless. This includes the 700 FCC-safe UHF frequencies span with six television channels.

Description

The Special Projects Audio AW-7571 is AutoScan wireless line marches forward with Scan700 Professional Wireless. This includes the 700 FCC-safe UHF frequencies span with six television channels.

Built-in recharging system eliminates battery cost – simply connect the transmitter to the receiver with the supplied cable. The 700 FCC-safe UHF frequencies span six television channels (D1, 25-30 or D2, 40-45) to provide the installer and user maximum flexibility of operation. AutoScan channel selection lets this system easily fit in to any install environment. Available in bodypack and handheld packages.

Features

700 FCC-safe UHF frequencies.
AutoScan or Manual channel selection.
Built-in recharging system.
RF and Audio metering.
Front panel volume control.
XLR and ¼ inch outputs.
Mic/line output switch.
Rear panel squelch.

Specifications

Model	AW-7571
Product Type	Wireless Handheld System
Operating Frequency Range	(D1) 540-570 MHz or (D2) 630 - 660 MHz
Oscillator	PLL synthesized
Reception	Switching diversity
Frequency Stability	+/- 0.005%
Dynamic Range	>96 dB
Signal to Noise	>94 dB
THD
Outputs	XLR balanced, 1/4 in. unbalanced
Transmitters	10mW
Batteries	(2) 1.5V AA - recharging or alkaline
Element	Condenser
Dimensions (HxWxD)	1.73 x 8.3 x 7.08 in (half rack)
