Stadium PA System with 2 Yorkville Outdoor PA Speakers, Paging Horns and Multi-Zone Rack Mount Mixer with Bluetooth

Inside the Design

This stadium PA system is designed to provide high-quality sound for football fields, baseball, softball, soccer stadiums, race tracks, parking areas, and small multi-field athletic complexes. Featuring two Yorkville C08CW 8" 2-way weather-resistant loudspeakers, two AtlasIED BIA-100 bi-axial paging horns, a Tascam MZ-123BT multi-zone rackmount Bluetooth mixer, an ART HVA4 power amplifier, and a Pure Resonance Audio UC1S vocal microphone, this system delivers clear, intelligible audio for music playback, announcements, and paging. The included adjustable desktop mic stand ensures announcers can provide professional, consistent audio for fans and spectators.

Sound System Features:

• Easy-to-install, high-performance stadium PA system
• Weather-resistant speakers with high output for music, announcements, and paging
• Bi-axial paging horns for long-throw voice coverage across athletic venues
• Multi-zone Bluetooth-enabled rackmount mixer provides flexible routing, mixing, and distribution
• High-quality vocal microphone with quiet on/off switch and adjustable desktop stand
• Reliable performance for small to medium stadium and field applications

About the System Components

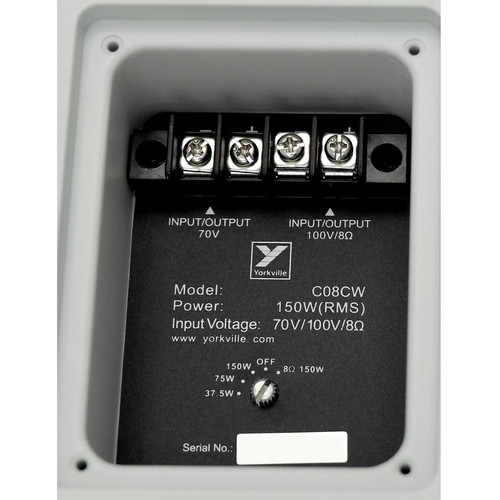

Yorkville C08CW 8" 2-Way Weather Resistant Loudspeakers

The Yorkville C08CW is an 8" coaxial 2-way loudspeaker with high SPL and full-range sound. Its engineering plastic injection-molded body is highly weather-resistant, meeting IP56 standards, making it ideal for outdoor stadium applications where high intelligibility and durability are essential.

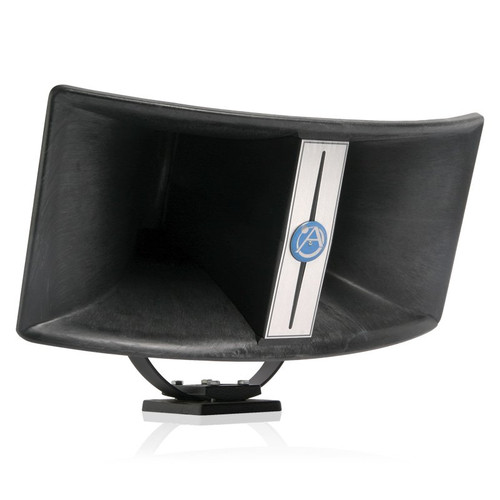

AtlasIED BIA-100 Bi-Axial Paging Horns

The AtlasIED BIA-100 is a high-efficiency bi-axial horn featuring twin air columns and an exponential bell for wide-angle sound coverage. It provides excellent clarity for voice announcements, signaling, and full-range music, delivering 130° x 60° coverage with minimal distortion, ideal for indoor and outdoor stadium applications.

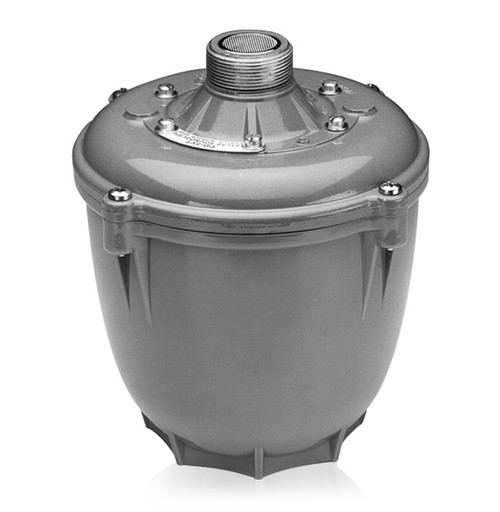

AtlasIED PD60AT Compression Drivers

The AtlasIED PD60AT compression drivers pair with the BIA-100 horns to deliver crisp, intelligible audio. These drivers are designed for high-efficiency voice and music reproduction in stadium and large-area applications, ensuring clear projection over long distances.

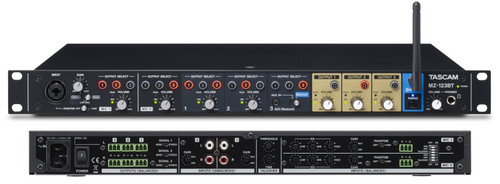

Tascam MZ-123BT Multi-Zone Bluetooth Mixer

The Tascam MZ-123BT is a compact, 3-channel rackmount mixer with Bluetooth capability. It allows multi-zone audio routing, mixing, and distribution of music and announcements, providing versatile control for stadium sound management. Ideal for professional installations requiring independent audio zones and wireless streaming.

ART HVA4 70V/100V 4-Channel Switching Power Amplifier

The ART HVA4 is a 4-channel Class-D amplifier suitable for 70V/100V distributed audio installations. Each channel includes independent gain controls and LED indicators for signal, clip, and protection. Its Euroblock input/output connectors and 1U rackmount design make it ideal for stadium PA systems needing reliable high-power amplification.

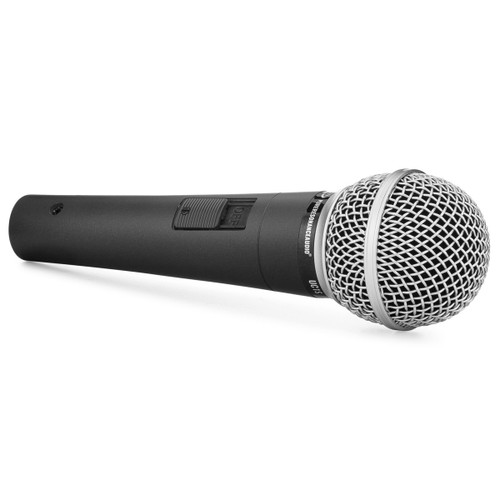

Pure Resonance Audio UC1S Vocal Microphone with On/Off Switch

The UC1S is a dynamic vocal microphone with a quiet on/off switch and rugged construction. Its cardioid pickup pattern isolates the announcer's voice and minimizes background noise, delivering clear, intelligible speech for play-by-play, paging, or music applications. Compatible with the included Atlas Sound DS7E adjustable desktop stand for secure placement and hands-free use.

System & Component Videos

Yorkville C08CW 8" 2-Way Weather Resistant Loudspeakers

• Highly weather-resistant IP56 rating for outdoor stadium use
• Engineering plastic injection molded enclosure for durability
• High SPL output with clear, full-range sound
• Horn-loaded coaxial design for efficient audio dispersion

AtlasIED BIA-100 Bi-Axial Paging Horns

• Accepts AtlasIED and 1 3/8"-18 thread compression drivers with 0.7" throat opening
• High-efficiency bi-axial design providing 130° x 60° wide-angle sound coverage
• Nominal frequency response 350-8,000 Hz for high intelligibility voice and full-range music
• Patented 180° gimbal-mount allows flexible installation and aiming

AtlasIED PD60AT Compression Drivers

• Provides accurate sound reproduction with optimum intelligibility
• Designed for high-power 70V public address systems
• Pairs perfectly with BIA-100 horns for consistent coverage

Tascam MZ-123BT Commercial-Grade 3-Channel Rackmount Multi-Zone Mixer with Bluetooth

• 3 input channels with assignable outputs for up to 3 zones
• 2 MIC inputs with individual +48V phantom power for announcements or talk-over
• Mono/stereo select switch per output channel
• Front XLR/TRS combo jack or rear Euroblock connectors for mic 1
• 3-band EQ, high-pass filter, and Talk Over feature for automatic background music attenuation
• Bluetooth® and 3.5 mm AUX input for wireless audio playback
• Compact 1U rackmount design with headphone monitoring

ART HVA4 70V/100V 4-Channel Switching Power Professional Amplifier

• Class-D switching amplifier delivering high power with low noise and distortion
• 70/100V line operation with 4x300W output
• Independent front-mounted gain controls with LED indicators (signal, clip, protection)
• Short-circuit, thermal, and power-on/off protection built-in
• Euroblock input/output connections for secure installation
• Priority and remote test trigger functions
• 1U rackmount for professional installations

Pure Resonance Audio UC1S Vocal Microphone with On/Off Switch

• Super heavy-duty dynamic microphone for rugged use
• Quiet, ultra-reliable on/off switch for convenient control
• Built-in wind and breath pop filter for clear speech reproduction
• Steel mesh grille and SwitchCraft connector for durability and secure connection
• Cardioid pickup pattern isolates the main sound source and reduces background noise
• Frequency response: 50 Hz to 16,000 Hz, suitable for indoor and outdoor events
• Includes break-resistant stand adapter for secure desktop or press box mounting

• (2) Yorkville C08CW 8" 2-Way Weather Resistant Loudspeakers
• (2) AtlasIED BIA-100 Bi-Axial Paging Horns
• (2) AtlasIED PD60AT Compression Drivers
• (1) Tascam MZ-123BT Commercial-Grade 3-Channel Rackmount Multizone Mixer with Bluetooth
• (1) ART HVA4 70V/100V 4-Channel Switching Power Professional Amplifier
• (1) Pure Resonance Audio UC1S Vocal Microphone with On/Off Switch

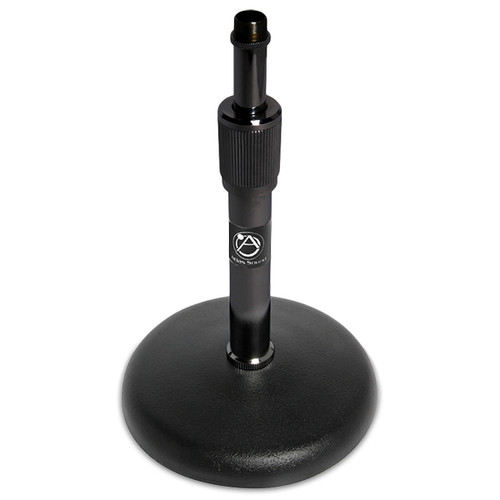

• (1) AtlasIED DS7E Adjustable Desktop Microphone Stand

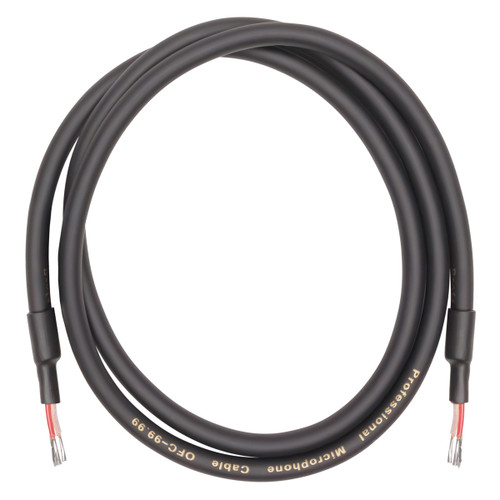

• (3) Pure Resonance Audio PREP-3-PREP Prep to Prep Patch Cables - 3ft
• (1) Pure Resonance Audio XLR-25 Microphone Cable - 25ft

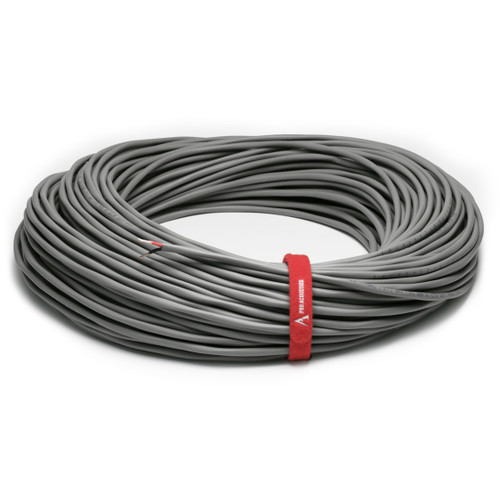

• (250') West Penn 225 16/2 Non-Plenum Audio Speaker Wire - Gray
