Stadium Sound System with 3 Atlas Sound Paging Horn Loudspeakers

Stadium Sound System with 3 AtlasIED Paging Horn Loudspeakers and Mixer Amplifier

By AtlasIED

Stadium Sound System with 3 AtlasIED Paging Horn Loudspeakers and Mixer Amplifier

Name: Stadium Sound System with 3 AtlasIED Paging Horn Loudspeakers and Mixer Amplifier
Brand: AtlasIED
SKU: STSS-3APX40TNAA120G
Price: 1758.14 USD
Availability: InStock

Write a Review

Part #:

STSS-3APX40TNAA120G

Model #:

STSS-3APX40TNAA120G

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

This stadium sound system is ideal for applications where vocal clarity and coverage are essential such as football fields, athletic stadiums, baseball and soccer stadiums, arenas, and race tracks.

System Highlights:
- Budget: Under $1,500
- Crowd Size: Small | Medium | Large
- Basic Announcements
- Includes: Wired Handheld Mic

Description

Indoor/Outdoor Stadium Sound System with Atlas Sound Paging Horn PA Loudspeakers

This stadium sound system with Atlas Sound paging horn loudspeakers is ideal for reaching crowds gathered within an arena setting where vocal clarity and coverage are essential. This speaker system is perfect for play-by-play announcements and paging in indoor or outdoor sporting applications such as baseball and soccer stadiums, football fields, athletic stadiums, race tracks, parking areas, and more.

Key System Features:

Great for indoor or outdoor sporting applications
Excellent for play-by-play announcements
High-powered paging horns for clear communication
120W 6-channel mixer amplifier
Ultra Clear handheld mic with a quiet On/Off switch and desktop stand

About the System Components

This stadium speaker system includes three Atlas Sound APX40TN paging horn loudspeakers, an Atlas Sound AA120G 120-watt mixer amplifier, a Pure Resonance Audio UC1S ultra-clear dynamic vocal microphone with an on/off switch, and an Atlas Sound DS7E desktop microphone stand. For simple installation, this system comes complete with a microphone cable, a bare wire cable, and 100ft of speaker wire.

Not sure if this is the right Athletic Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Features

Atlas Sound APX40TN Paging Loudspeakers:

40 Watt Model Provides Better Output Over Competitive 15 and 30-Watt Standards
Built-in Screen Protects Against Bug Nesting
Coverage of 60° x 40° Across a Wide Frequency Range for Predictable Beamwidth Control
Loudspeaker is Molded of High-Impact, Neutral-Grey Polycarbonate Resin with UV Light Inhibitor
Rotating Bell Pivots in 15° Increments for Exact On-Site Positioning of Projection Angles Detailed in Acoustic Simulation Programs
Universal 25/70/100V Transformer Includes a Rotary-Dial Selector for Easy Tap Identification
Zinc die cast mounting bracket may be mounted to standard E.O. boxes banded to poles or removed for easy retrofit of existing AP Series loudspeakers

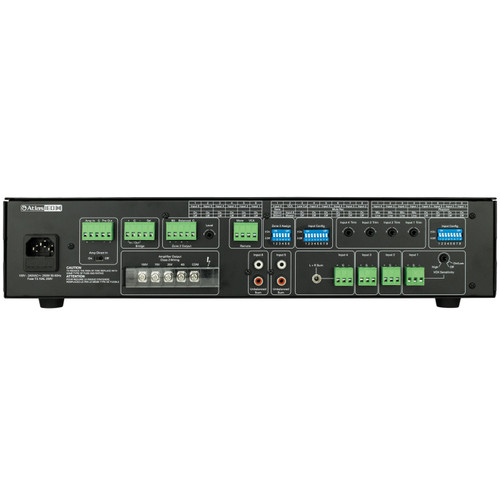

Atlas Sound AA120G 120W Mixer Amplifier:

Zone 1 Output 120W, 4Ω, 25V, 70V, 100V
Zone 2 Output 1W @ 8Ω or 1.5V@ 600Ω
Inputs 1-4 mic / balanced line switchable
Input 5 and 6 RCA summed, Input 4 3.5 mm summed and parallel with Input 4
Input signal indicator, Master peak and signal indicator
Bass and treble control
Input 1 has VOX send
Inputs 2-6 have switch selectable mute receive via VOX or contact closure
Remote level control selectable Input 6 or Master
Pre-output balanced
Amp In insert for external processing
Switch selectable Bridge In/Out bus allows amplifier combining
Hi cut filter for paging horns
Zone 2 Output, 1W and Line
Global Switch Mode AC Power Supply for use in any 120V to 240V country

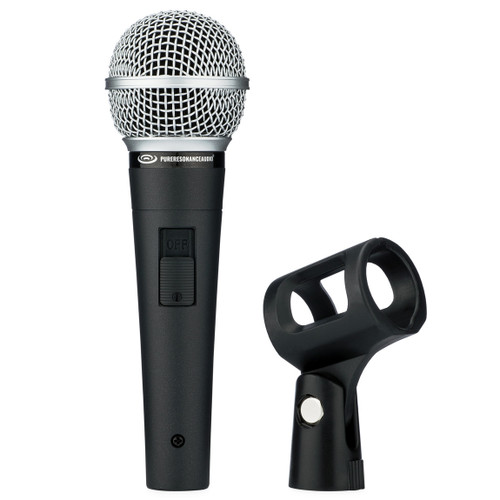

Pure Resonance Audio UC1S Handheld Microphone:

Frequency response tailored for vocals
Uniform cardioid (unidirectional) dynamic pickup pattern isolates the main sound source and minimizes background noise
Dependable quality, ruggedness and reliability
Supplied with break-resistant stand adapter
Frequency response: 50 to 16,000 Hz

System Includes

(3) Atlas Sound APX40TN Paging Horns
(1) Atlas Sound AA120G 120W 6-Input Mixer Amplifier
(1) Pure Resonance Audio UC1S Dynamic Handheld Microphone
(1) Atlas Sound DS7E Desktop Microphone Stand
(1) CBI MLN-15-F-Prep XLR to Prep Microphone Cable - 15ft
(100') West Penn Wire 225 16/2 Non-Plenum Speaker Wire
