Stadium Sound System with 3 Electro-Voice Paging Horns, 2 Loudspeakers and Bosch Plena Mixer Amplifier

Part #:
STSS-3PA430TPLE2MA240
Model #:
STSS-3PA430TPLE2MA240
Availability: Usually arrives in 10-15 business days Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

This Electro-Voice Stadium Sound System is a complete system featuring high quality loudspeakers, mixer amplifier, a microphone, and a desktop stand. It is perfect for any small stadium application.

Description

This Electro-Voice Stadium Sound System is a complete system featuring high quality loudspeakers, mixer amplifier, a microphone, and a desktop stand. It is perfect for any small stadium application.

The weather-resistant PA430 series features a 60 degree x 40 degree dispersion pattern, and an integral swivel bracket. The PA430 is available in either a eight-ohm version (PA430) or a 30-watt, 70/100-volt version (PA430T).

The Electro-Voice ZX1i is the standard of no compromise audio performance and versatility in an easy to install compact package. The high-tech enclosure uses injection-molded high-impact ABS resin to make the ZX1i extremely durable. The enclosure geometry has been engineered to provide maximum rigidity and acoustic performance. The velocity compensated port design overcomes the limitation of many small cabinet loudspeakers and enables exceptional low-frequency response. Two (2) rotatable horn coverage patterns are available; 90° x 50° for longer throw and cluster applications, 100° x 100° for broad even dispersion. A multilayer grille with hydrophobic cloth and weatherized components allows both indoor and outdoor use. An optional weatherized input panel cover with a gland nut is available for additional protection.

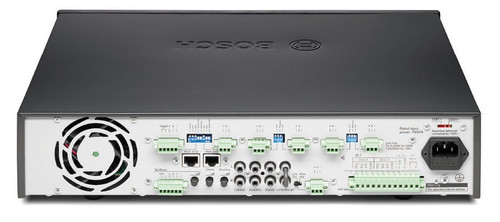

These Plena mixer amplifiers are high performance, professional public address units with modern state‑of‑the‑art features. They are easy to use, taking the complexity away from the user and putting it where it belongs, inside the equipment. Providing a crisp call or clear music is as easy as turning on the radio. The amplifier is also surprisingly affordable, without sacrificing features such as ducking, priority and flexibility.

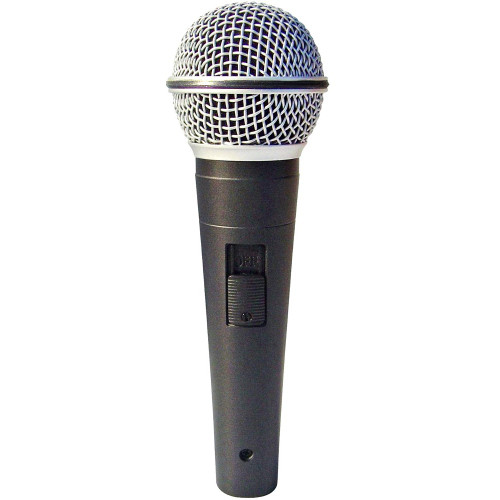

The Pure Resonance Audio Ultra-Clear™ UC1S Microphone perfect for use in schools, houses of worship, corporate AV, theater, fixed installations and more. Great for any application or environment where you need a great sounding, cost-effective microphone.  It maintains a true cardioid pattern throughout it's frequency range making it an ideal choice for  professional sound reinforcement, studio recording, broadcasting, backup vocals and spoken word applications. The frequency response is tailored for vocals with a presence rise in the mid-range.

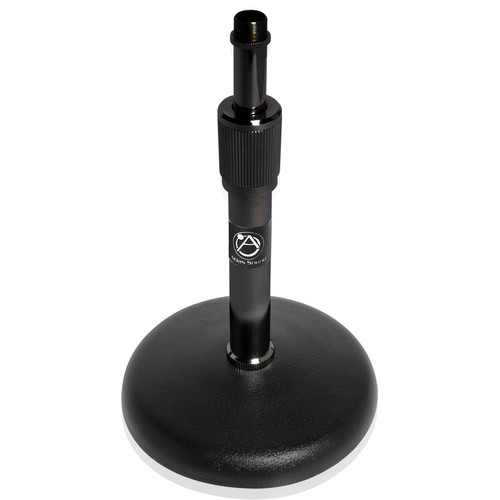

The Atlas Sound DS7E Adjustable Height Desktop Mic Stand may be adjusted from 8" to 13" and include a grip-action clutch and ebony-finished cast iron base. DS-7E is supplied with non-reflective ebony tubing.

Features

Electro-Voice PA430T Paging Horn

  • High impact acrylic-styrene-acrylonitrile (ASA) with ultraviolet light
  • Inhibiting mesa tan finish
  • Positive-lock super tough nylon swivel
  • Base and rear housing with mounting plate

Electro-Voice ZX1i-100T Loudspeaker

  • Integrated QuickSAM Heavy-Duty Strong-Arm Mounting Bracket Included
  • Patented ASC (Automatic Saturation Compensation) on Transformer Versions
  • EV8L 8 inch Weatherized Cone High-Output LF Transducer
  • DH2005 1 inch Exit True Compression Driver

Bosch PLE-2MA240 Plena Mixer Amplifier

  • 6 microphone/line inputs plus 3 music source inputs
  • 70 V, telephone and a call station input with priority & VOX
  • 2 zones and announcement only output
  • Voice‑activated emergency override
  • High output power 120 and 240 Watts
  • 2-tone chime built in (7 more chimes optional with call station)
  • Outputs for line out, music only out and insert point
  • 24 V backup power with built‑in 24 V charger
  • Separate tone controls for microphones and music sources

Pure Resonance Audio UC1S Dynamic Handheld Microphone

  • Frequency response tailored for vocals
  • Uniform cardioid (unidirectional) dynamic pickup pattern isolates the main sound source and minimizes background noise
  • Dependable quality, ruggedness and reliability
  • Supplied with break-resistant stand adapter
  • Frequency response: 50 to 16,000 Hz

Specifications

Model EV Stadium 1
Product Type PA Sound System
PA430T Specifications
Frequency Response 400-6,500 Hz ±5 dB
Power Handling, 8 Hours, 6 dB Crest Factor 30 watts (500-5,000 Hz pink noise)
Impedance 8 ohms
Beamwidth -6 dB @ 1.0 kHz to 10 kHz
Horizontal Beamwidth 60° (+20°, -20°)
Vertical Beamwidth 40° (+20°, -10°)
Directivity Factor Rθ (Q) 15.2 @ 2 kHz
Usable Low-Frequency Limit 350 Hz
Voice-Coil Diameter 3.81 cm (1.5 in.)
Magnet Material Strontium ferrite
Magnet Weight 0.63 lbs (0.28 kg)
Flux Density 1.30 Tesla
Dimensions 22.6 cm (8.9 in.) x 30.7 cm (12.1 in.) x 35.8 cm (14.1 in.)
Net Weight 3.8 lbs (1.7 kg)
Shipping Weight 4.6 lbs (2.1 kg)
ZX1i-100t Specifications
Frequency Range¹(-10 dB) 48 Hz - 20 kHz
Frequency Response¹(-3 dB) 60 Hz - 20 kHz
Axial Sensitivity¹ 92 dB (1W/1m)
Max Calculated SPL 121 dB
Rec. Hipass Frequency 40 Hz
Horizontal x Vertical Coverage 100° x 100°
Rated System Power 200W Cont.², 400W Prog., 800W Peak
LF Transducer EV8L, 8 in (203mm) Driver
HF Transducer DH2005, 1 in. (25.4mm) Exit Compression Driver
Crossover Frequency 1.7 kHz
Nominal Impedance 8 Ohms
Minimum Impedance 6 Ohms
Connectors 4-Pin Phoenix Connector
Enclosure Material High Impact Polymer
Suspension Integrated QuickSAMTM Heavy-Duty Strong-Arm Mounting Bracket
Grille Polyester Powder Coated, 18GA Galvanized Steel
Dimensions (W x H x D) 282mm x 451mm x 263mm (11.12" x 17.75" x 10.35")
Net Weight 23.0 lbs (10.4 kg)
Shipping Weight 27.0 lbs (12.3 kg)
PLE-2MA120 Specifications
Mains power supply Specifications
Voltage 115 - 230 VAC ±10%, 50/60 Hz
Inrush Current 8/16 A (230/115 VAC)
Battery power supply Specifications
Voltage 24 VDC ±15%
Current 6 A
Charge current 0.5 ADC
Charge float voltage 27.3 VDC
Power consumption 400 VA
Performance Specifications
Frequency response 50 Hz to 20 kHz (+1/‑3 dB @ ‑10 dB ref. rated output)
Distortion
Low Control Max -12/+12 dB (frequency is setting dependent)
High Control Max -12/+12 dB (frequency is setting dependent)
RJ-45 input 2 x
Call station input For PLE-2CS(MM)
Wall panel input For PLE-WP3S2Z
Mic/Line input 6 xq
Input 1 5-pin Euro style, balanced, phantom
Input 2-6 3-pin Euro style, balanced, phantom
Sensitivity 1 mV (mic); 200 mV (line)
Impedance >1 kohm (mic); >5 kohm (line)
S/N (flat at max volume) 63 dB
S/N (flat at min volume/muted) > 5 dB
Dynamic range 93 dB
S/N (flat at max volume) >63 dB (mic); >70 dB (line)
S/N (flat at min volume/muted) >75 dB
CMRR (mic) >40 dB (50 Hz to 20 kHz)
Headroom >17 dB
Speech filter -3 dB @ 315 Hz, high-pass, 6 dB/ oct
Phantom power supply 16 V via 1.2 kohm (mic)
Speech filter -3 dB @ 315 Hz, high-pass, 6 dB/oct
VOX (input 2) Attack time 150 ms; release time 2 s
Music inputs 3x
Connector RCA, stereo converted to mono
Sensitivity 200 mV
Impedance 22 kohm
S/N (flat at max volume) >70 dB
S/N (flat at min volume/muted) >75 dB
Headroom >25 dB
Emergency / telephone 1 x
Connector 7-pin, Euro style pluggable screw terminal
Sensitivity tel 1 V maximum
Sensitivity 70V 70 V maximum
Impedance >10 kohm
S/N (flat at max volume) >65 dB
VOX Threshold 50 mV; attack time 150 ms; release time 2 s
Insert 1 x
Connector RCA
Nominal level 1 V
Impedance >10 kohm
Master/music output 1 x
Connector 3-pin Euro style, balanced
Nominal level 1 V
Impedance
Loudspeaker outputs 25 / 70 V and 4 ohm Specifications
Connector Screw, floating
Max / rated 180 W / 120 W
Loudspeaker output 4 ohm Specifications
Connector Euro style pluggable screw terminal, floating
PLE-2MA120 31 V (120 W)
Environmental Specifications
Operating temperature +14 ºF to +131 ºF
Storage temperature -40 ºF to +158 ºF
Relative humidity
Acoustic noise level of fan
Mechanical Specifications
Color Charcoal
Mounting Stand-alone, 19" rack
Weight 23.2 lbs (Approx.)
Dimensions (W x H x D) 430 x 100 x 270 mm (19" wide, 2U high)
PL-24S Specifications
Element Type Dynamic, Neodymium Magnet Structure
Frequency Response 80 Hz - 16,000 Hz
Polar Pattern Supercardioid
Sensitivity, Open Circuit Voltage, 1 kHz 2.2 mV/Pa (-53 dBV)
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
Rated Impedance 600 ohms
Microphone Connector 3-pin, XLR-type
Finish Textured black satin handle with MemraflexTM grille
Accessories Included Stand adapter with Euro-thread insert, Soft zippered gig bag
Dimensions Length = 7.23" (184.0 mm) Width = 2.10" (53.0 mm) Shank = 0.93" (23.6 mm)
Net Weight 0.648 lbs (294 g)
Shipping Weight 1.205 lbs (547 g)

System Includes

  • (3) Electro-Voice PA430T Paging Horn
  • (2) Electro-Voice ZX1i-100T Loudspeaker
  • (1) Bosch PLE-2MA240 Plena Mixer Amplifier
  • (1) Pure Resonance UC1S Dynamic Vocal Microphone
  • (1) Atlas Sound DS7E Desktop Microphone Stand
