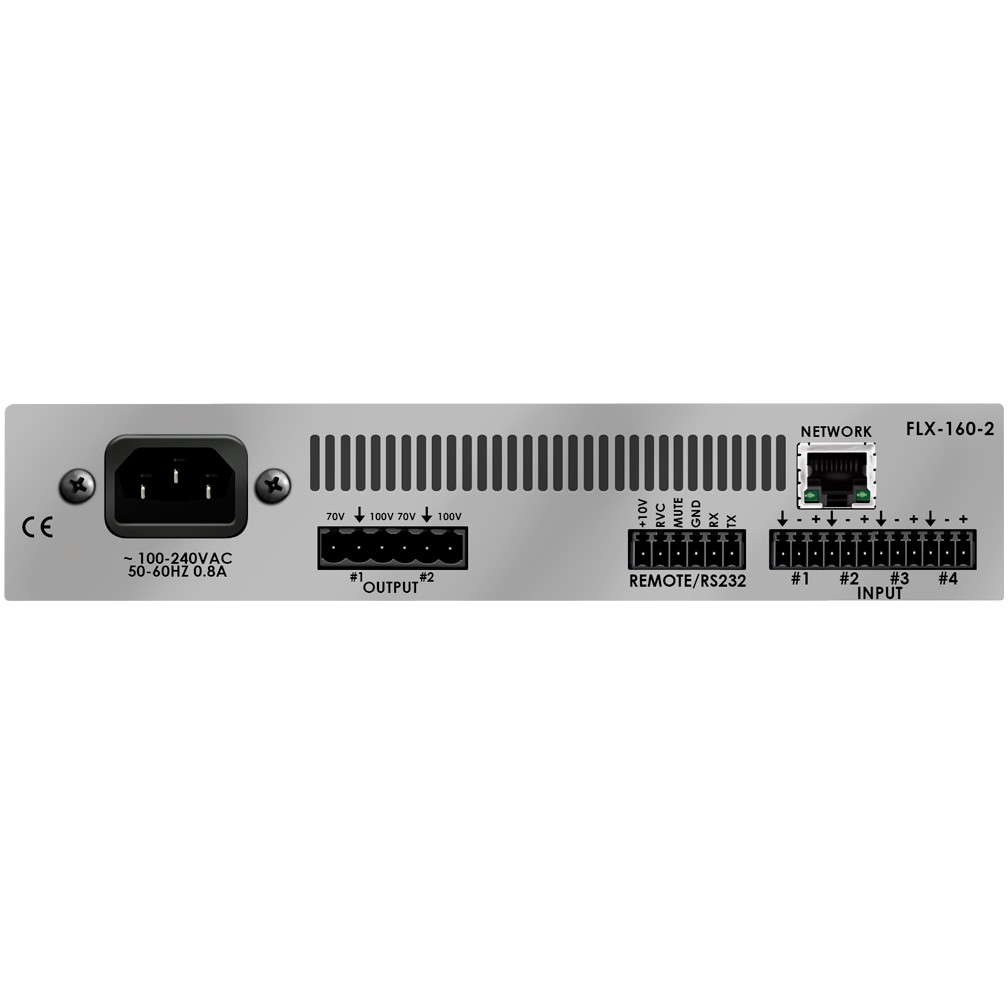

Stewart Audio FLX160-2-CV 2 Channel DSP Enabled Amplifier (Discontinued)

Name: Stewart Audio FLX160-2-CV 2 Channel DSP Enabled Amplifier (Discontinued)
Brand: Stewart Audio
SKU: STEWART-FLX160-2-CV
Price: 1229 USD
Availability: OutOfStock

Write a Review

Part #:

FLX160-2-CV

Model #:

FLX160-2-CV

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Stewart Audio FLX160-2-CV provides 160 watts from each of the two 70/100V output channels. At the heart of the amplifier is a robust, internal, full-function DSP designed to solve a multitude of your audio problems in just one enclosure.

Description

The FLX (pronounced FLEX) Series of amplifiers is the most versatile 1/2 rack amplifier Stewart has ever produced. The FLX160-2-CV provides 160 watts from each of the two 70/100V output channels. At the heart of the amplifier is a robust, internal, full-function DSP designed to solve a multitude of your audio problems in just one enclosure. The DSP includes a full cross-point mixer, EQ, filters, limiters and much more. A USB port makes programming simple, fast and repeatable for large installations. The RVC and RS232 control allow volume control from a wide range of devices. You won't find a more flexible combination of power output and processing in a comparable package on the market today.

Features

Onboard DSP for signal routing and filtering
USB and RS232 available for configuration
1/2 rack package
4 analog inputs (4 line/mic; 2 with phantom power)
Not Networked enabled

Specifications

Output Power	160W x 2 @ 70.7V/100V
Frequency Response (+0, -3dB)	20 Hz—20 kHz (4 Ohms), 100 Hz—20 kHz (70.7/100V)
THD+N
Signal-to-Noise Ratio	>95dB
Input Sensitivity	1V (0 dBV)
Input Impedance (Balanced/Unbalanced/Phantom)	7.2k Ohms/3.6k Ohms/2.4k Ohms
Current Draw - Standby, 1/8 Power	12W, 65W
Amplifier Class	D
Remote Volume	0-10V
Channel to Channel Isolation	>60dB FLX80-4 CV & LZ, >85dB FLX160-2 CV & LZ
Input Connectors	3.5 mm Euroblock
Output Connectors	5 mm Euroblock
LED Indicators	Power
Controls	USB & RS-232
Optional Network Input	Dante™
Power Supply Input	100-240 VAC 50/60Hz (PFC Universal Input)
Construction	Aluminum Chassis
Mounting	Rack-mountable, single & dual
Cooling	Convection–Cooling (No Fans)
Dimensions (H x W x D)	1.7" (44 mm) x 8.3” (212 mm) x 11.25” (272 mm)
Weight (Max - Varies By Model)	6.2 lbs (2.8 kg)
