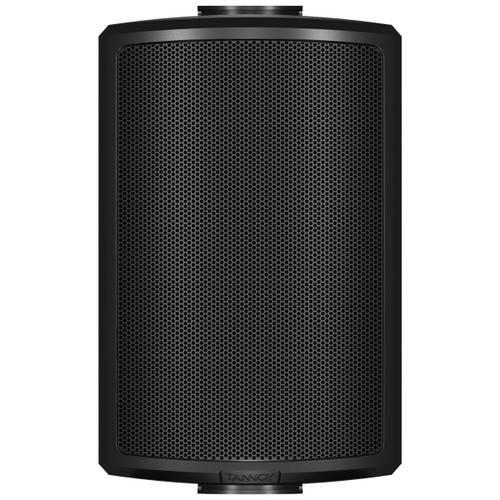

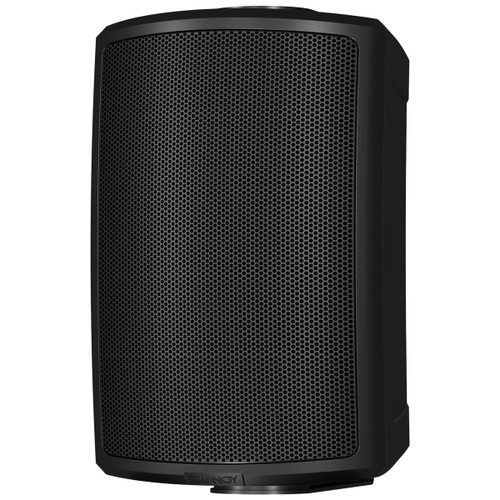

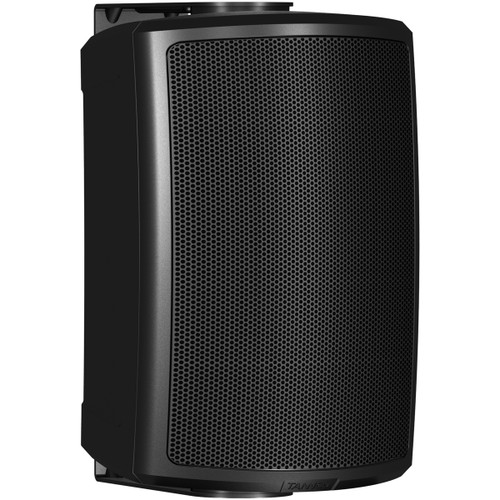

The AMS 5DC is a full bandwidth 240-Watt high sensitivity loudspeaker that utilizes our all-new proprietary 5" Dual Concentric point-source driver with Omnimagnet technology on a Torus Ogive Waveguide to deliver wide and consistent broadband directivity with enhanced intelligibility - plus the linear response of our legendary studio monitors. The AMS 5DC is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship. AMS 5DC loudspeakers provide a seamless sound signature within a multi-zoned environment that benefits from both ceiling and wall mounted TANNOY loudspeakers.
Attractive and easy to install

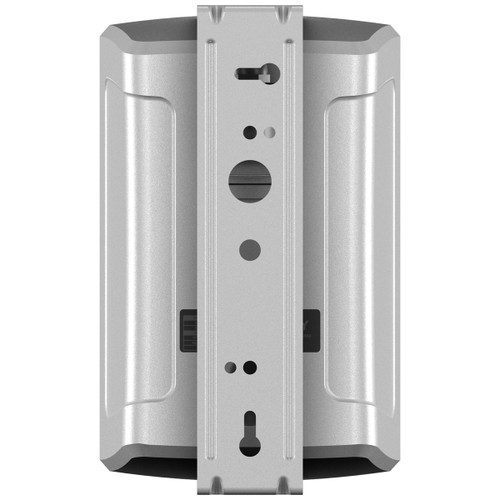

The highly durable and heat resistant ABS enclosure features a black painted finish and comes with an aesthetically pleasing grille. Installation is quick and easy thanks to the included color-matched yoke mounting bracket – and an optional VARIBALL multi-angle bracket is available separately. An included weatherproof cable gland protects the Phoenix input and link output connectors, as well as the integral low-insertion loss 30 W transformer with convenient tap switching.
| Frequency Response (-3 dB) | 90 Hz - 30 kHz |
|---|---|
| Frequency Range (-10 dB) | 80 Hz - 40 kHz |
| System Sensitivity (1 W @ 1 m) | 87 dB (1 W = 4 V for 16 ohms) |
| Nominal Coverage Angle | 90 degrees conical |
| Power Handling | Average: 60W Program: 120W Peak: 240W |
| Recommended Amplifier Power | 120W @ 16 ohms |
| Nominal Impedance | 16 ohms |
| Rated Maximum SPL | Average: 105 dB Peak: 111 dB |
| Transformer Taps | 70V: 30W / 15W / 7.5W / 3.75W / OFF & low impedance operation 100V: 30W / 15W / 7.5W / OFF & low impedance operation |
| Transformer Setting | Rotary switch |
| Dual Concentric Point Source Driver | 1 x 5" (130 mm) Dual Concentric driver, using Omnimagnet technology |
| Low Frequency | 1.38" (35 mm) voice coil, treated multi fiber paper pulp cone |
| High Frequency | 0.79" (20 mm) PEI dome |
| Enclosure | ABS |
| Grille | Weather-resistant zinc nickel-plated steel grille |
| Connectors | Removable locking connector with screw terminals |
| Included Accessories | Yoke bracket |
| Packed Quantity | 2 |

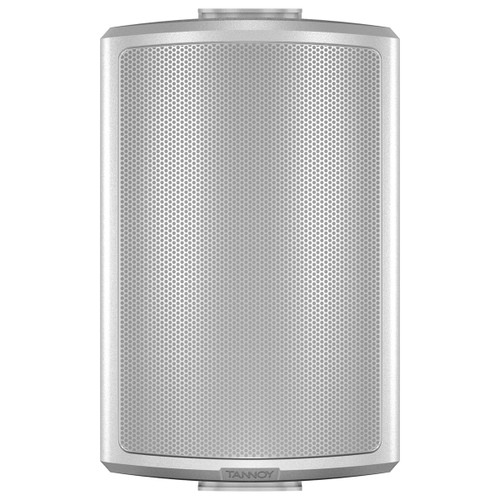

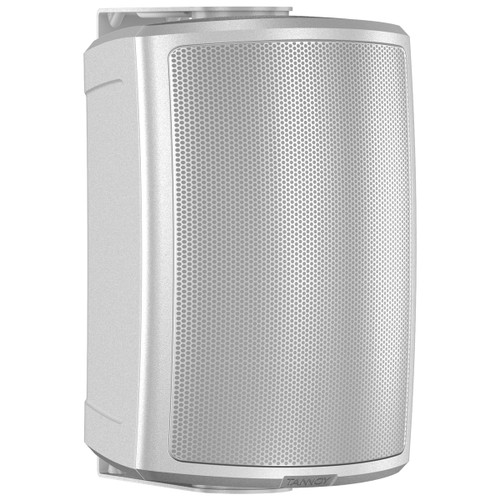

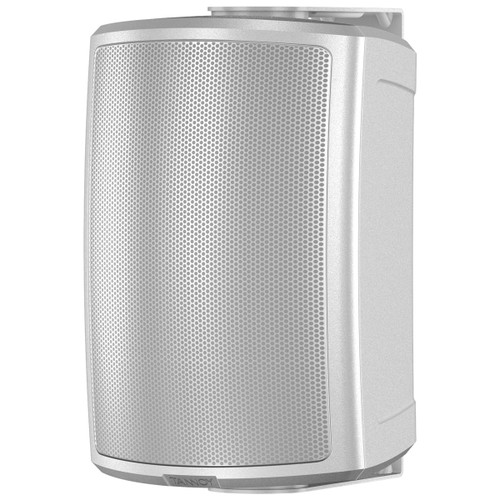

| Finish | White (Ral 9003) Black (Ral 9004) |
| Dimensions (H x W x D) | 9.77" (248 mm) x 6.10" (155 mm) x 8.03" (203.9 mm) |
| Net Weight | 7.16 lbs (3.25 kg) |
