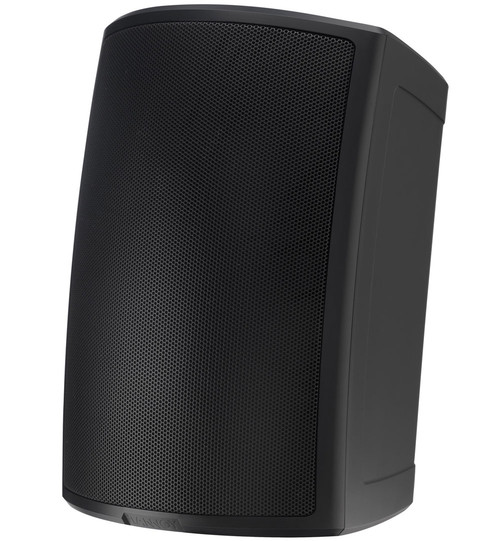

Tannoy AMS 8DC 8" Weather Resistant Loudspeakers - Pair

Part #:
TA-AMS8DC-BK
Model #:
AMS 8DC
Availability: Usually arrives in 3-6 weeks Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The Tannoy AMS 8DC is a wide bandwidth, high power-handling and high sensitivity surface mount loudspeaker designed with an aesthetic that is perfect for the architectural considerations of building design.

Description

The AMS 8DC is a wide bandwidth, high power-handling and high sensitivity surface mount loudspeaker designed with an aesthetic that is perfect for the architectural considerations of building design. The elegantly styled molded enclosures blend beautifully into any décor with custom color available on special order. Additionally, the AMS 8DC has undergone the most punishing environmental testing of any product in Tannoy's history – achieving an IP65 rating, which is among the highest in the industry for outdoor use.

Behind the unobtrusive, smoothly formed, weather-resistant zinc-plated nickel grilles and higher temperature polymer moldings, lies the technical heart of Tannoy's Dual Concentric Driver's revolutionary Omnimagnet™ technology and a unique patent-pending Torus Ogive Waveguide™ device. Together these innovations provide more consistent and controlled directivity along with improved high frequency response, as well as much improved time alignment and greater coherence between the low frequency and high frequency drivers.

This latest generation of Dual Concentrics has their genesis in many of the world's high end recording studios, with that classic signature Tannoy technology being used to mix and master a rich history of recording industry classics, including The Beatles' most treasured recordings in London's Abbey Road. By extension, the new AMS models ensure that playback of recorded material sounds exactly as the engineer intended when it was mixed in the studio, making them perfect for entertainment and hospitality venues, as well as areas where true sonic clarity and reliability is required.

The AMS range utilizes a 16 ohm driver, making it ideal for use in high performance low-impedance systems (with optimized performance when used in conjunction with Lab.gruppen LUCIA amplifiers). Alternatively, for constant voltage systems, Tannoy have specified as standard, high quality low-insertion loss 60W transformers featuring switching for taps at 60W, 30W and 15W, with an additional 7.5W tap for traditional systems.

Features

  • Next-generation Dual Concentric driver featuring Omnimagnet technology
  • Torus Ogive waveguide for improved broadband directivity
  • 16-ohm drivers optimized for use with Lab.gruppen LUCIA amplifiers

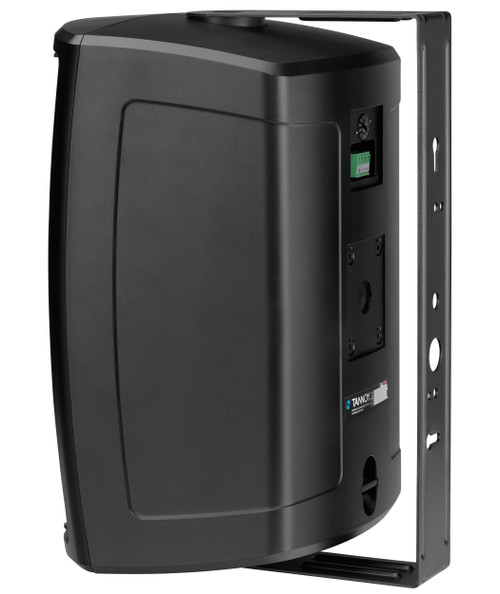

  • Yoke bracket included; optional any-angle accessory bracket available
  • Weather resistant rated IP65 to EN60529 (IEC529)
  • Thickened 5 mm high-temperature moulded cabinets
  • Custom color options

Specifications

Frequency Response (-3 dB) 65 Hz - 30 kHz
Frequency Range (-10 dB) 53 Hz - 40 kHz
System Sensitivity (1 W @ 1 m) 92 dB (1 W = 4 V for 16 Ohms)
Nominal Coverage Angle 90 degrees conical
Power Handling Average: 90W
Program: 180W
Peak: 360W
Recommended Amplifier Power 180 W @ 16 Ohms
Rated Maximum SPL Average: 111 dB
Peak: 117 dB
Transformer Taps 70V: 60W / 30W / 15W / 7.5W / OFF & low impedance operation
100V: 60W / 30W / 15W / OFF & low impedance operation
Transformer Setting Rotary switch
Dual Concentric Point Source Driver 1 x 8" (200 mm) Dual Concentric driver, using Omnimagnet technology
Low Frequency 1.75" (44 mm) voice coil, treated multi fiber paper pulp cone
High Frequency 1" (25 mm) PEI dome
Enclosure ABS
Grille Weather-resistant zinc nickel-plated steel grille
Connectors Removable locking connector with screw terminals
Included Accessories Yoke bracket
Packed Quantity 2
Finish White (Ral 9003)
Black (Ral 9004)
Dimensions (H x W x D) 16.13" (409.8 mm) x 10.24" (260 mm) x 12.06" (306.3 mm)
Net Weight 17.24 lbs (7.82 kg)
