The Tannoy CMS 1201DCT is a full bandwidth 800-Watt high sensitivity loudspeaker that utilizes our proprietary 12" Dual Concentric point-source driver, which delivers consistent broadband directivity (90° conical) with enhanced intelligibility – plus highly accurate and linear response.
CMS 1201DCT's 12" (300 mm) Dual Concentric constant directivity driver features a treated cone, plus a 1.34" (34 mm) aluminum dome with neodymium magnet system for powerful and highly intelligible music and speech reproduction. Frequency response ranges from 60 Hz - 20 kHz (-3 dB) with a maximum SPL of 126 dB (1 m, on axis). A low insertion loss 60 W line transformer multiple taps is provided for 70V and 100V line systems, as well as an 8 Ohm direct input.

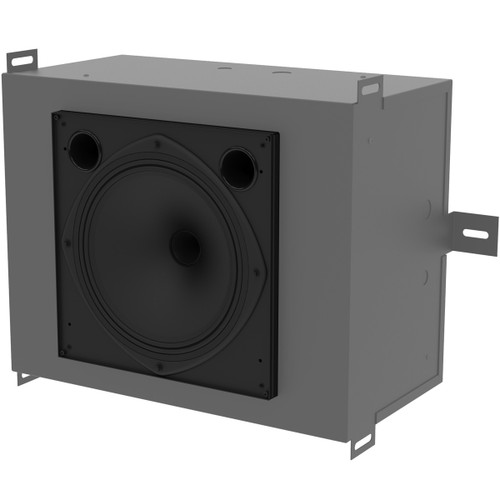

The custom-engineered powder coated steel back-can and grille assembly (available separately) has been designed to cater to all conceivable installation possibilities, making the CMS 1201DCT extremely versatile. The internally-dampened 79 liter (2.8 cubic feet) back-can provides exceptional LF performance that is easily on par with conventional wooden enclosure loudspeakers. Steel mounting lugs allow for fitting to a Unistrut roof rail system or for suspension via 4 top-mounted eye bolts. Alternatively, the design allows for a single point suspension, which can be handled via the use of M10 or 3/8" UNC screwed rod. Connection is quick and simple using terminal barrier strips inside the can, which are easily accessed via 20 and 29 mm conduit knockouts on all 5 sides. Installation can be facilitated by a single person, which can amount to considerable savings in large-scale projects.
The CMS 1201DCT is optimized to work in conjunction with LAB GRUPPEN amplification.
| Frequency Response (-3 dB) | 60 Hz - 20 kHz |
|---|---|
| Frequency Range (-10 dB) | 45 Hz - 30 kHz |
| System Sensitivity (1W @1m) | 97 dB (1W = 2.83V for 8 Ohms) |
| Nominal Coverage Angle | 90 Degrees Conical |
| Coverage Angle (1kHz to 6kHz) | 90 Degrees Conical |
| Directivity Factor (Q) | 8.9 |
| Directivity Index (DI) | 9.5 |
| Rated Maximum SPL | Average: 120 dB Peak: 126 dB With THP 60 - Average: 115 dB |
| Power Handling | Average: 200W Program: 400W Peak: 800W |
| Recommended Amplifier Power | 400W @ 8 ohms |
| Nominal Impedance | 8 ohms |
| Transformer Taps | 70V: 60W / 30W / 15W / 7.5W / OFF 100V: 60W / 30W / 15W / OFF |
| Crossover | 1.6 kHz - 2nd order LF, 2nd order HF |
| Low Frequency | 1 x 300 mm (12.00") Dual Concentric™ constant directivity driver with treated cone |
| High Frequency | 34 mm (1.34") aluminium done with neodymium magnet system |
| Backcan | 1.6 mm black powder coated steel, damped with 11 mm OSB board |
| Baffle | 1.2 mm black powder coated steel |
| Grille | 1.0 mm white powder coated perforated steel |
| Safety Features | Safety ring located at rear of enclosure for load bearing safety bond |
| Cable Entry Options | 20 mm and 28 mm on knockouts |
| Conduit Knockouts | 4 sides + top |
| Connectors | Terminal barrier strip inside the can, with loop thru capability |
| Dimensions (H x W x D) | 13.03" (331 mm) x 28.54" (725 mm) 20.31" (516 mm) |
| Net Weight | 17.4 lbs (7.6 kg) |
