Incorporating a newly refined version of Tannoy's proprietary ICT™ point-source driver, the CMS 403ICTe has been re-engineered for optimum compatibility with Lab.gruppen commercial amplifiers while also delivering consistent broadband directivity, precise articulation for voice and music, and exceptional long-term reliability.
The point source configuration of the Tannoy ICT driver's mid-bass and tweeter sections ensures a wide and controlled dispersion for optimum coverage, avoiding significant energy losses in the vertical plane at the crossover frequency, a flaw inherent in typical two-way designs. The ICT (Inductive Coupling Technology) drive unit also addresses two common component failures in background music systems: the tweeter and the crossover. Use of wireless electromagnetic coupling to drive the tweeter means that no crossover is required, making the ICT drive unit exceptionally reliable and ideal for applications where constant heavy usage is the norm. The mineral-loaded polypropylene cone material and nitrile rubber surround further enhance durability and long-term reliability.

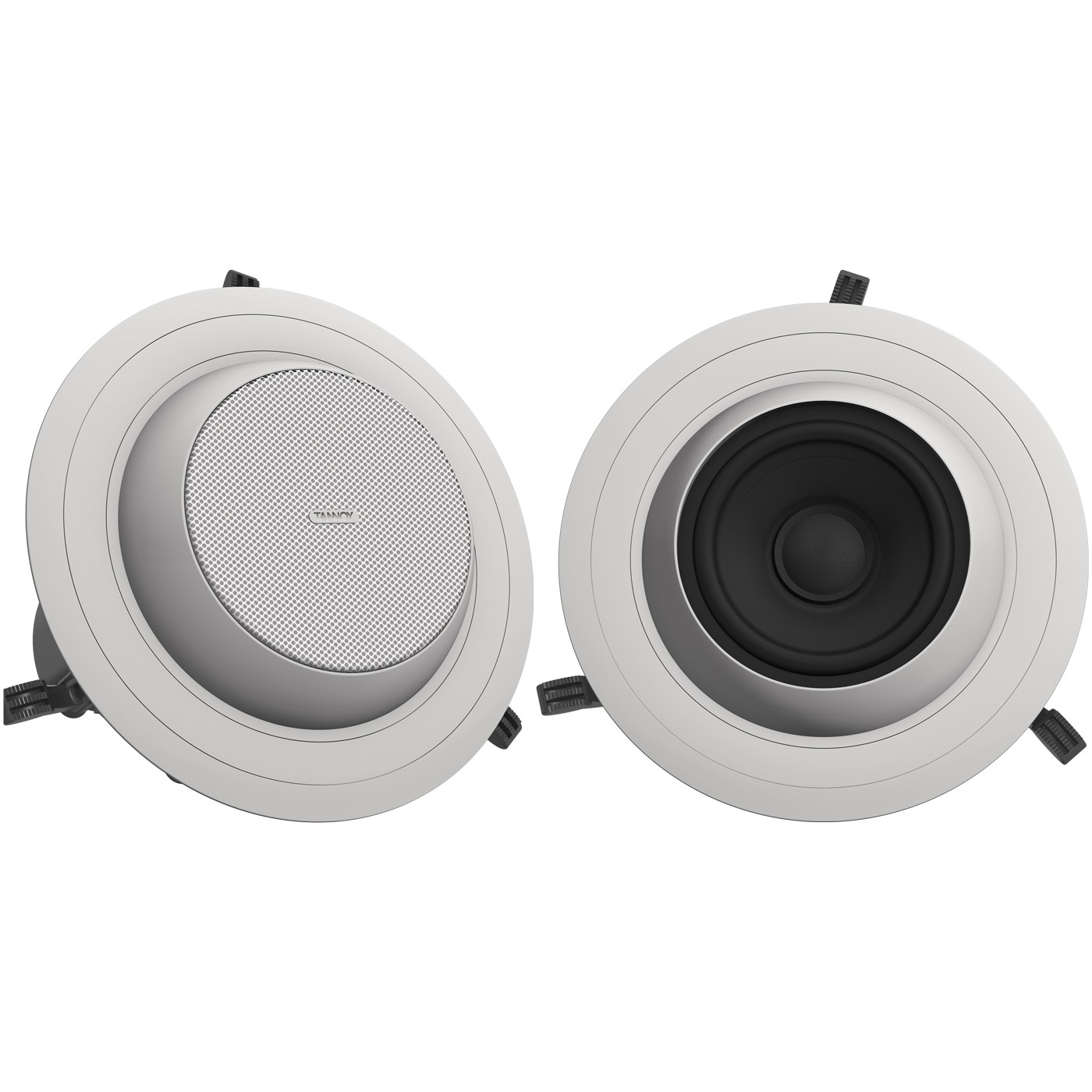

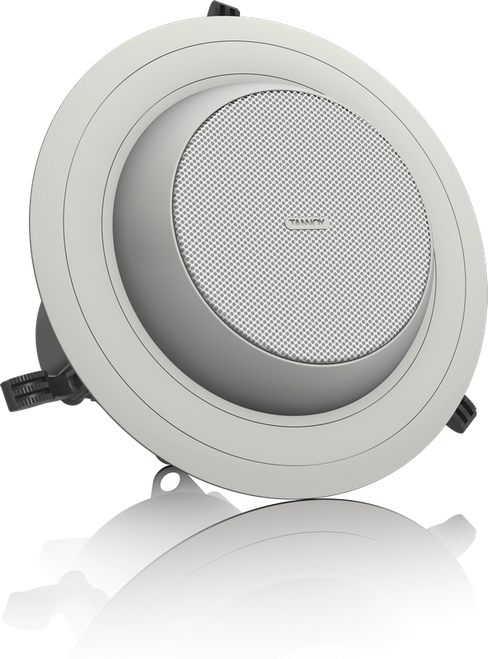

Specifically designed for fast, simple and cost effective installation in new and existing buildings, the CMS 403ICTe features a self-aligning clamp system. The "eyeball" design allows the driver to be entirely angled towards the listener within the fixed ceiling-mounting ring.
The CMS 403ICTe utilizes a 16 ohm driver, making it ideal for use in high performance low-impedance systems (with optimized performance when used in conjunction with Lab.gruppen LUCIA amplifiers). A low-insertion loss 30W transformer is included, with convenient front switching for taps at 30W, 15W and 7.5W, with an additional 3.75W tap for traditional constant voltage systems.
The CMS 403ICTe is supplied with an integral back-can, ready to install as a single unit. The removable locking connector has screw terminals for secure wire termination and loop-thru facility. All models are supplied with two tile support rails and one C-ring; a plaster mud ring is available as an optional accessory.
| Performance | |
|---|---|
| Frequency Response (-3 dB) | 110 Hz - 22 kHz |
| Frequency Range (-10 dB) | 80 Hz - 24 kHz |
| System Sensitivity (1W @ 1 m) | 88 dB (1W = 4V for 16 Ohms) |
| Nominal Coverage Angle | 90 degrees conical |
| Coverage Angle (1 kHz to 6 kHz) | 120 degrees conical |
| Directivity Factor (Q) | 5.26 averaged 1 kHz to 6 kHz |
| Power Handling | 5.26 averaged 1 kHz to 6 kHz Average: 50W Programme: 100W Peak: 200W |
| Recommended Amplifier Power | 100W @ 16 Ohms |
| Nominal Impedance (Lo, Z) | 16 Ohms |
| Rated Maximum SPL | Average: 105 dB Peak: 111 dB |
| Transformer Taps (via front rotary switch) | 70V: 30W (165 Ohms) / 15W (330 Ohms) / 7.5W (660 Ohms) / 3.75W (1320 Ohms) / OFF & low impedance operation 100V: 30W (330 Ohms) / 15W (660 Ohms) / 7.5W (1320 Ohms) / OFF & low impedance operation |
| Crossover | 7 kHz inductively coupled |
| Transducers | |
| Low Frequency | 4" (100 mm) mineral loaded polypropylene |
| High Frequency | 0.75" (19 mm) ICT™ aluminium dome |
| Physical | |
| Enclosure | Back Can: Reflex loaded UL 94 V-0 rated ABS Baffle: Reflex loaded UL 94 V-0 rated ABS Grille: Steel, with weather resistant coating |
| Safety Features | Safety ring located at rear of enclosure for load bearing safety bond |
| Clamping Design | Min / Max Clamping Range: 0.0 mm (0.00") / 20.0 mm (0.79") Recommended Clamp Torque: 1.5 Nm |
| Connectors | Removable locking connector with screw terminals with "loop through" facility |
| Hole Cutout Diameter | 7.36" (187 mm) |
| Included Accessories | C Ring Tile bridge Paint mask Cutout template Grille |
| Optional Accessories | Plaster (mud) ring |
| Packed Quantity | 2 |
| Dimensions | Bezel diameter: 8.07" (205 mm) Front of ceiling to rear of pod: 5.81" (147.6 mm) |
| Net Weight (ea) | 6.31 lbs (2.86 kg) |
