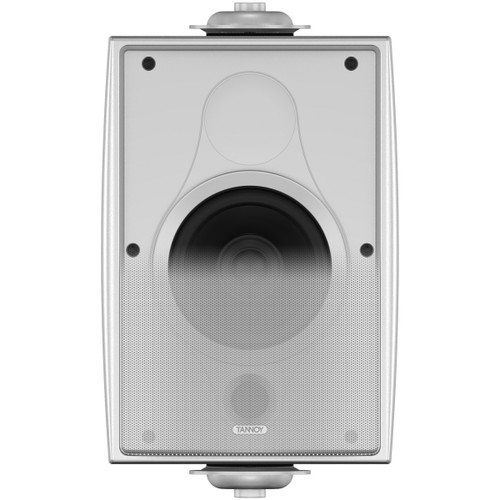

Tannoy DVS 4T (EN 54) 4" EN 54 Certified Compact Surface-Mount Loudspeaker with Transformer (Discontinued)
Usually arrives in 5-9 business days.
Designed to excel in a wide variety of sound reinforcement applications, the full range Tannoy DVS 4 is an ultra-compact 160-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance. The DVS 4 is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants, and bars, retail stores, as well as corporate AV, residential developments, and houses of worship.
Designed to excel in a wide variety of sound reinforcement applications, the full range DVS 4 is an ultra-compact 160-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance. The DVS 4 is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship.
Superb Point-Source Performance

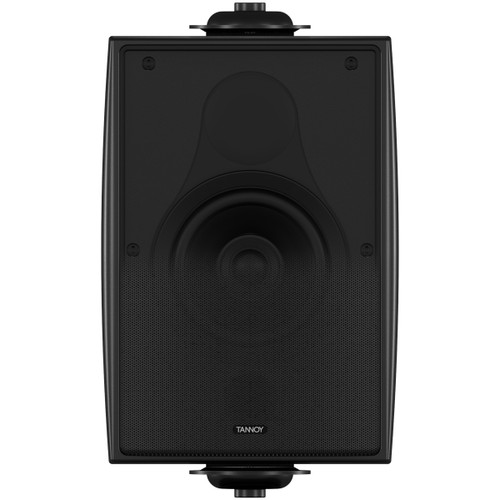

DVS 4's point-source design comprises a 100 mm (4.00") mid bass driver with a coaxially mounted 19 mm (0.75") high-frequency section mounted in a stylish injection molded ABS enclosure. Certified for water and dust ingress protection to IP64 standard, the DVS 4 is an exceptional choice for challenging environments such as indoor swimming pools, saunas, or work areas with unusually high levels of dust or moisture, and outdoor applications where weather conditions are moderate.
Attractive and Easy to Install

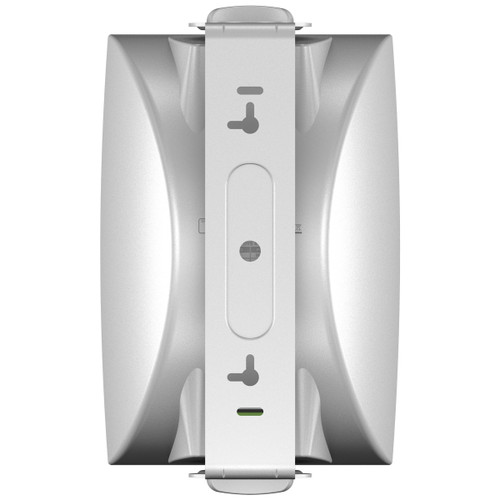

The highly durable and scuff resistant ABS enclosure features a black painted finish and comes with an aesthetically pleasing aluminum grille. Installation is quick and easy, thanks to the included color-matched steel mounting bracket and finger-adjustable hardware on the enclosure top and bottom. Phoenix connectors for input and link output are provided for convenience.
| Frequency Response (-3dB) | 75Hz – 20kHz |
|---|---|
| Frequency Range (-10dB) | 60Hz – 30kHz |
| System Sensitivity (1W @ 1m) | 84 dB |
| Dispersion (Degrees Conical) | 110° |
| Transducers | Low frequency: 100 mm (4.00") mineral loaded cone material High frequency: 20 mm (0.79") |
| Crossover | 3.9 kHz - 2nd order LF, 2nd order HF |
| Directivity Factor (Q) | 6.5 averaged 1 kHz to 10 kHz |
| Directivity Index (DI) | 5.3 averaged 1 kHz to 10 kHz |
| Rated Maximum SPL | Average: 100 dB Peak: 106 dB |
| Power Handling | Average: 40W Program: 80W Peak: 160W |
| Recommended Amplifier Power | 80W @ 6 Ohms |
| Nominal Impedance | 6 Ohms |
| Distortion (10% Full Power) | 2nd Harmonic: 0.738%, 0.145%, 0.070% 3rd Harmonic: 2.20%, 0.234%, 0.070% |
| Distortion (1% Full Power) | 2nd Harmonic: 0.320%,0.078%, 0.087% 3rd Harmonic: 0.311%, 0.174%, 0.087% |
| Construction | |
| Enclosure | ABS |
| Grille | Steel, plated and painted |
| Connectors | Euroblock type removable locking connector with screw terminals with "loop through" facility |
| Supplied Accessories | Yoke bracket |
| Dimensions (H x W x D) | 10.91" (277 mm) x 6.71" (170.4 mm) x 6.52" (165.6 mm) |
| Net Weight | 5 lbs (2.26 kg) |
| Shipped Weight | 12.6 lbs (5.71 kg) |
