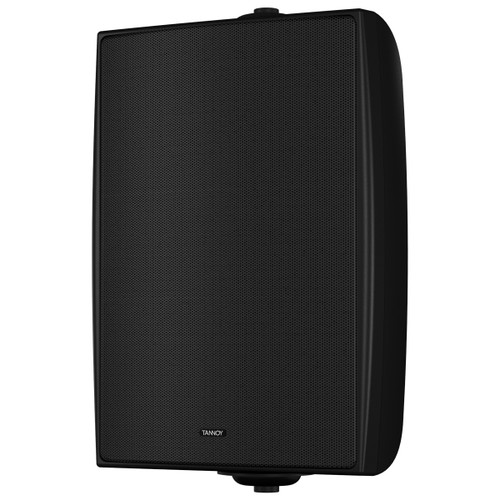

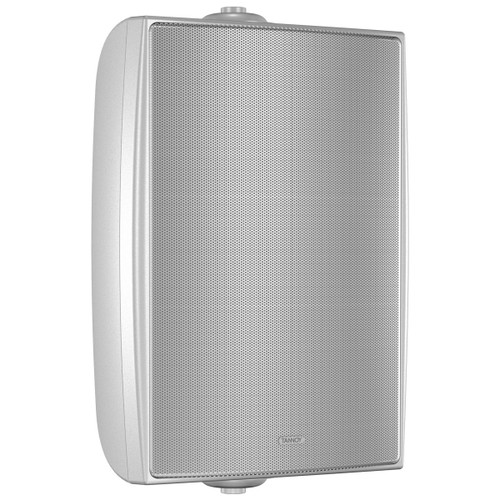

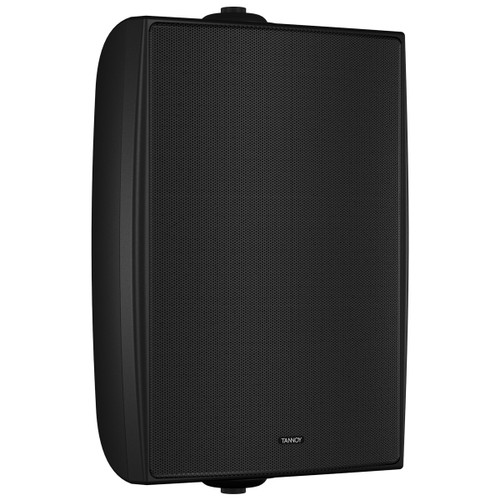

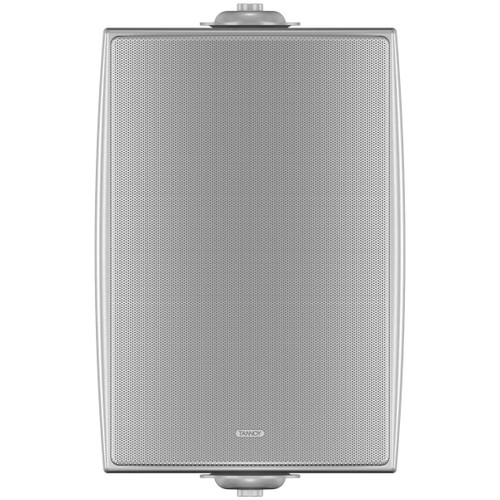

Designed to be part of voice alarm systems and fully compliant with EN54 - 24, the Tannoy DVS 6 (EN54) is an ultra-compact surface mount loudspeaker of exceptional value and acoustic performance. A full bandwidth loudspeaker primarily designed for commercial, professional and residential applications where environmental durability and high-quality sound reproduction are required. For both indoor and limited outdoor use, these speakers are ideally suited to stereo or monaural background or foreground music systems in such applications as diverse as theme park attractions, retail premises, restaurants and cafes, hotel lobbies and bars, corporate audio visual, residential developments and houses of worship.

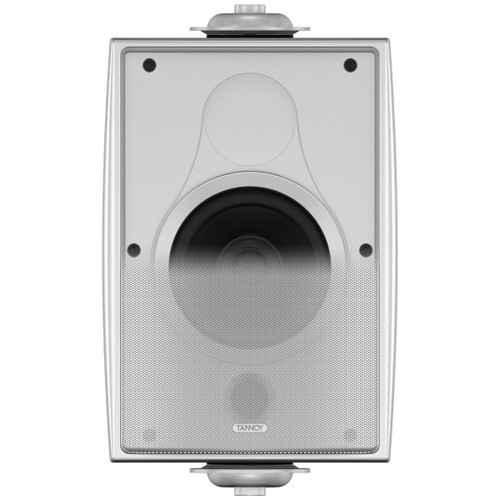

The point-source design comprises a 150 mm (6.00") mid bass driver with a coaxially mounted 19 mm (0.75") high-frequency section mounted in a stylish injection molded surface-mount enclosure manufactured from ABS material. The new device is certified for water and dust ingress protection to IP64 standard making it a perfectly capable performer in challenging interior areas such as swimming pools, saunas or work areas where unusually high levels of dust or moisture may be present, as well as most outdoor applications where extreme environmental or harsh weather conditions are not a typical concern.

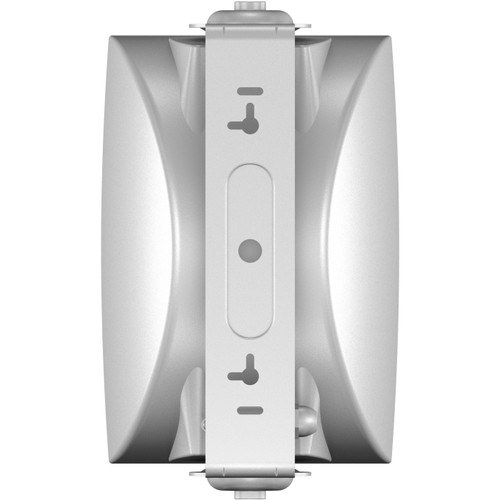

The highly durable and scuff resistant, high impact ABS enclosure comes with an aluminum grille designed with an optimum aesthetic sensitivity in mind. A steel mounting bracket is included, which fits easily to the device via finger-tightened plastic screw-nut on the top and bottom of the enclosure, making installation quick and hassle-free. Thanks to the point-source driver design, the DVS 6 (EN54) can be mounted vertically or horizontally without compromising the dispersion and coverage control.
While usable in low impedance mode, it is equipped with an internally mounted low insertion loss line transformer for 70 V or 100 V distributed sound applications. Wattage taps are configurable to the following settings via a rotary tapping switch, which is located on the back panel.
Applications:
- Voice Alarm Systems
- Indoor and Outdoor Commercial, Professional and Residential Installations
- High-Level Stereo or Monaural Background or Foreground Music and Speech Paging Systems
- Theme Parks
- Theme Bars
- Boardrooms & Offices
- Business Music Systems
- Airports, Convention Centres, Hotels
- Reception / Waiting Rooms
- Retail Outlets / Shopping Malls
- Restaurants and Cafes
- Corporate audiovisual
- Residential developments
