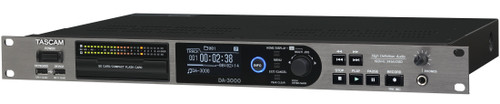

The DA-3000 is perfectly designed for stereo PCM/DSD recordings at high sampling frequencies suitable for archival masters. This magnificent unit is capable of recording analog and digital signals up to 192kHz PCM or 5.6MHz DSD. The unit records to both SDHC cards and UDMA supported CF cards.
The variety of inputs and outputs enable connection with all types of studio equipment, including audio interfaces and mic preamps. The analog inputs and outputs include both XLR and RCA jacks. The digital connections include S/PDIF RCA coaxial and XLR jacks to support AES/EBU. The BNC SDIF-3 inputs and outputs support DSD digital connections.
With the goal of making a high-quality audio recorder and ADDA converter easy to use, we designed the front panel with all of the necessary external controls and included long, brightly lit meters and display. The 128x64 OEL display allows you to check necessary information quickly, and the 24-dot level meters allows you to confidently monitor levels at all times.
You can synchronize the operation of multiple DA-3000 units by interconnecting their digital inputs and outputs. Files that have been recorded in sync will have sample-level synchronization as well. In addition to stereo DSD recording of Jazz and classical music, this also makes simple DSD multitrack recording of bands possible.
| Supported Media | |
|---|---|
| SD | Supports 4GB to 32GB SDHC cards (Media ejection method: push-push) |
| CF | Supports 1GB to 64GB Type I CF cards |
| USB (Playback and Copying Only) | Supports 2GB to 64GB USB flash drives |
| Recording and Playback Formats | |
| PCM | BWF (rec/play) / WAV (playback only), 44.1/48/88.2/96/176.4/192kHz, 16/24bit |
| DSD | DSDIFF / DSF, 2.8224/5.6448MHz |
| Number of Channels | 2 mono (or 1 stereo) |
| Control Input and Output | |

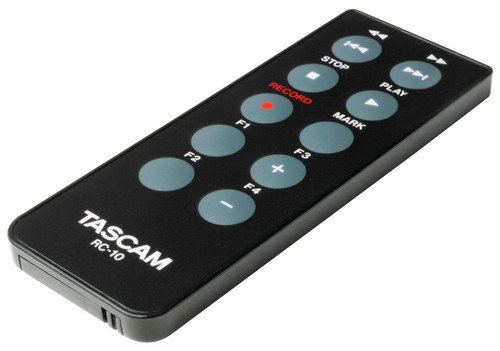

| Infrared Receiver | TASCAM RC-10 wireless remote controller |
| Phones | |
| Connecter | Standard 6.3 mm (1/4") stereo jack |
| Maximum Output | 45mW + 45mW (into 32 ohms load, 0.1% distortion) |
| Audio Performance (Rec/Play) | |
| Distortion (THD+N, 1kHz) | 0.003% or less (Ref: -16dB/BALANCED, JEITA) 0.005% or less (UNBALANCED, JEITA) |
| PCM (24bit mode) | 113dB or higher (Ref: -20dB/BALANCED, JEITA) 111dB or higher (UNBALANCED, JEITA) |
| DSD | 106dB or higher (Ref: -20dB/BALANCED, AES-17 20k LPF) 104dB or higher (UNBALANCED, AES-17 20k LPF) |
| Crosstalk (1kHz) | 108dB or higher (JEITA) |
| Audio Performance (Playback) | |
| Distortion (THD+N, 1kHz) | 0.003% or less (Ref: -16dB/BALANCED, JEITA) 0.001% or less (UNBALANCED, JEITA) |
| PCM | 118dB or higher (Ref:-20dB/BALANCED, JEITA) 116dB or higher (UNBALANCED, JEITA) |
| DSD | 116dB or higher (Ref:-20dB/BALANCED, AES-17 20k LPF) 114dB or higher (UNBALANCED, AES-17 20k LPF) |
| Control Input and Output | |
| Infrared Receiver | TASCAM RC-10 wireless remote controller |
| General | |
| Power | AC120V, 60Hz (US/Canada Version) AC220-240V, 50-60Hz (UK/EUR/Australia Version) |
| Power Consumption | 24W |
| Operating Temperature Range | 0 - +40˚C |
| Standard Accessories | 3P power cord, wireless remote controller (TASCAM RC-10), coin battery for testing remote control (preinstalled), screw kit for rack-mounting, warranty card, owner’s manual |
| Dimensions (H x W x D) | 1.77" (45 mm) x 19" (483 mm) x 12" (305 mm) |
| Weight | 9.26 lbs (4.2 kg) |
