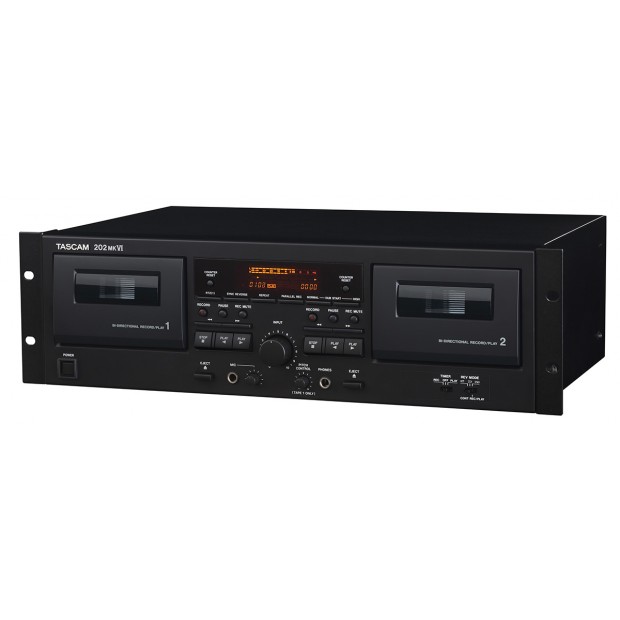

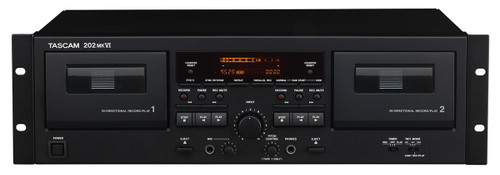

Tascam 202mkVI Dual Cassette Recorder (Discontinued)

Part # 202mkVI
Model # 202mkVI

The Tascam 202mkVI Dual Cassette Recorder is the only choice for professional studios, houses of worship and other installations needing reliable cassette performance. The two twin-head decks can be used for recording or playback, and Dolby noise reduction is provided (types B and HX Pro).

Description

Details

The Tascam 202mkVI Dual Cassette Recorder is the only choice for professional studios, houses of worship and other installations needing reliable cassette performance. The two twin-head decks can be used for recording or playback, and Dolby noise reduction is provided (types B and HX Pro). The 202mkV can be used as a normal or high-speed dubber, and even sync reverse dubbing is provided.

New on the mark V model are a return to zero feature and A-B repeat, which can playback a section of tape up to 20 times. Deck 1 still has ±12% pitch control, and a front panel microphone input is available for convenient recording. Rely on TASCAM's 202mkV for consistant cassette recording you can mount in any rack.

Features

Features

  • Return to Zero
  • A-B Repeat (20 times)
  • Continuous Play
  • +/-12% Pitch Control on Deck 1
  • Power on Play and Record
  • Continuous Recording
  • Both Decks Record for Simultaneous Masters
  • Normal and Hi speed dubbing
  • Sync Reverse Dubbing
  • Dolby NR B type and HX PRO
  • Front Mic input with level control
  • 3U Rack mountable
  • Tape type: normal, chrome and metal (play only)
Specification
Track System4-track, 2-channel stereo
Heads ConstructionRecord/playback head x 1 (each deck)Erase head x 1 (each deck)
Tape Speed4.8 cm/sec9.5 cm/sec (high-speed dubbing mode)
Pitch Control+/-12%
Fast Winding TimeApproximately 160 sec (C-60 tape)
MotorDC servo motor (Capstan)
(TAPE 1x1, TAPE 2x1)
Wow and Flutter0.25% (WRMS)
Frequency ResponseSpecifications
Metal tape (Type IV, playback only)30 Hz-19 kHz
Chrome tape (Type II)30 Hz-18 kHz
Normal tape (Type I)30 Hz-17 kHz
Signal to Noise Ratio (Overall)58 dB (Dolby NR OFF, nominal recording level)69 dB (Dolby NR ON, CCIR-ARM)
Line Input (RCA jack)100 mV (input impedance 50k ohms)
Mic Input (mono 1/40.38 mV (input impedance 200k ohms)
Line Output (RCA jack)0.46 V (load impedance 50k ohms or more)
Headphones Output (stereo 1/41 mW/32 ohms
Power Requirements120 V AC, 60 Hz
Power Consumption22 W
Dimensions
(H x W x D)
11.26" (286 mm) x 18.95" (482 mm) x 5.45" (138.5 mm)
Weight8.8 lbs (4.0 kg)
