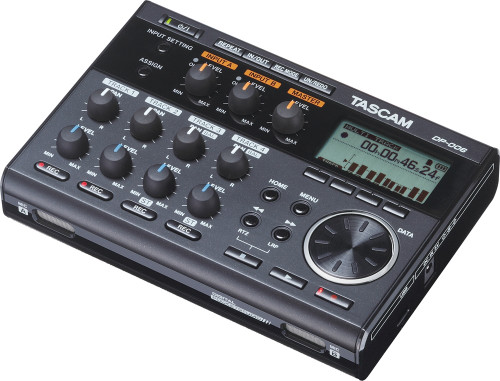

Tascam DP-006 Digital Multitrack Recorder (Discontinued)

Part #:
DP-006
Model #:
DP-006
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The Tascam DP-006 is a 6 track digital pocketstudio. The perfect "Music Sketch Pad" with built-in microphones for multi-track recording anytime, anywhere.

Description

Song ideas can happen anywhere and with the DP-006 you're ready. Jot down all of the key components to your songs using these professional sounding multi-track recorders. Be ready wherever creativity strikes. For elongated battery life these models can connect directly to TASCAM's external battery pack (BP-6AA) via USB.

The DP-006 is built with two condenser microphones directly in the front of the units. Record vocals or acoustic guitar anytime without the need for extra equipment or set-up time. TASCAM held many evaluation tests to secure the best sounding microphones and structures. Modeled after the top-selling DR series microphones, you can be assured you're receiving top-quality.

The DP-006 features ultra light-weight designs to ensure portability. The DP-006 is 0.79 lbs (Without AA batteries).

The DP-006 is optimally designed for on-the-spot recording. No unnecessary features included that might complicate the recording to ensure easy functionality. Designed with Analog functionality and dedicated control knobs this POCKETSTUDIO is the simplest to use songwriting scratchpads on the market.

The DP-006 have two input terminals by phone-jack, these terminals provide to connect an external microphone, an electric-acoustic guitar and a line-level device like a synthesizer. If you prepare any conversion cable, a tablet device like a iPad will be able to connect.

Features

  • Up to six tracks recording (2mono tracks+ 2mono/stereo switchable tracks)
  • CD quality recording (16bit/44.1kHz)
  • Two tracks simultaneous recording/ six tracks simultaneous playback
  • Dedicated stereo master track available
  • Record to SD/SDHC card (Up to 32GB)
  • 2 Built-in omni-directional condenser microphones
  • Microphone sensitivity can be selected from 3-positions (Low/Mid/High)
  • Two TS 1/4" mic/line inputs
  • INPUT A can connect high-impedance instrument directly (Like an electric-guitar)
  • Independent LEVEL/PAN (BALANCE) knobs for each track
  • 15mW/ch headphone output
  • 128x64 dot-matrix LCD
  • Four AA batteries operation up to 9 hours (When recording, using the eneloop battery)
  • Optional AC adapter ready (TASCAM PS-P520)
  • Can connect to an external battery pack (TASCAM BP-6AA)
  • Tripod screw hole
  • Direct locate function by jog-wheel
  • Repeat playback between IN/OUT point
  • Track edit functions (CLONE TRACK, CLEAN OUT, SILENCE, CUT, OPEN)
  • Bounce function allows recording of more six tracks
  • UNDO/REDO (UNDO HISTORY) function
  • Chromatic tuner and metronome included
  • High-speed data transfer by USB 2.0 connection
  • Backup and restore songs
  • File import/export by Wav format (mono/stereo)
  • Export stereo master file as stereo wav format
  • 4GB SD card included

Specifications

Recording Media SD card (512MB-2GB), SDHC card (4GB-32GB)
File System TASCAM original (MTR partition) FAT32 (FAT partition)
1/4 in. TS-Jack
Connectors 6.3 mm (1/4") TS-jack, UNBALANCED
Input Impedance 10k ohms or more (INPUT A: MIC/LINE), 1MΩ (INPUT A: GUITAR)
Nominal Input Level -10dBV
Maximum Input Level +6dBV
Headroom 16dB
Built-In Microphones Omni-directional condenser microphone x 2
Line Out
Connectors 3.5 mm (1/8") stereo mini jack
Nominal Output Level -16dBV
Maximum Output Level 0dBV
Phones
Connectors 3.5 mm (1/8") stereo mini jack
Maximum Output Level 15mW+15mW (THD+N less than 0.1%, 32 ohms loaded)
USB
Connectors USB Mini-B type 4-pin
Format USB 2.0 HIGH SPEED mass storage class
Continuous Battery Operation Time
Alkaline Battery (EVOLTA) About 8H (Using line input/recording)
About 8.5H (Using headphone/playback)
Nickel-Metal Battery (Eneloop) About 9H (Using line input/recording)
About 9.5H (Using headphone/playback)
Power Four AA batteries (Alkaline or nickel-metal battery) AC adapter (TASCAM PS-P520, sold separately)
Power Consumption 1W (Maximum)
Operating Temperature 5-35˚C
Frequency Response 20Hz to 20kHz (+1/-3dB, INPUT (MIC/LINE) to LINE OUT)
Distortion Less than 0.05% (INPUT (LINE) to LINE OUT)
S/N Ratio More than 81dB (INPUT (MIC/LINE) to LINE OUT)
Dimensions (H x W x D) 1.63" (41.5 mm) x 6.10" (155 mm) x 4.21" (107 mm)
Weight 0.79 lbs (0.36 kg) (Without batteries)
