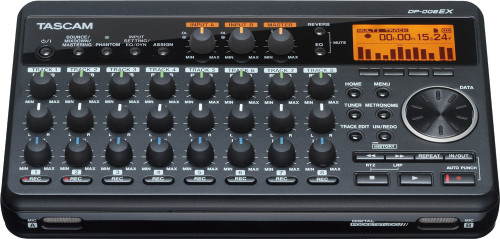

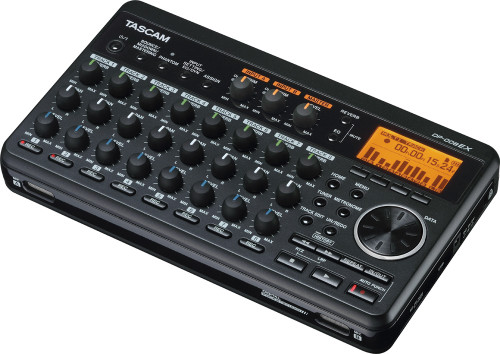

The Tascam DP-008EX is an 8 track digital pocketstudio. The perfect "Music Sketch Pad" with built-in microphones for multi-track recording anytime, anywhere.

Description

Song ideas can happen anywhere and with the DP-008EX you're ready. Jot down all of the key components to your songs using these professional sounding multi-track recorders. Be ready wherever creativity strikes. For elongated battery life these models can connect directly to TASCAM's external battery pack (BP-6AA) via USB.

The DP-008EX is built with two condenser microphones directly in the front of the units. Record vocals or acoustic guitar anytime without the need for extra equipment or set-up time. TASCAM held many evaluation tests to secure the best sounding microphones and structures. Modeled after the top-selling DR series microphones, you can be assured you're receiving top-quality.

The DP-008EX features ultra light-weight designs to ensure portability. The DP-008EX is 1.34 lbs (Without AA batteries).

The DP-008EX is optimally designed for on-the-spot recording. No unnecessary features included that might complicate the recording to ensure easy functionality. Designed with Analog functionality and dedicated control knobs this POCKETSTUDIO is the simplest to use songwriting scratchpads on the market.

The DP-008EX have two input terminals by phone-jack, these terminals provide to connect an external microphone, an electric-acoustic guitar and a line-level device like a synthesizer. If you prepare any conversion cable, a tablet device like a iPad will be able to connect.

Features

  • Portable 8-track recorder that can record 2 tracks simultaneously and play back 8 tracks
  • CD-quality recording (16-bit, 44.1kHz)
  • Built-in omnidirectional stereo condenser mic suppresses pickup of background noise (Low and High input gain settings)
  • Guitars and basses can be directly connected to 2 mic/line inputs (INPUT A/B)
  • Independent LEVEL, PAN and REVERB knobs for each track allow intuitive operation
  • Wheel allows rapid location to specific points (direct location function)
  • Set and use IN and OUT points as you like for repeat playback and editing
  • Separate stereo master track in addition to 8 independent tracks
  • Bounce function allows recording of more than 8 tracks
  • Punch in/out function allows parts to be re-recorded as necessary
  • Track editing functions include duplicating and deleting recorded tracks, partial clearing and deletion and silence insertion
  • Recording and editing operations can be undone and redone
  • Chromatic tuner with meters provides visual feedback during tuning
  • Metronome
  • Transfer files to computers connected by USB 2.0
  • Backup and restore songs
  • Import and export stereo WAV files to stereo tracks
  • Export stereo masters as stereo WAV files
  • Operates on four AA batteries or a TASCAM PS-P520 AC adaptor (sold separately)
  • 2GB SD card included

Specifications

Recording Media SD card (512MB-2GB), SDHC card (4GB-32GB)
File System TASCAM original (MTR partition) FAT32 (FAT partition)
XLR
Connectors XLR-3-31 (1:GND, 2:HOT, 3:COLD), BALANCED
Input Impedance 2.4k ohms
Nominal Input Level -8dBu
Maximum Input Level +8dBu
1/4 in. TS-Jack
Connectors 6.3 mm (1/4") TS-jack, UNBALANCED
Input Impedance 10k ohms or more (INPUT A: MIC/LINE), 1MΩ (INPUT A: GUITAR)
Nominal Input Level -10dBV
Maximum Input Level +6dBV
Headroom 16dB
Built-In Microphones Omni-directional condenser microphone x 2
Line Out
Connectors RCA pin-jack
Nominal Output Level -10dBV
Maximum Output Level +6dBV
Phones
Connectors 3.5 mm (1/8") stereo mini jack
Maximum Output Level 20mW+20mW or more (THD+N less than 0.1%, 32ohms loaded)
USB
Connectors USB Mini-B type 4-pin
Format USB2.0 HIGH SPEED mass storage class
Continuous Battery Operation Time
Alkaline Battery (EVOLTA) About 5.5H (Using line input/recording)
About 6H (Using headphone/playback)
Nickel-Metal Battery (Eneloop) About 6.5H (Using line input/recording)
About 7H (Using headphone/playback)
Power Four AA batteries (Alkaline or nickel-metal battery) AC adapter (TASCAM PS-P520, sold separately)
Power Consumption 2.4W (Maximum)
Operating Temperature 5-35˚C
Frequency Response 20Hz to 20kHz (+1/-3dB, INPUT (MIC/LINE) to LINE OUT)
Distortion Less than 0.05% (INPUT (LINE) to LINE OUT)
S/N Ratio More than 81dB (INPUT (MIC/LINE) to LINE OUT)
Dimensions (H x W x D) 1.74" (44.3 mm) x 8.7" (221 mm) x 4.98" (126.5 mm)
Weight 1.34 lbs (0.608 mm) (Without batteries)
