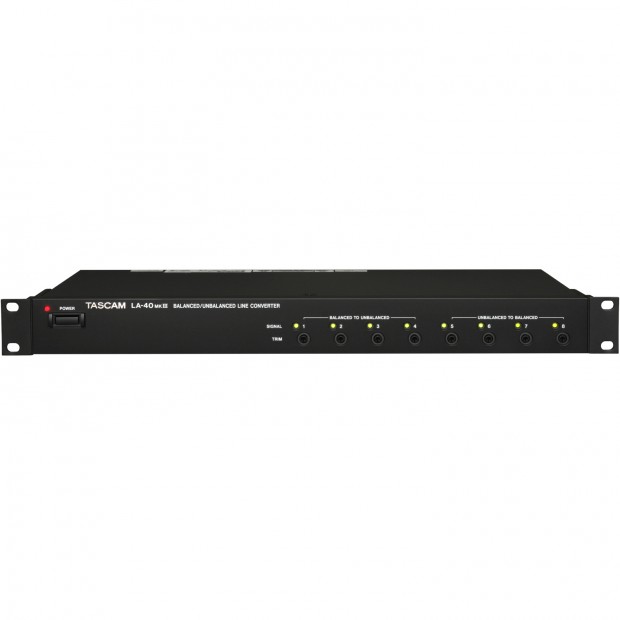

Tascam LA-40mkIII 4-Channel Bi-Directional Line Level Converter (Discontinued)

TASCAM’s popular LA-40mkIII offers four channels of bi-directional balancing and unbalancing for installation, studio, and broadcast applications. The ±12dB trim controls provide perfect level matching between components. Signal present LEDs make system design and troubleshooting simple. The unit is packaged in a black rack case with standard chassis depth for easier wiring.

The LA-40mkIII proves ideal for source audio racks that need to transfer long distances, or for recording systems that mix unbalanced and balanced equipment. Ideal for integrating semi-pro and AV equipment to professional systems, the LA-40mkIII provides TASCAM’s impressive audio specifications and legendary reliability.

• Unbalanced connectors: RCA
• Balanced connectors: XLR
• Trim control for fine level adjustment of +/- 12dB
• Signal Present LED per channel

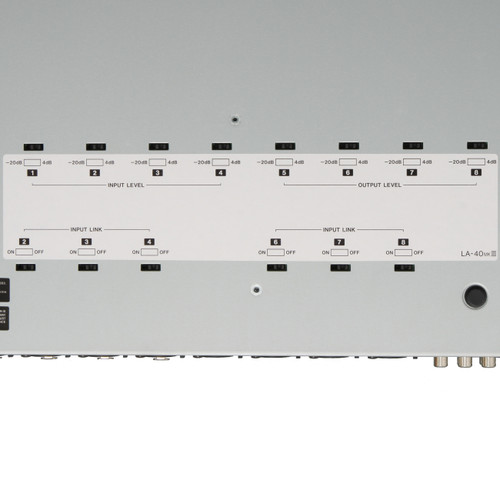

• Balanced I/O level: +4dBu/-20dBu, selectable per channel
• Unbalanced I/O level: -10dBV
• Ground Lift switch per channel
• All Lift Switch disables ground connections for entire unit
• Earth terminal
