Tascam LA-80mkII 8-Channel Unbalanced to Balanced Audio Converter (Discontinued)

TASCAM’s popular LA-80mkII offers the ultimate line amplifier performance for demanding installations. It includes a ±12dB trim control for better matching of levels between components. A signal present LED proves useful during system design and troubleshooting. The unit is packaged in a black rack case with standard chassis depth for easier wiring.

The LA-80mkII is an eight-channel unbalanced to balanced line amplifier with impressive audio specifications. It proves ideal for source audio racks that need to transfer long distances, or any time unbalanced sources need to be connected to balanced components. When reliability and sound quality are crucial, there is no better choice than TASCAM’s LA-80mkII

• Unbalanced connectors: RCA
• Balanced connectors: XLR
• Trim control for fine level adjustment of +/- 12dB
• Signal Present LED per channel

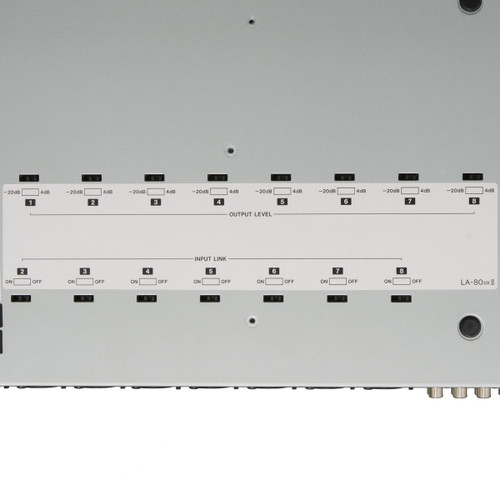

• Input level: +4dBu/-20dBu, Output level: -10dBV, selectable per channel
• Ground Lift switch per channel
• All Lift Switch disables ground connections for entire unit
• Earth terminal

Technical Information

Owner's Manual
