TeachLogic Forum Classroom System with 4 Wall Mount Speakers and Microphone (Discontinued)

By TeachLogic

TeachLogic Forum Classroom System with 4 Wall Mount Speakers and Microphone (Discontinued)

Write a Review

Part #:

IRF-3150/WM-4

Model #:

IRF-3150/WM-4

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The TeachLogic Forum Classroom System is a completely self-contained infrared wireless microphone sound system for portable use or permanent installation.

Description

The TeachLogic Forum Classroom System is a completely self-contained infrared wireless microphone sound system for portable use or permanent installation. The two auxiliary inputs provide multimedia integration with even distribution of sound for all audio in the classroom. It has two separate outputs for assistive listening and recording with active boards.

The SP-2000 is a full range 2-way compact wall mount/shelf mount speaker, providing low distortion and a smoother frequency response ideal for articulate vocal clarity for more even coverage. The included wall-mount bracket enables the unit to be secured against a wall or other flat surface.

The Sapphire is a stylish lightweight classroom microphone. So small, it’s hardly noticeable to wear. It can be worn with a lanyard or clipped directly to your neckline collar. The Sapphire’s vocal clarity is unsurpassed. It boasts high level output, reliable connectivity and exceptional definition. With a built-in breath filter, the Sapphire can also function as a pass-around hand mic.

Features

SP-2000 Wall Mount Speakers:

Two-way speaker
6" woofer and a high efficient 1" mylar domed tweeter
Passive crossover
Housed in a ported enclosure
Shielded magnet to prevent video interference
Frequency Response: 80 Hz–16,000 Hz, ± 6dB
Impedance: 8 Ω
Power Handling: 30 watts Continuous
Structural reinforced ABS enclosure with metal mesh grille
Mounting bracket for wall-mount or desk top stance
Spring terminal for secure speaker wire connection
White Color

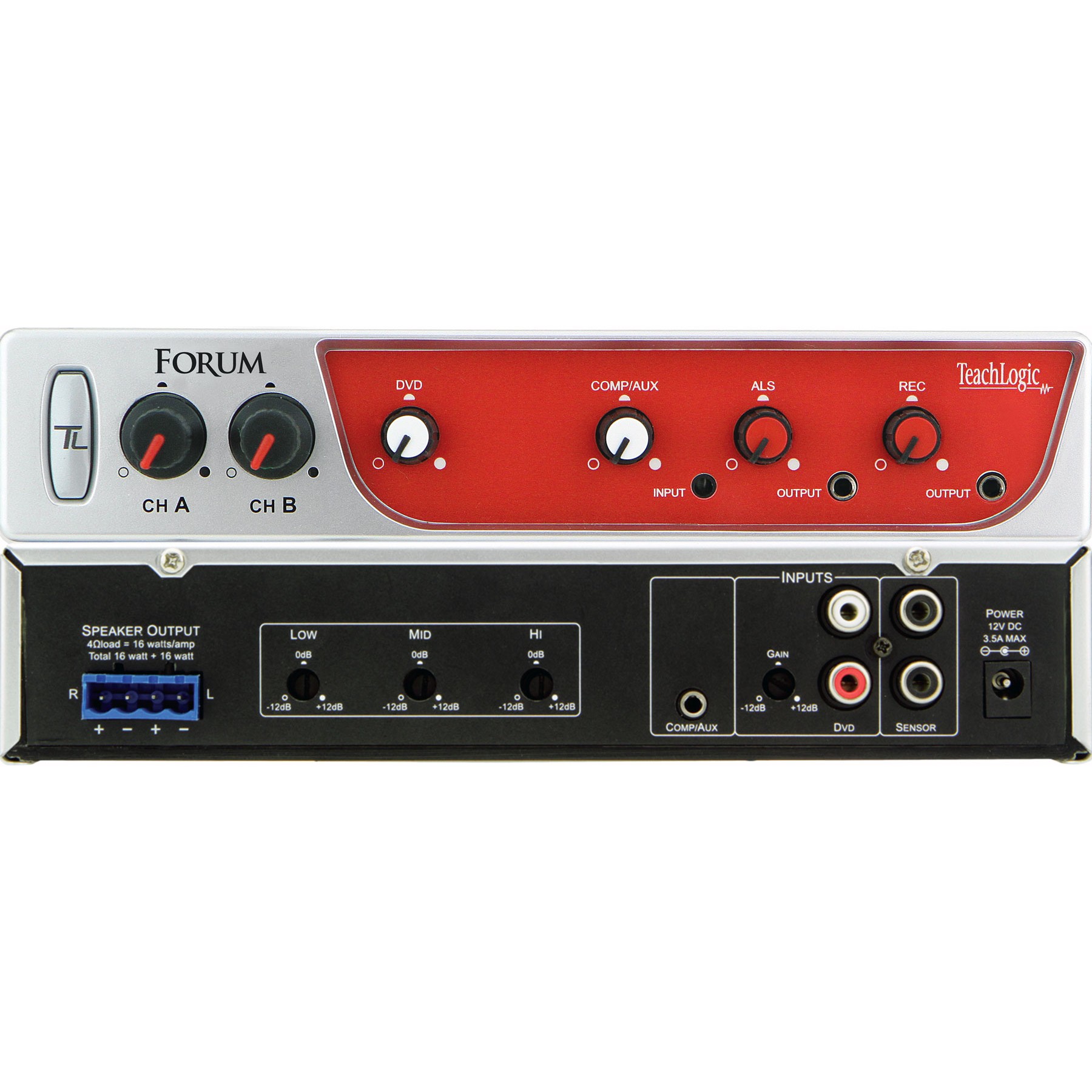

IMA-320 Forum Amplifier:

Two stereo auxiliary inputs for DVD & Computer/Aux
Additional DVD input gain, adjustable +10 dB boost
Digital Limiting
Front-panel auxiliary input (3.5 mm)
Three-band digital equalizer ± 12dB
Front Panel ALS Output for Assistive Listening system with gain control (3.5 mm)
Front Panel REC output for Lesson Capture with gain control (3.5 mm)
Remote Teacher Priority over line inputs
Power sleep mode to conserve energy
Rack or shelf/wall mounting kits available (optional)
Light Weight Aluminum cover

ICS-55 Ceiling Dome Sensor:

Easily installs on ceiling "T" bar with track bracket
Six large receiving diodes for superior infrared reception
50ft 75 ohm dual-shielded plenum-rated cable

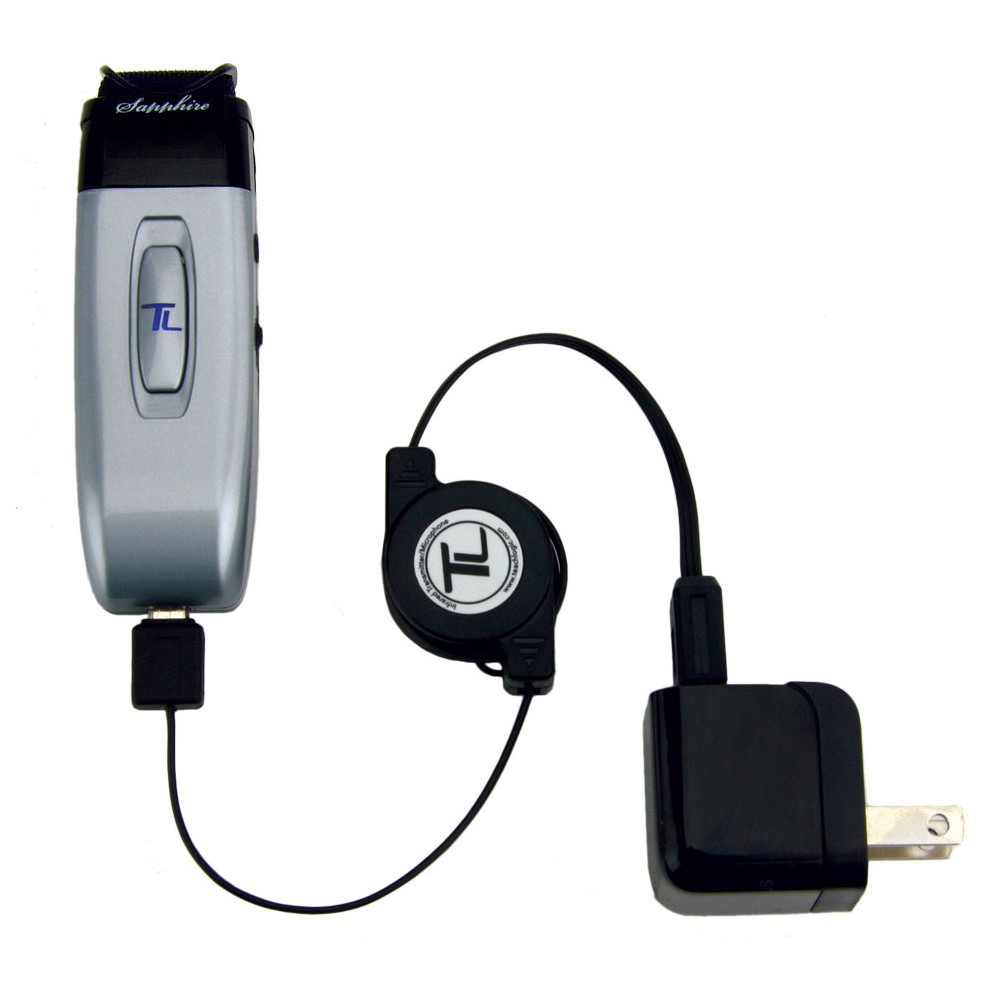

IRT-55 Sapphire Infrared Microphone:

Elegant Design
Only 1.4 oz including battery
Long life “Lithium ion” battery
Rechargeable via micro USB cable (included)
Battery level indicator

Back light under power switch

Momentary mute button, Backlight blinks in mute mode
Push “on/off” power
Channel A or B selectable
Three level mic volume switch (low, medium, high)
Auxiliary input (3.5 mm)
Low profile clip for mounting
Wear with a lanyard or directly to neckline collar with clip

DOCUMENTS

System Includes

(4) SP-2000 Wall Mount Speakers

(4) Mounting Brackets
100ft Plenum Rated 18G Speaker Wire

(1) IMA-320 Forum Amplifier
(1) ICS-55 Ceiling Dome Sensor

50ft Plenum Rated Cable

(1) IRT-55 Sapphire Infrared Microphone with Clip

(1) Microphone Lanyard
(1) Rechargeable Lithium-ion Battery
(1) BRC-15 USB Microphone Charger
