The TeachLogic Forum™ instructional audio system provides the classroom with a platform to clearly deliver all audio sources so that learning happens regardless of where the students are located. This versatile system supports 2 infrared wireless microphones, 3 classroom audio sources like a computer or TV, and 2 audio outputs for assistive listening system connection.

Description

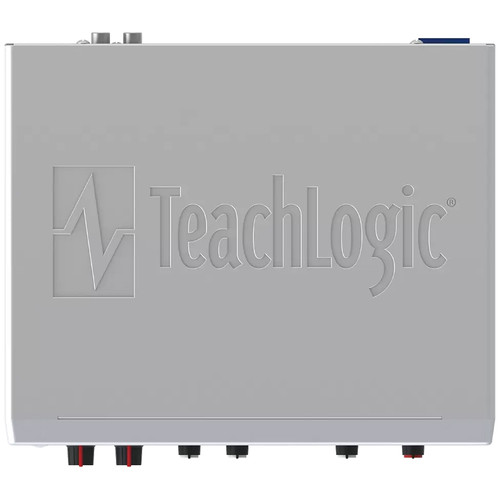

TeachLogic Forum Receiver Amplifier

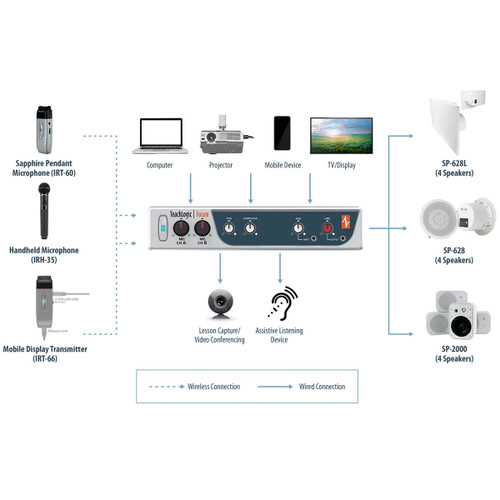

The TeachLogic Forum™ instructional audio system provides the classroom with a platform to clearly deliver all audio sources so that learning happens regardless of where the students are located. This versatile system supports 2 infrared wireless microphones, 3 classroom audio sources like a computer or TV, and 2 audio outputs for assistive listening system connection, lesson capture recording, and/or video conferencing to support hybrid learning models.

In addition to these must-have features, the internal architecture of the Forum™ includes a Digital Feedback Guard (DFG) to suppress unwanted noise, a Computer Anti-Hum Circuit to eliminate those pesky low level humming sounds computers can make, and a USB charger for correct placement of and access to the microphone charger.

A 4th audio source can be added by using the IRT-66 Mobile Display Transmitter. Now you can easily roll in a portable audiovisual cart to any classroom and instantly connect to the Forum’s speakers. No additional wires needed.

Features

  • Amplifier: digital hybrid class D
  • Two Power Amplifiers: 25 watts ea. channel, total 50 watts RMS for 4 x 8Ω loudspeakers
  • 3 Line Level Inputs, mixed w/ the two microphone inputs
  • 2 Line Level Outputs
    • Rear panel mixed output for assistive listening system and/or lesson capture with gain control (3.5 mm)
  • Hybrid Learning Compatible
    • Front panel input & output connects to host computer to synchronize classroom audio w/ video conference application
  • Digital Feedback Guard™
  • Switchable computer anti-hum circuit with ON/OFF switch
  • 3-band digital equalizer ± 10dB
  • Power sleep mode to conserve energy
  • Light weight aluminum cover
  • Teacher Priority function attenuates volume of all line inputs with button press
  • Drop-in microphone charger connection 5 VDC USB
  • Accommodates up to 3 ceiling sensors for increased microphone reception coverage and/or extra-large classrooms
  • WC-400 Wall Mounted Cabinet (optional)
  • Rack or shelf/wall mounting kits (optional)

Specifications

Dimensions (H x W x D) 1.75" (44.45 mm) x 8.5" (215.9 mm) x 7.5" (190.5 mm)
Weight 1.7 lbs (0.77 kg)
