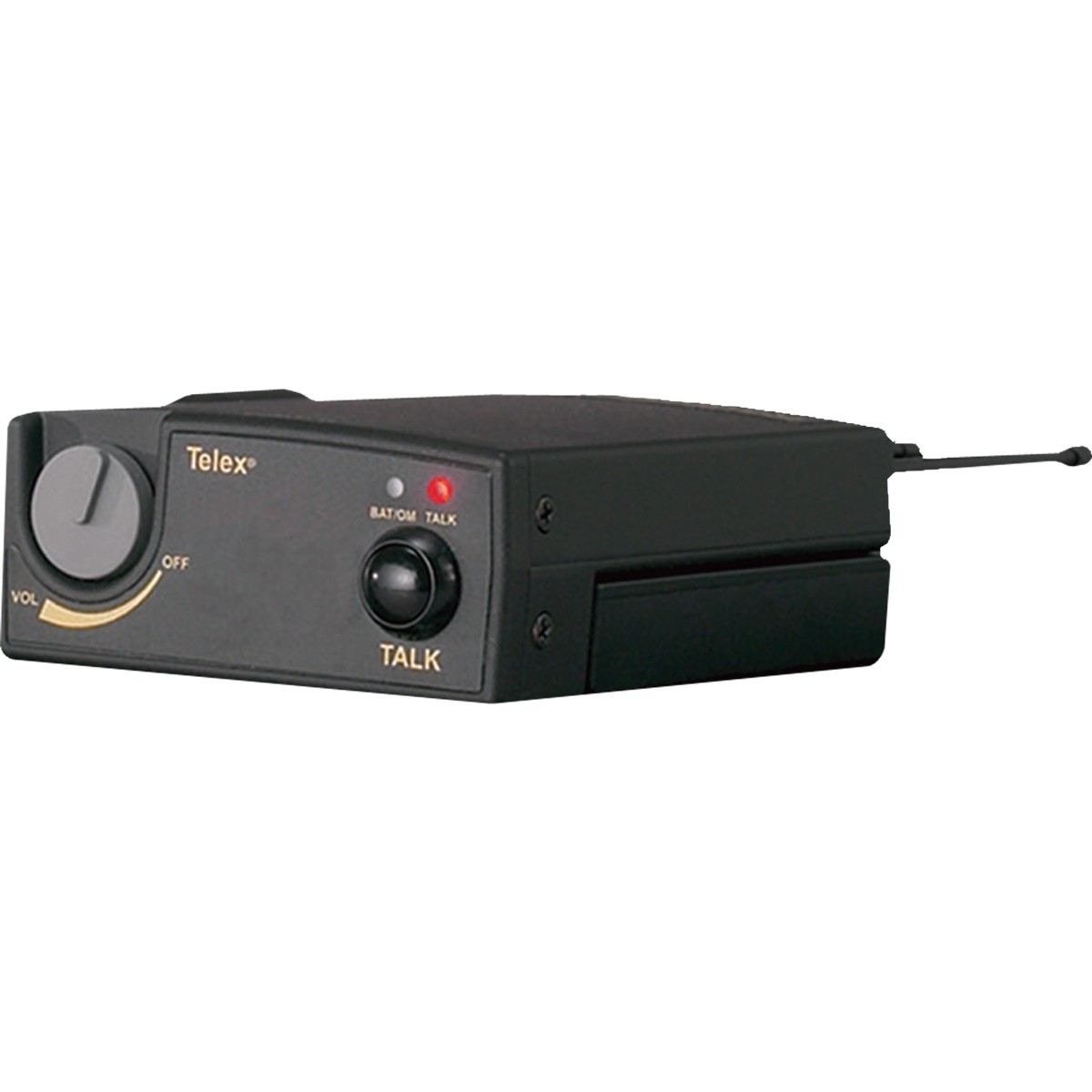

The Telex TR-700 a single-channel UHF wireless beltpack transceiver. The TR-700 is contained in a weather and shock resistant die cast magnesium case.

Bat/Overmod Light (BAT/OM)

The light will flash once when the unit is turned on if the battery is good. If the light stays on, the battery is low. If the light does not flash, the battery is dead. A normal microphone gain setting will cause the LED to flash at the beginning of most words at normal speech levels. If the gain is too high, the LED will be red during the complete word at normal speech levels.

On/Off Volume Control

Turns the beltpack power on and controls headset volume.

Talk Button

Press to enable the audio path from the local headset microphone. The talk will turn red when enabled. A quick press and release latches the talk function unless latching has been disabled in programming. Holding the button down for over ½ second will cause the audio path to be enabled only for as long as the button is held. If the talk function is latched on, pressing the talk button again will turn it off.

Talk Light

Will turn red when enabled by associated TALK or WTA button.

• Beltpack design
• On/Off volume control
• Talk button
• Bat/Overmod light
• Talk light
• Frequency-agile
